WM, 551419 Removing And Installing Operating Cable For Front Lid Lock: Notes
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing release mechanism to upper part of lock carrier |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

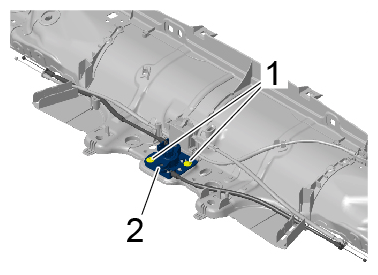

Release mechanism |
|
|
|
|
|
