WM, 552237 Disassembling And Assembling Front Lid: Notes
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

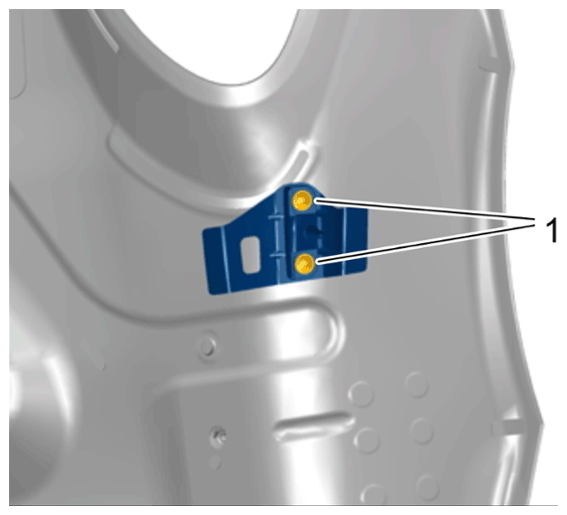

| Screws securing guide plate to front lid |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide plate |
|
|
|
|
|

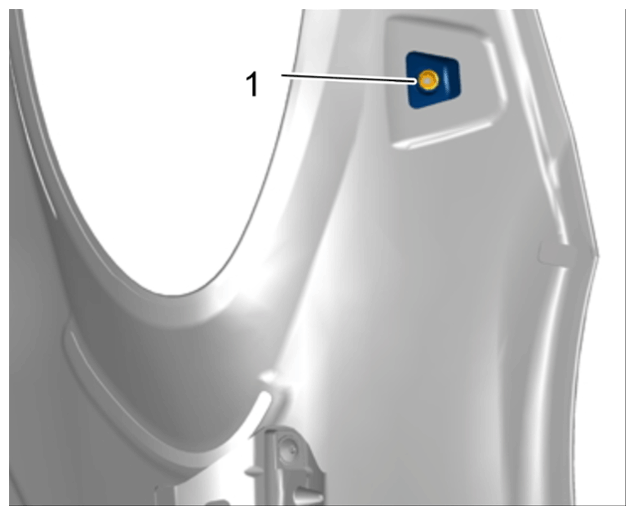

| Nut securing rubber stop to lid front |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rubber stops |
|
|
|
|
|
