Removing Spring Strut Mount

  1. Remove wing bracket.

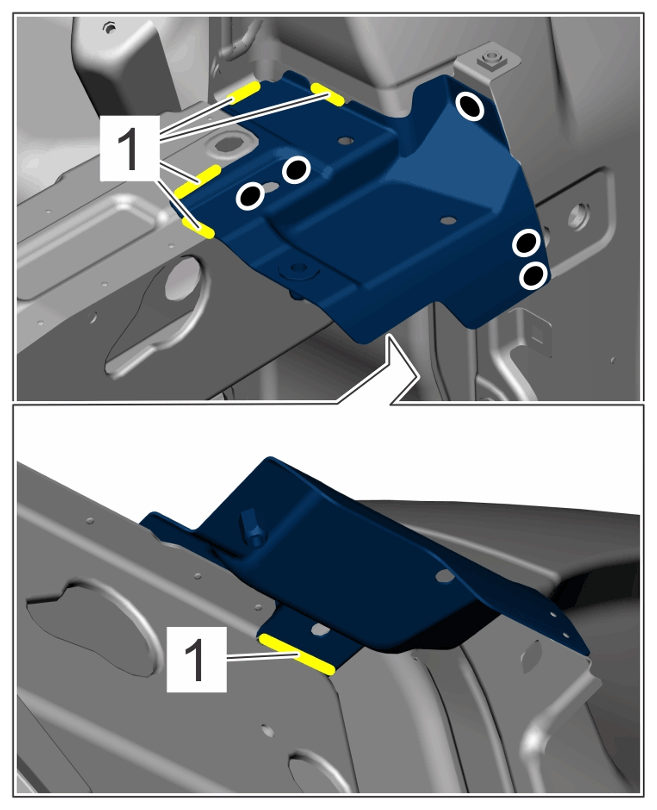

    G16142436

    Wing bracket

    1. 1.1 Drill out spot welds using > VAS 882 001 - spot-weld remover  .
    2. 1.2 Grind down welded seams -1-  .
  2. Loosen the hidden weld point.

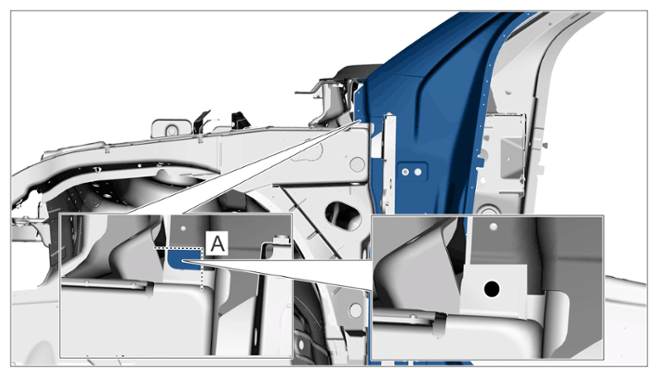

    G16142437

    Notch

    1. 2.1 Cut out notch -LHD vehicle -  .
    2. 2.2 Drill out spot-weld using > VAS 882 001 - spot-weld remover  .
  3. Remove reinforcements.

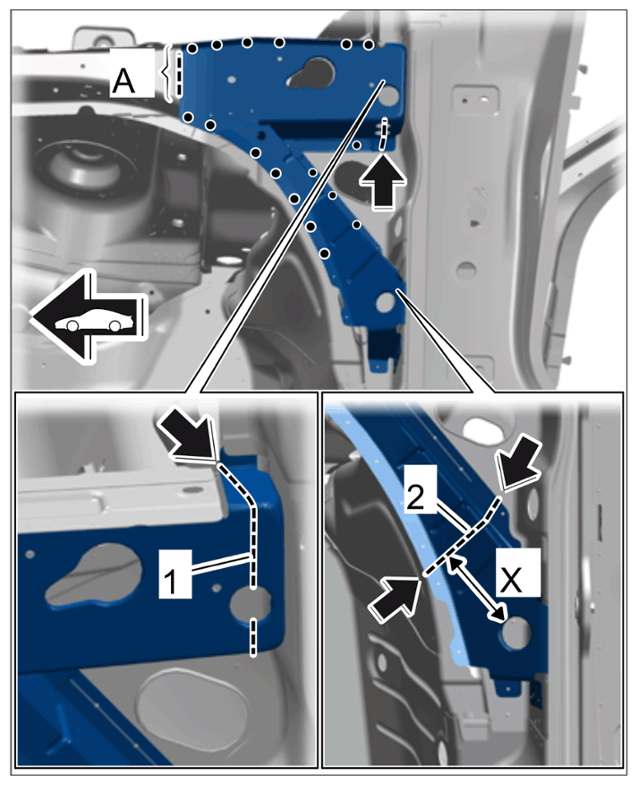

    G16142438

    Reinforcements

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 3.1 Drill out spotwelds using > VAS 882 001 - spotweld remover  .
    2. 3.2 Make a rough cut -1-  .
    3. 3.3 Mark and make cut -2-  .

      > Distance 80 mm

    4. 3.4 Grind down welded seam -A-  .

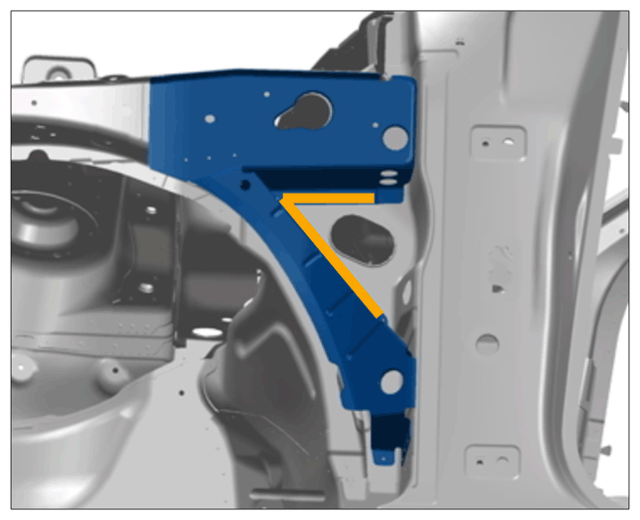

  4. Heat marked bonding surface using > V.A.G 1416 - hot-air blower  .
    G16142439

    Reinforcements

  5. Remove reinforcements.
  6. Remove remaining piece of upper reinforcement -1-  .

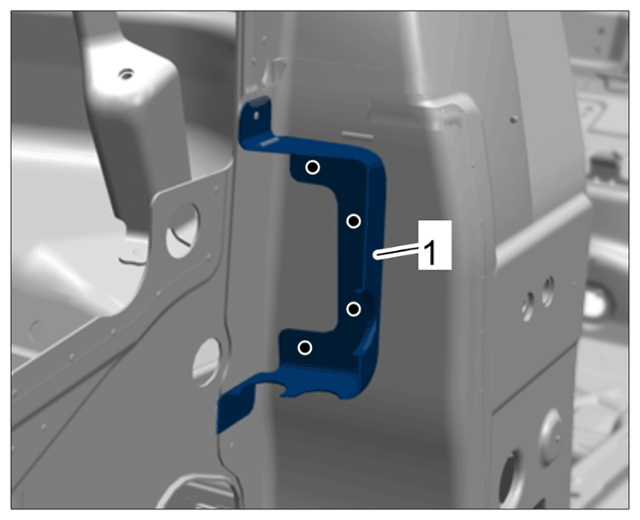

    G16142440

    Remaining piece

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 6.1 Drill out spotwelds using > VAS 882 001 - spotweld remover  .
  7. Drill out weld points on the wiper holder or grind them using a belt sander.

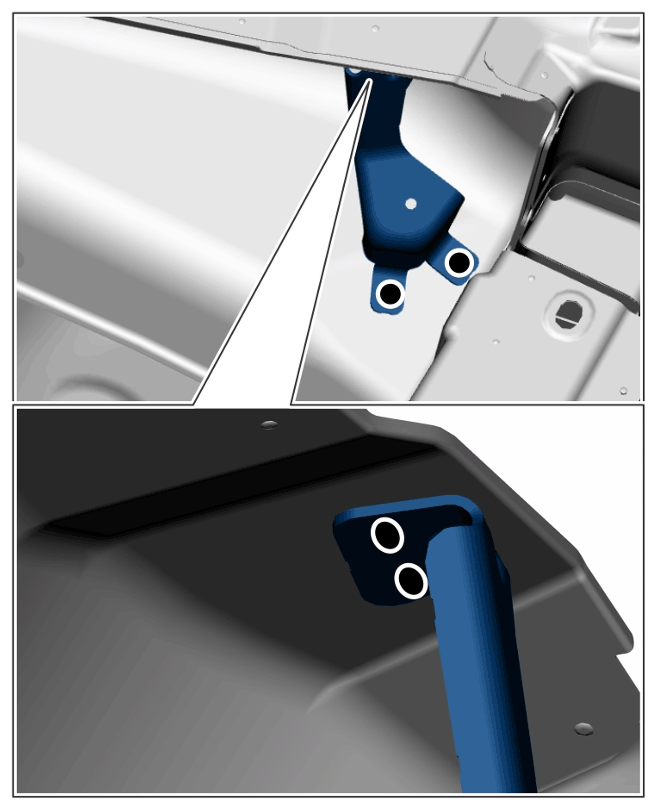

    G16142441

    Wiper holder

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

  8. Drill out spotwelds using > VAS 882 001 - spotweld remover  .

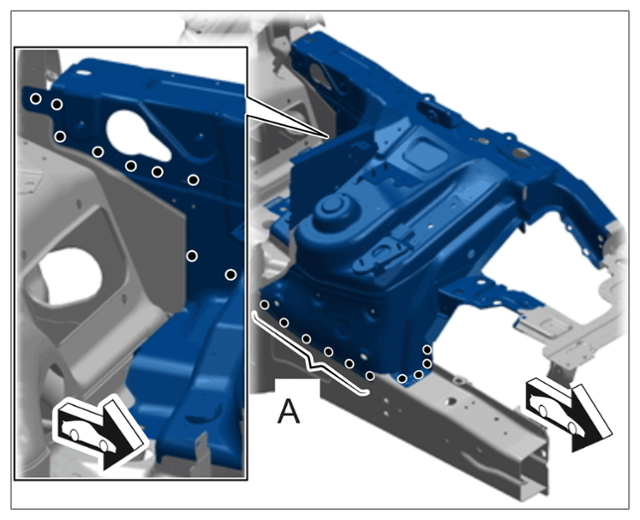

    G16142442

    Spring strut mount

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

  9. Drill out spotwelds using a > VAS 882 001 - spotweld remover  and grind down welded seams -Arrows-  .

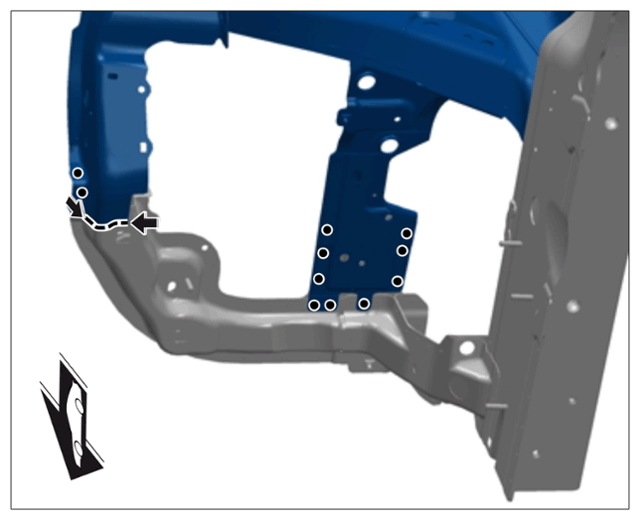

    G16142443

    Spring strut mount

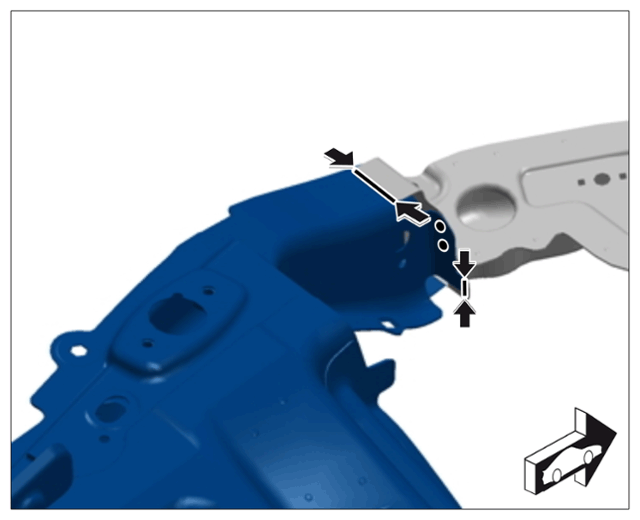

    G16142444

    Spring strut mount

  10. Drill out spotwelds -A-  from the inside.

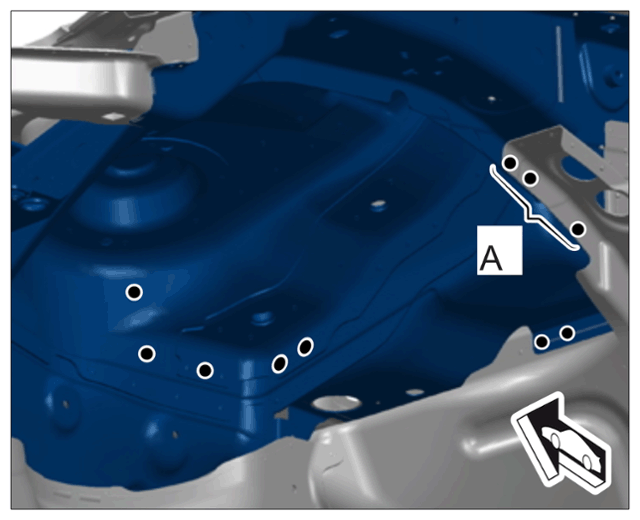

    G16142445

    Spring strut mount

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

  11. Drill out spotwelds on the lower part of the plenum panel using a > VAS 882 001 - spotweld remover  .
    G16142446

    Lower part of plenum panel

  12. Heat marked bonding surfaces using > V.A.G 1416 - hot-air blower  .

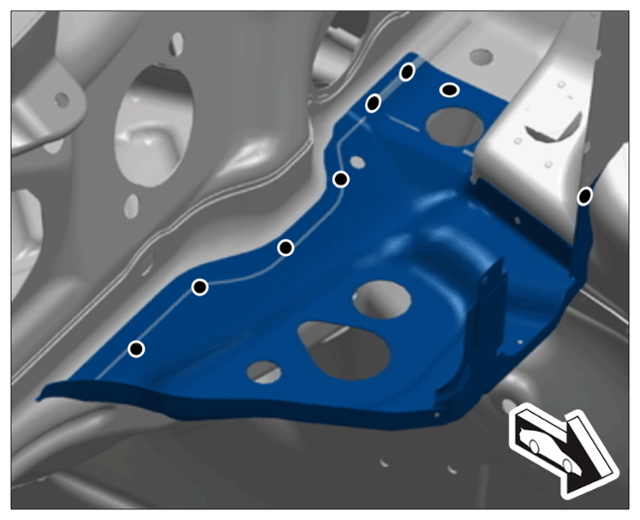

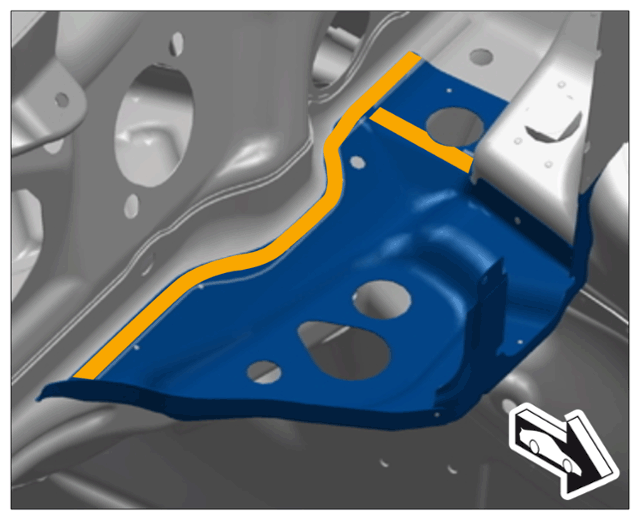

    G16142447

    Lower part of plenum panel

  13. Remove lower part of plenum panel.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

  14. Drill out spotwelds -A-  using > VAS 882 001 - spot-weld breaker  .

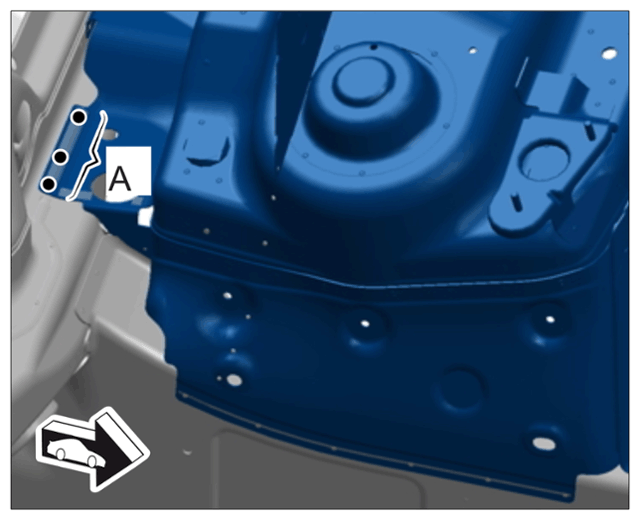

    G16142448

    Spring strut mount

  15. Heat marked bonding surfaces using > V.A.G 1416 - hot-air blower  .

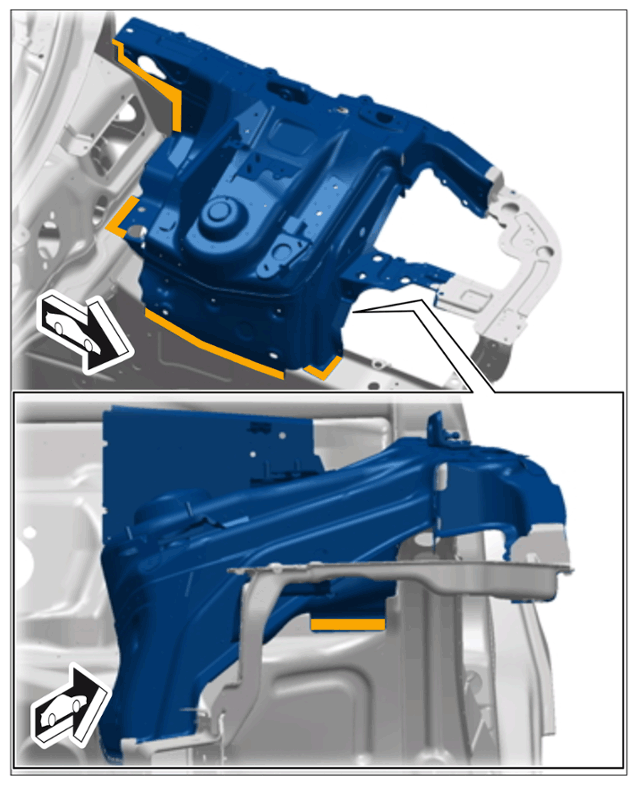

    G16142449

    Spring strut mount

  16. Remove spring strut mount.
