Preparing Spring Strut Mount For Installation

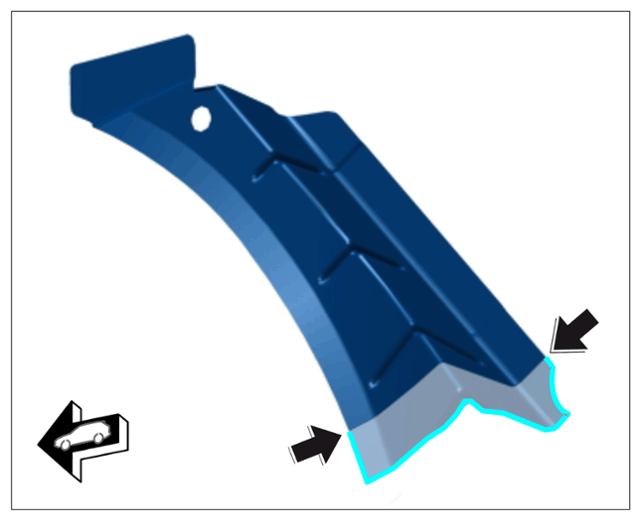

1. Cut reinforcement in area -Arrows-  leaving an overlap of 30 mm over the remaining piece.

   Reinforcement

2. Fit in and secure reinforcements.

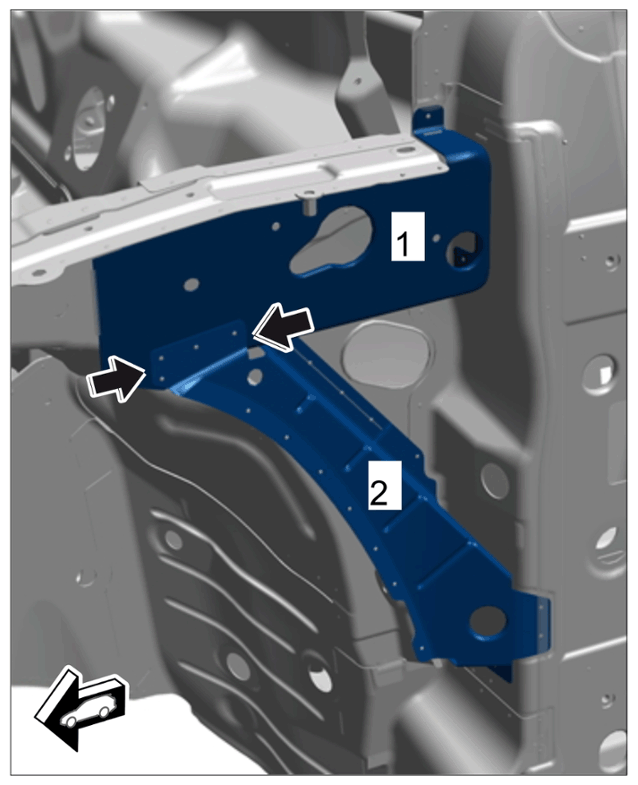

   1. 2.1 Tack-weld upper part -1-  and lower part -2-  of reinforcement -Arrows-  .
3. Remove reinforcements.

   Reinforcements

   Reinforcements

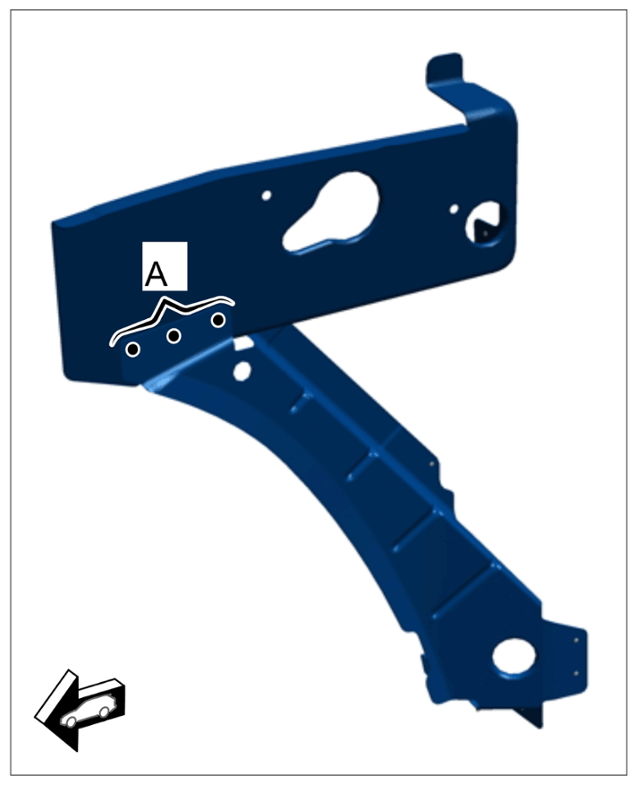

   1. 3.1 Resistance spot-weld the marked area -LHD vehicle -  .

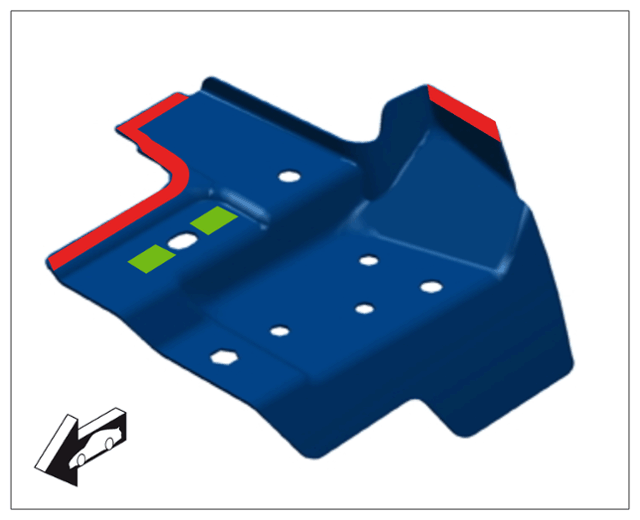

4. Prepare wing bracket for welding.

   Wing bracket

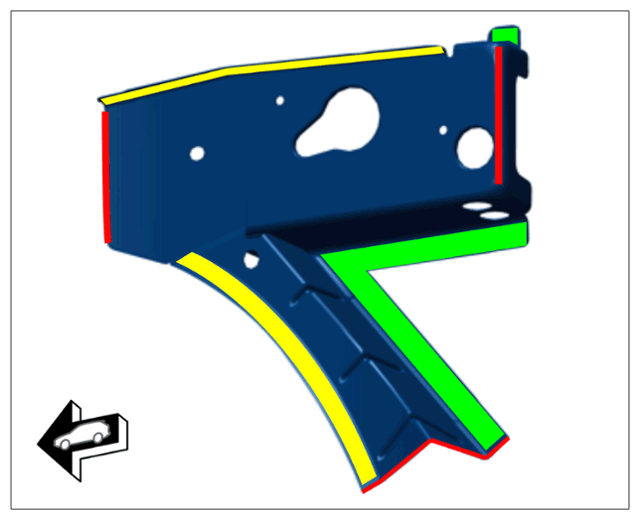

5. Prepare reinforcement for bonding and welding.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Reinforcements

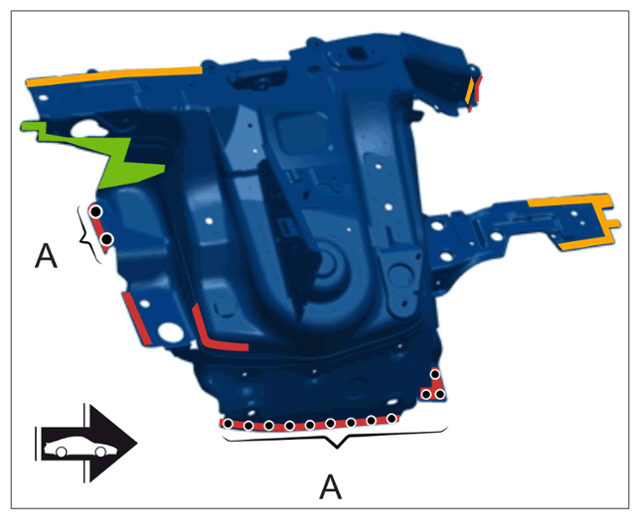

6. Drill holes for plug-welding in the marked areas -LHD vehicle -  on the spring strut mount using a drill bit with a diameter of > Diameter 8.0 mm  .

   Spring strut mount

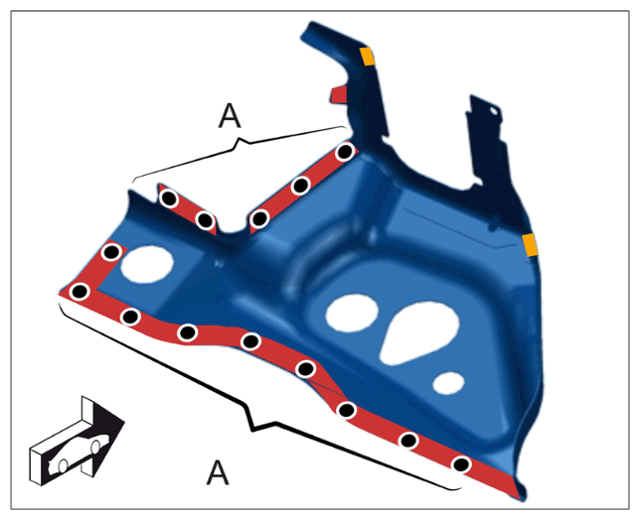

7. Drill holes for plug-welding in the marked areas -LHD vehicle -  of the lower part of the plenum panel using a > diameter of 8.0 mm  .

   Lower part of plenum panel

   Orange	Resistance spot-welding
   Green	Resistance spot-welding + bonding
   Red	Plug-welding/apply a full weld using inert gas without bonding

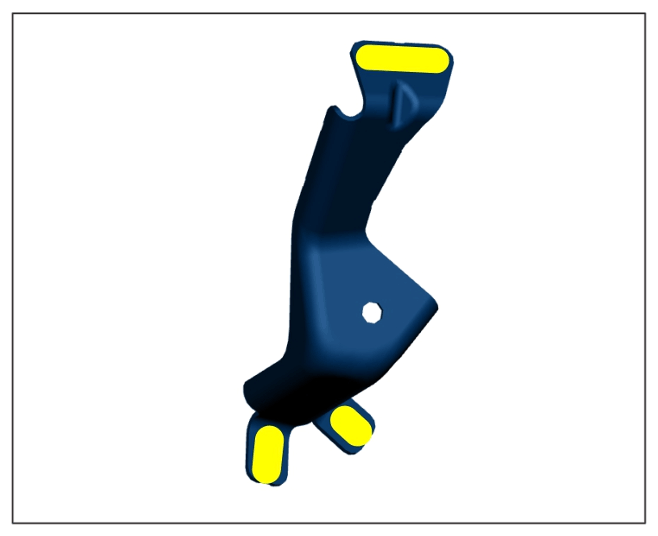

8. Prepare wiper holders for resistance spot-welding on the marked surfaces.

Wiper holder
