High Speed Operation: Notes

For high speed operation (full throttle), additional fuel is metered through the high speed jet, mixed with air metered through high speed air bleed and high speed mixture jet, to air stream in booster venturi.

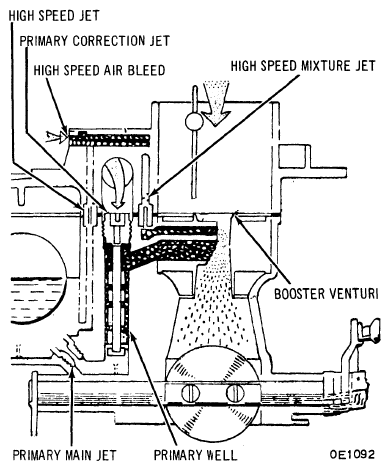

Fig 1: Cruising And High Speed Circuits

Courtesy of AMERICAN MOTORS/RENAULT CORP.
