Starters - PARIS RHONE: Overhaul: Reassembly

Clean all parts and coat the sliding surface of armature shaft, splines, and bushings with multipurpose grease. Reassemble in the reverse order of disassembly while noting the following:

1. After completing reassembly, disconnect the field terminal from solenoid. Connect solenoid to battery and measure clearance of pinion gear to stop collar. Clearance should be 0.02 - 0.099".
2. If clearance is not within limits, adjust by screwing the plunger fork or adjusting screw in or out to change clearance. Solenoid must be removed to adjust plunger fork (if equipped).

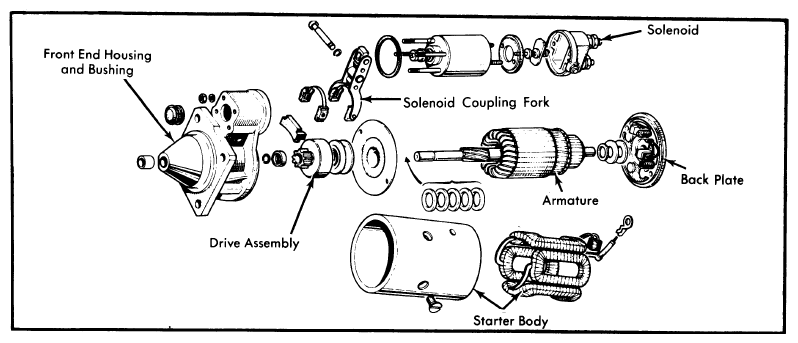

   Fig 1: Disassembled View of Paris Rhone Starter

   Courtesy of AMERICAN MOTORS/RENAULT CORP.
