Distributors & Ignition Systems - DUCELLIER Electronic Ignition: Description

The Ducellier electronic ignition system consists of a Ducellier breakerless distributor, a Delco-Remy ignition coil, an electronic control unit, ignition switch and necessary wiring.

The distributor contains both centrifugal and vacuum advance mechanisms. Dual pick-up versions (Le Car only) have main and secondary impulse sender coils (pick-up coils). Single pick-up versions (18i only) have a single impulse sender (pick-up coil). Distributor also contains trigger (reluctor), seal, rotor and cap.

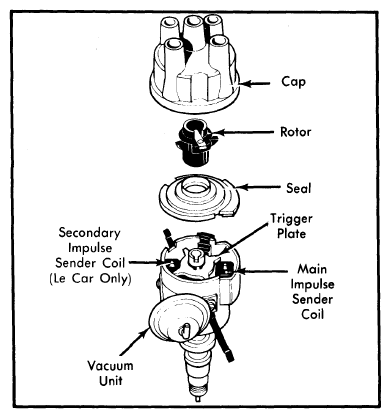

Fig 1: Exploded View of Le Car Distributor (18i Has Main Impulse Sender Coil Only)

Courtesy of NOT AVAILABLE

The ignition coil and electronic control unit are mounted to a common support that provides both good grounding and cooling of the electronic control unit. See Fig 2. Silicone grease, which comes with each electronic control unit, is applied between the unit and support to provide improved heat transfer. Since both units are grounded through the common support base, all mounting bolts should be snug.

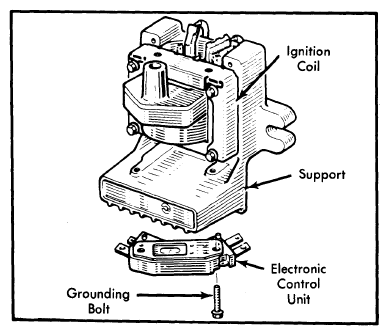

Fig 2: Ignition Coil and Electronic Control Unit Assembly

Courtesy of NOT AVAILABLE

The ignition coil is encased in epoxy resin instead of oil. The electronic control unit receives, amplifies and sends electronic signals to provide proper spark timing.
