Unloader Adjustment

With throttle fully open and against stop, check clearance between the bottom of choke plate and carburetor body. Adjust, if necessary, by bending tab on fast idle cam (see specifications ).

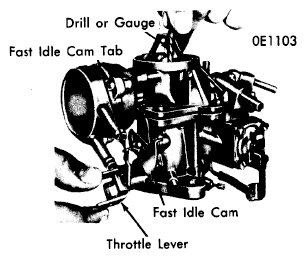

Fig 1: UNLOADER ADJUSTMENT
G09309790Courtesy of NOT AVAILABLE
