Rear Suspension: Description

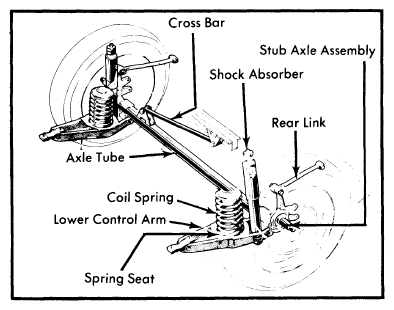

Tube type rear axle with coil springs. Rear axle is straight tube with stub axles press fitted into the ends. Axle is mounted to body by two lower control arms, which are connected at rear to the axle tube and to the body at front. Rear links are also used which mount rearward from stub axle assembly to body. A cross bar is mounted from right side of axle and attaches to body support in center. Coil springs are mounted between lower control arms and body. Telescopic shock absorbers are used which are attached between lower control arms and body.
