Wiring Diagrams: Wiring Diagram

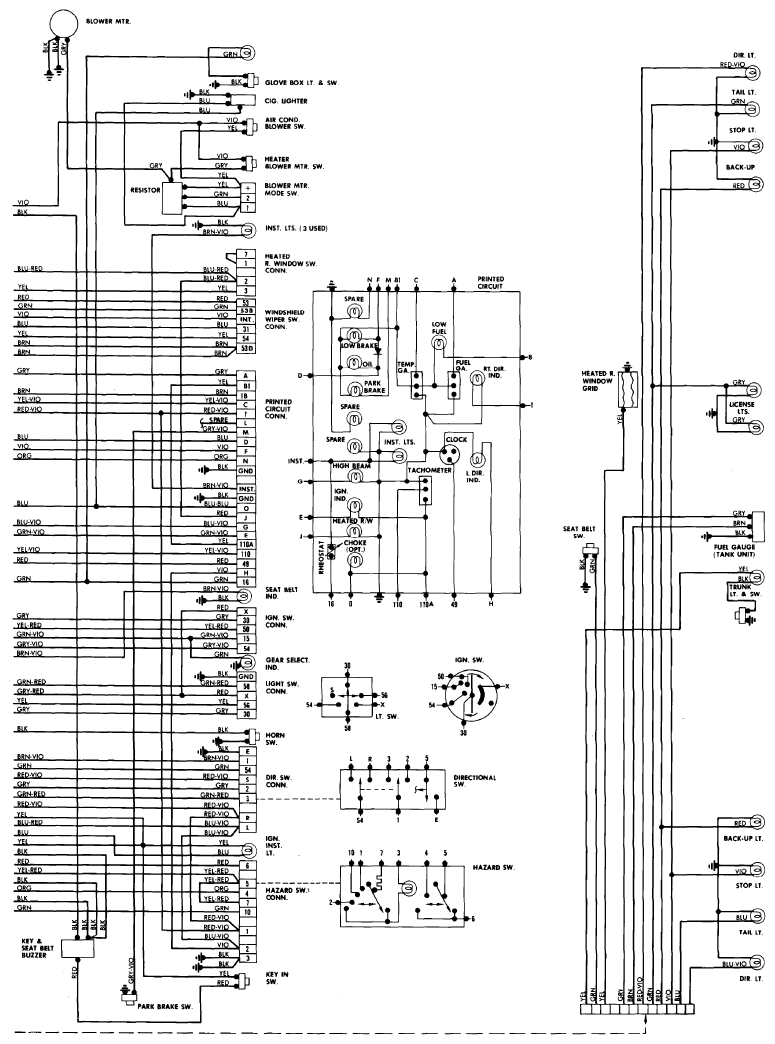

Fig 1: Wiring Diagram - 99 & 900 (1 of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

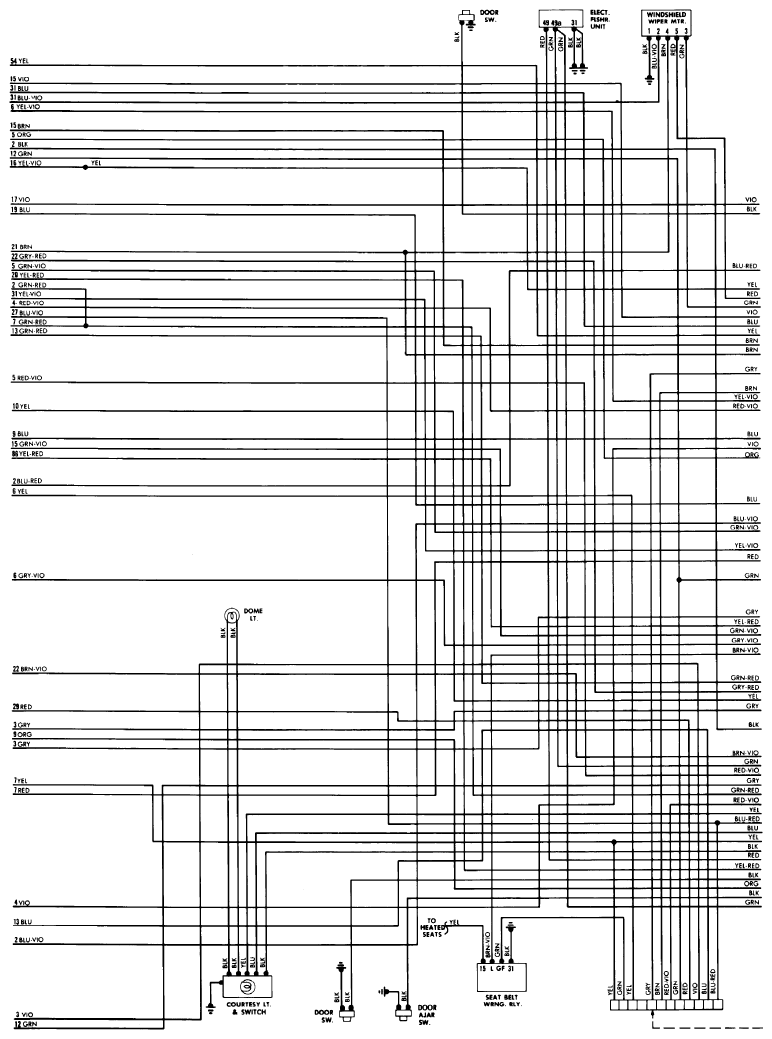

Fig 2: Wiring Diagram - 99 & 900 (2 of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

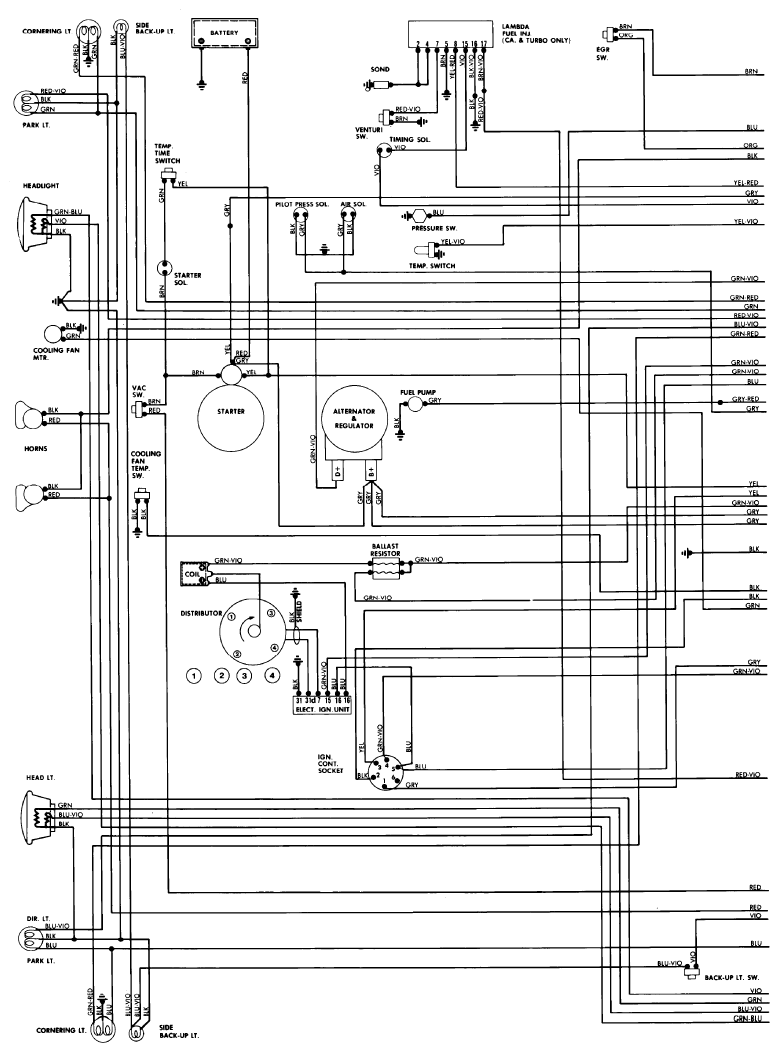

Fig 3: Wiring Diagram - 99 & 900 (3 of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

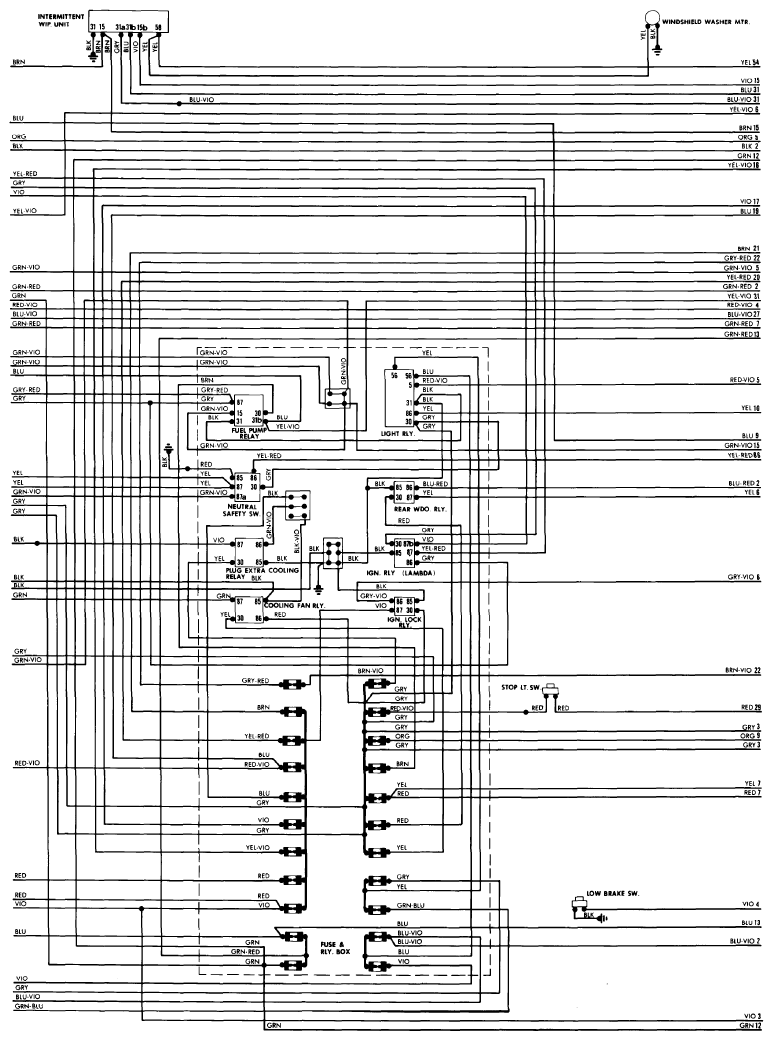

Fig 4: Wiring Diagram - 99 & 900 (4 of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
