Fuel Injection System - BOSCH Cis (Lambda): Wiring Diagram

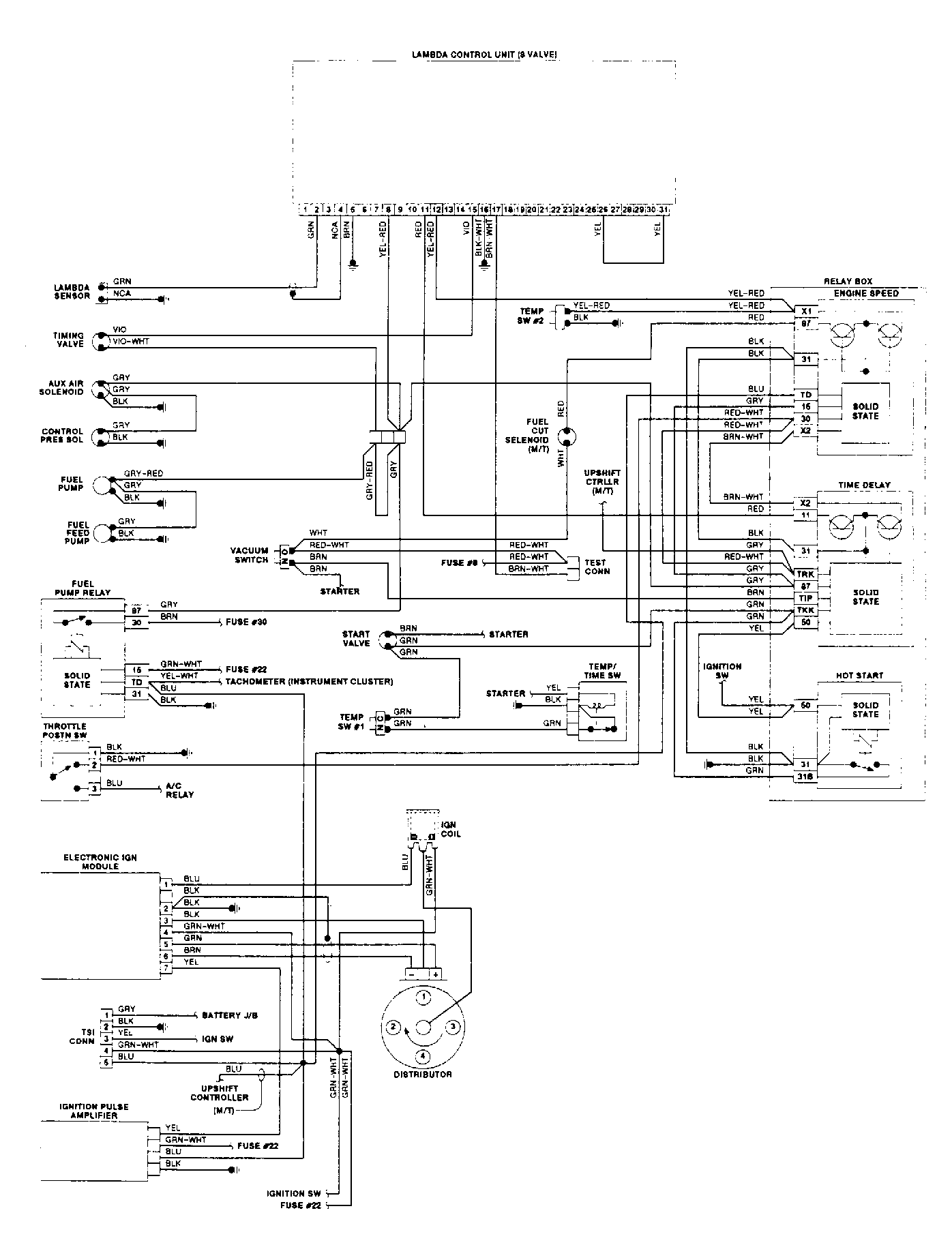

Fig 1: CIS (Lambda) Wiring Diagram (8-Valve Engine)
G93400
