Wiring Diagrams

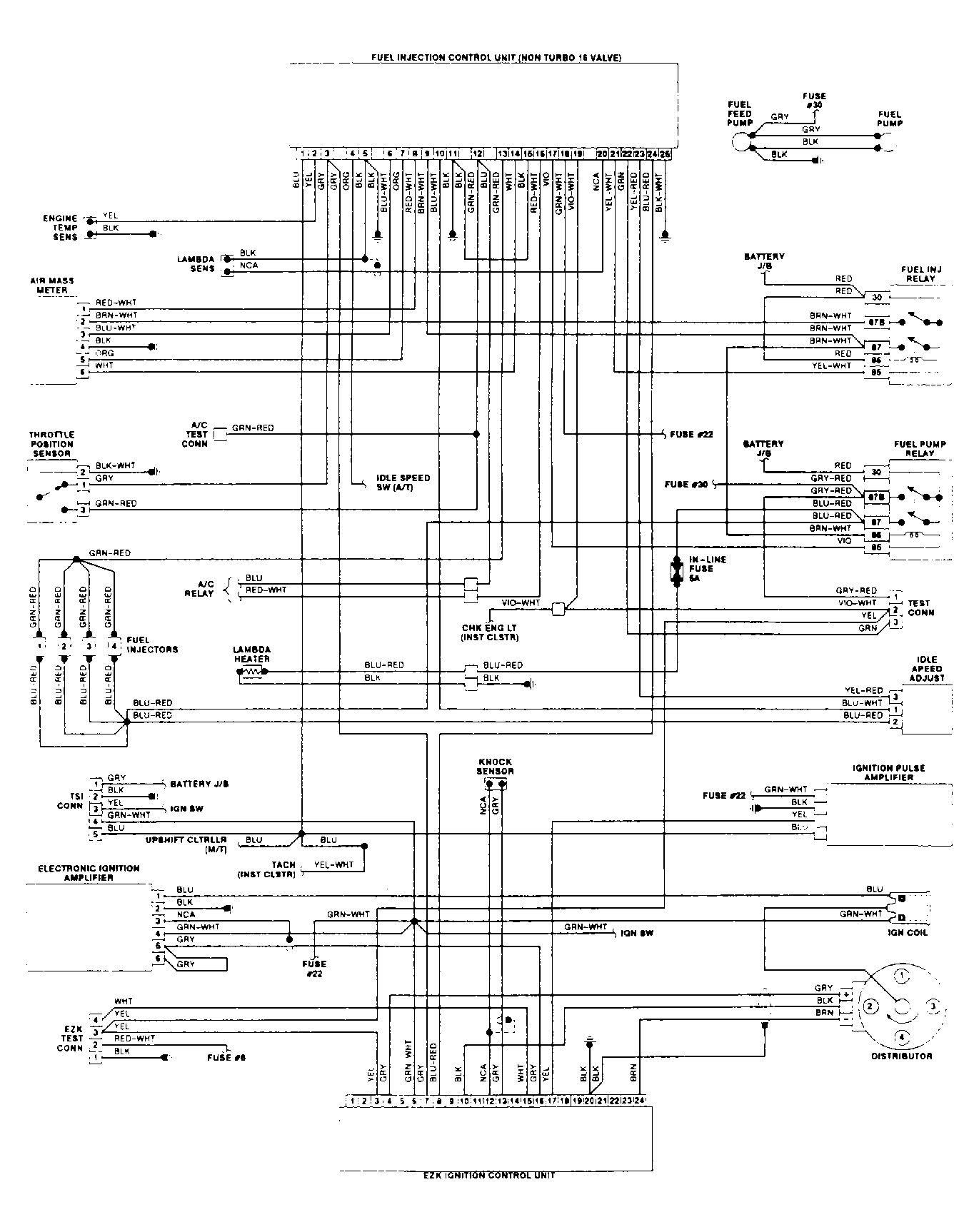

Fig 1: LH-Jetronic Wiring Diagram (900 Series - Non-Turbo)

G93438

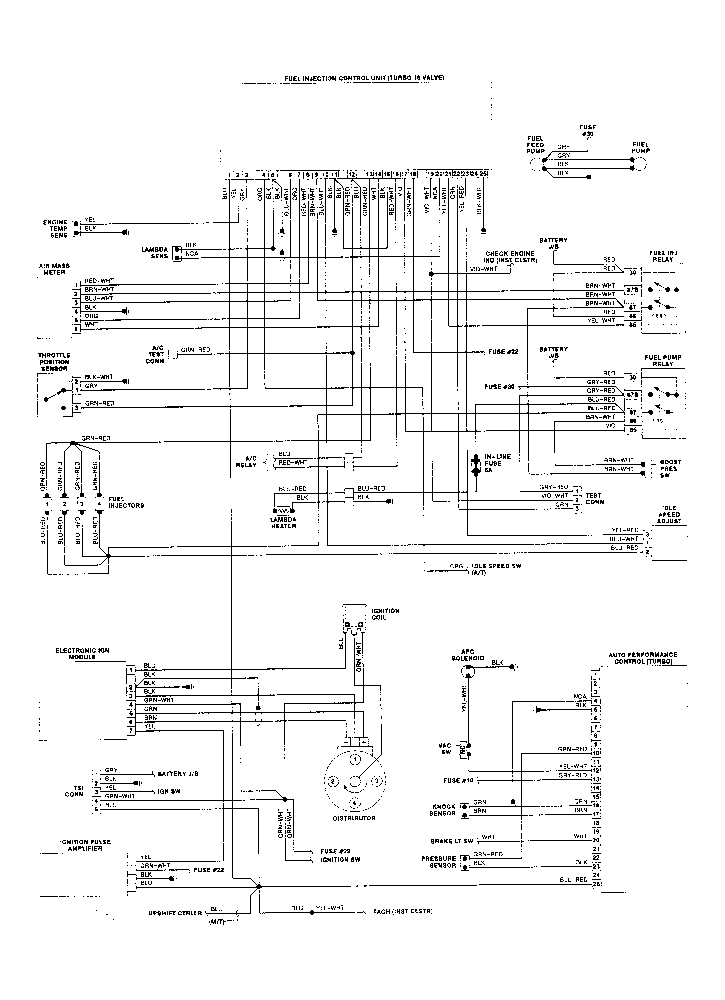

Fig 2: LH-Jetronic Wiring Diagram (900 Series - Turbo)

G93439

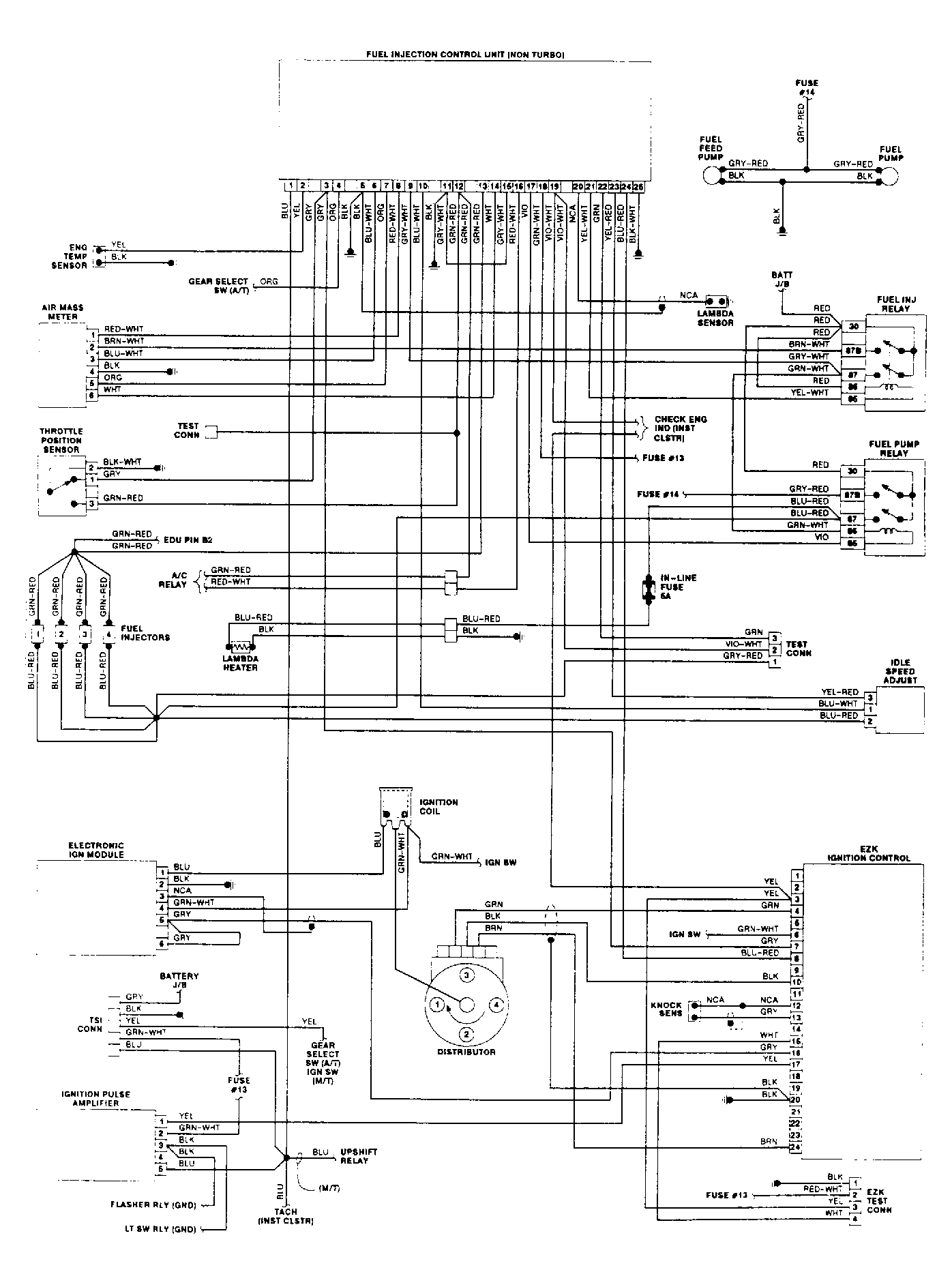

Fig 3: LH-Jetronic Wiring Diagram (9000 Series - Non-Turbo)

G93440

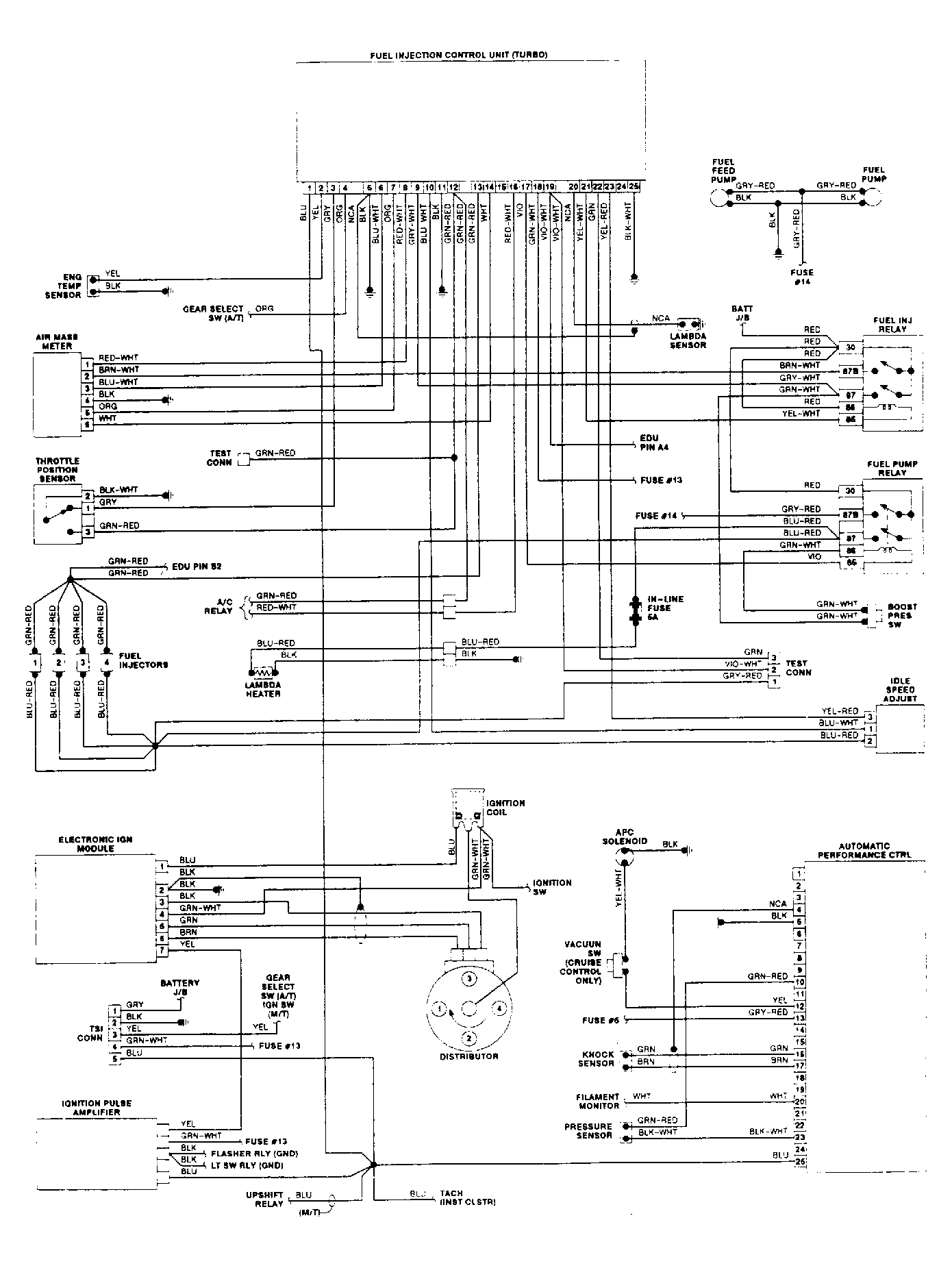

Fig 4: LH-Jetronic Wiring Diagram (9000 Series - Turbo)

G93441
