Fault Codes (Using ISAT Scan Tester)

NOTE: Lambda signal referred to in code charts is Oxygen (O2) sensor signal.

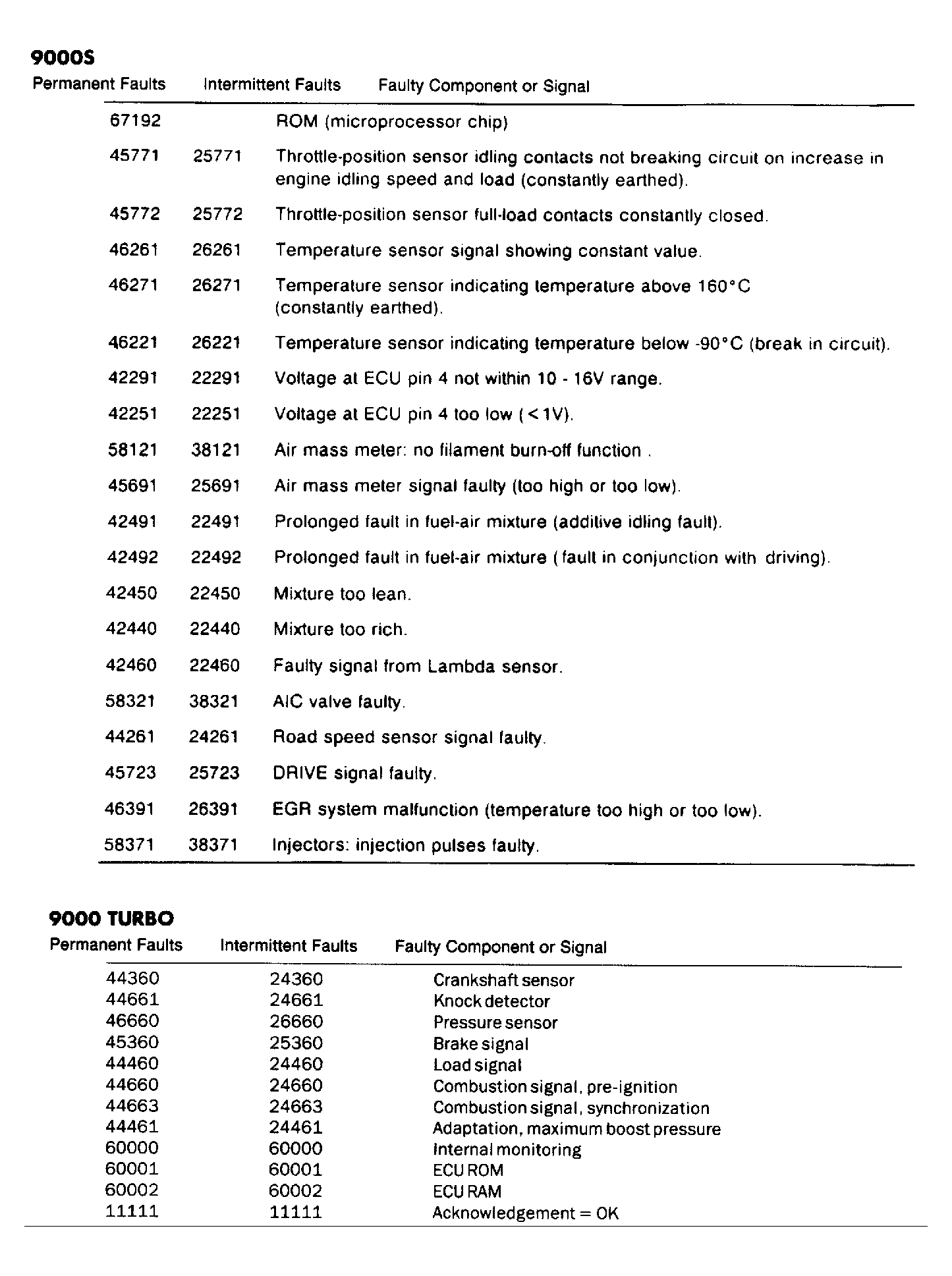

Fig 1: 9000S & 9000 Turbo Diagnostic Charts (For ISAT Tester)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
