Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Fuse Panel |
In glove box. |
| Fuse/Relay Blocks |
| ABS |
Behind glove box. |

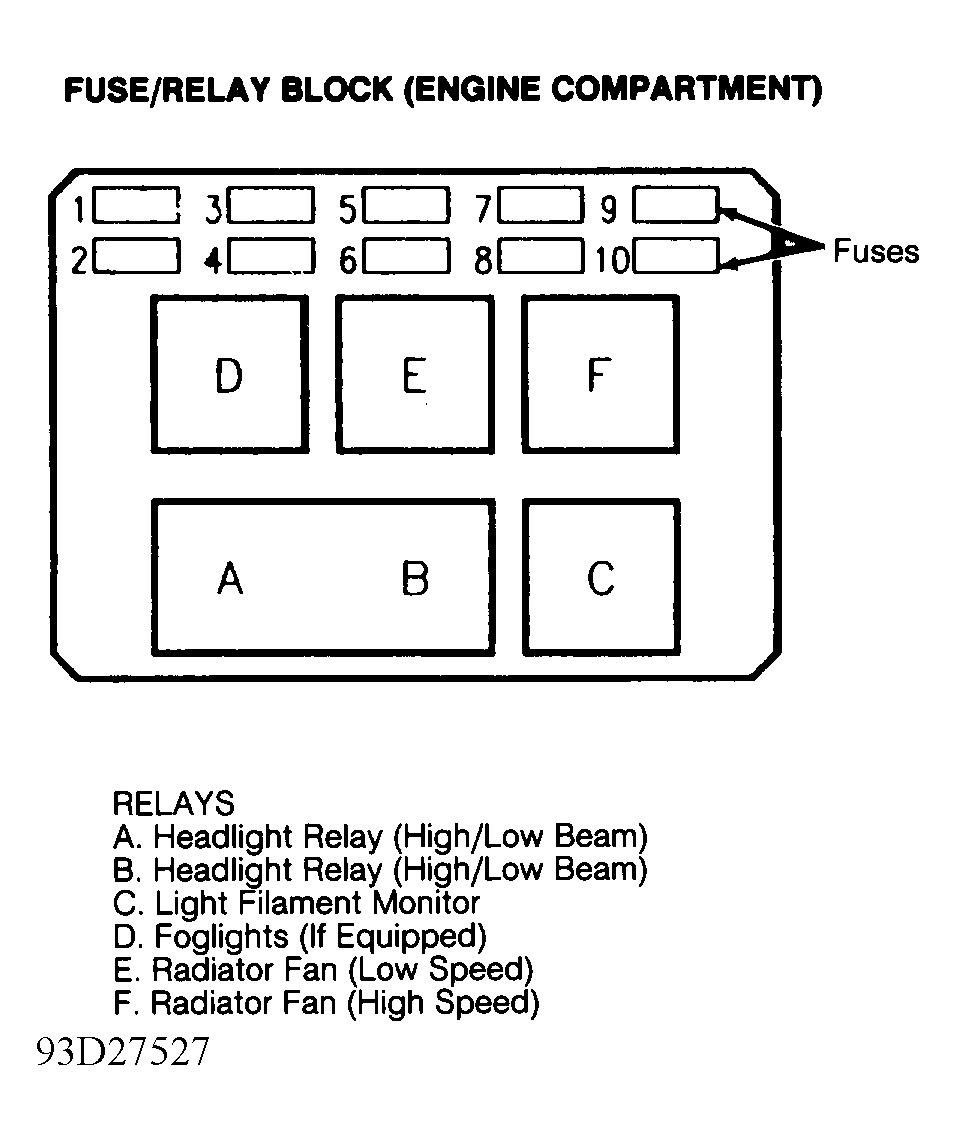

| Engine Compartment |
On left front inner fender panel. See Figure
. |

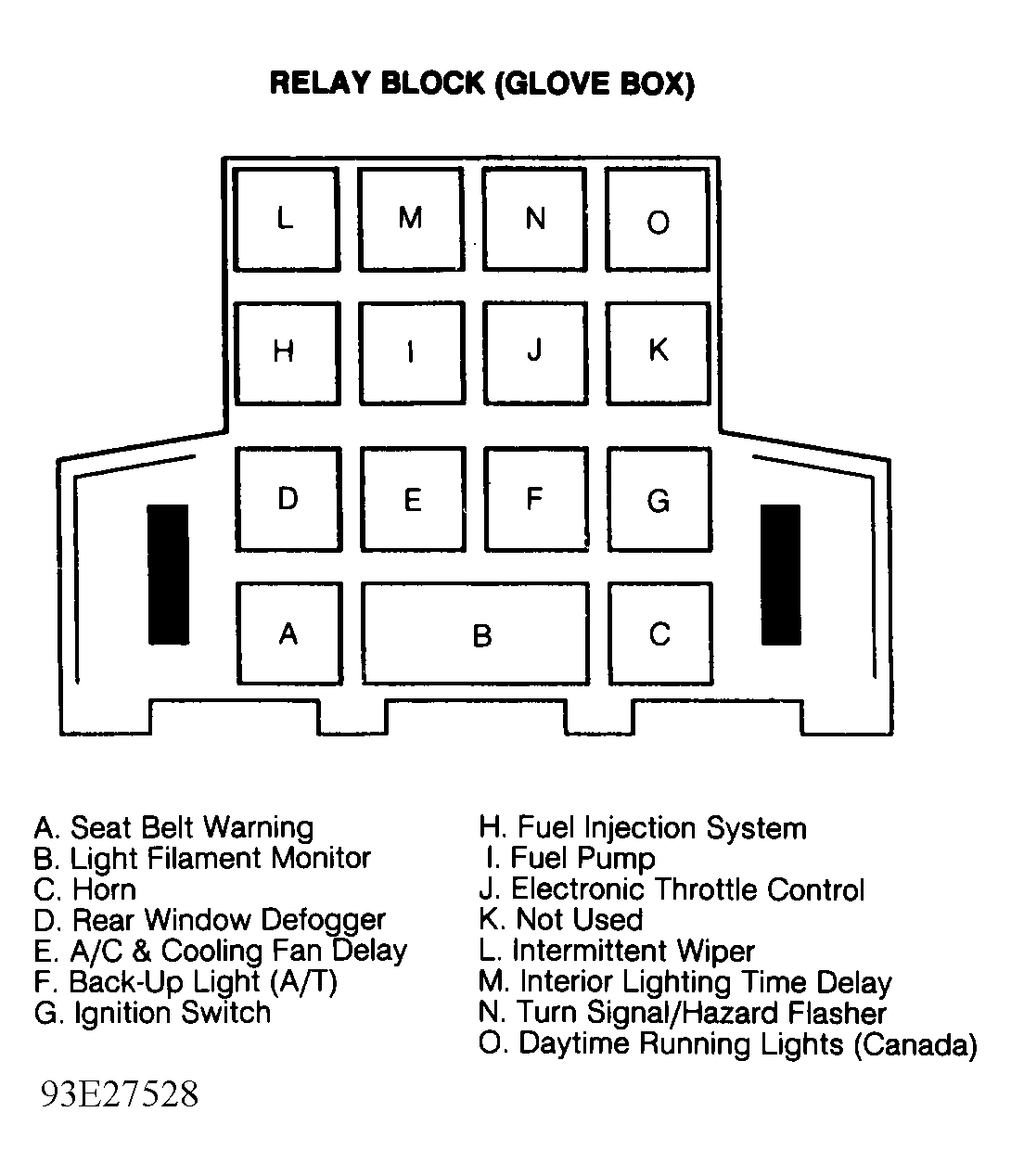

| Relay Block |
In glove box, on right side of dash. See Figure
. |
