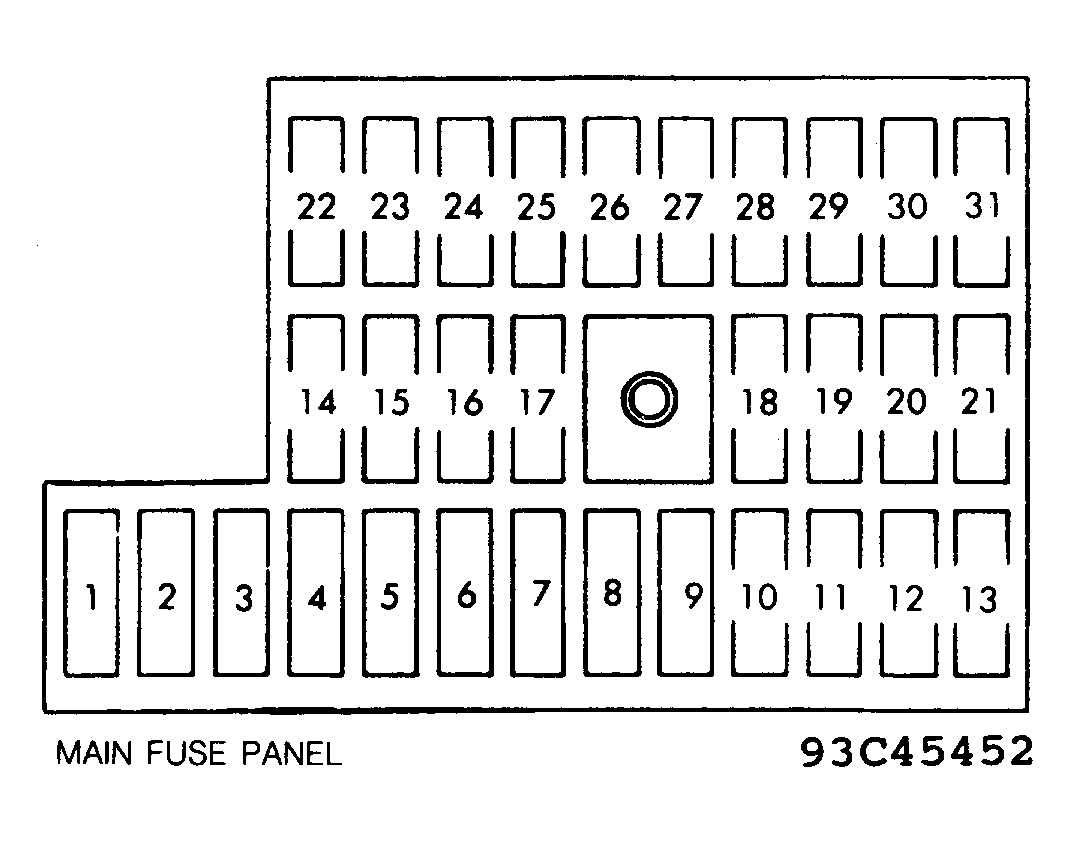

Main Fuse Panel Identification
Courtesy of SAAB-SCANIA OF AMERICA INC.
- 1 - 10 Amp
Lambda Sensor
- 2 - Blank
- 3 - 15 Amp (1989-93)
Ignition System
- 4 - Blank
- 5 - 15 Amp
Seat Belt Warning Lights
- 6 - 30 Amp
A/C System
- 7 - 15 Amp
Turn Signal Indicators, Tachometer, Alternator, Oil Pressure Warning Lights, Shift-Up Light (1992-93), CHECK Engine/SRS Lights (1993)
- 8 - 10 Amp
Electrically Adjusted Rear-View Mirrors, Cruise Control, Headlight Wipers (1993)
- 9 - 30 Amp
Ventilation Fan
- 10 - 10 Amp
APC Boost Pressure System
- 11 - Blank
- 12 - Blank
- 13 - 20 Amp
- 13 - 10 Amp (1993)
Back-Up Lights, Cigarette Lighter, Seat Belt & Alternator Warning Lights
- 14 - 15 Amp
Right High Beam Headlight
- 15 - 15 Amp
Left High Beam Headlight, High Beam Indicator
- 16 - 15 Amp
Right Low Beam Headlight
- 17 - 15 Amp
Left Low Beam Headlight
- 18 - 10 Amp
Right Side Parking & Taillights, License Plate Light
- 19 - 10 Amp
Left Side Parking & Taillights
- 20 - Blank
- 21 - 15 Amp
Foglights
- 22 - 10 Amp
Fuel System & Gauge, Temp Gauge, Brake Warning Lights, ABS, Fuel Reserve Warning Light (1992-93)
- 23 - 10 Amp
Instrument Panel Lighting, Glove Box & Ashtray Lights (1992-93)
- 24 - Blank
- 25 - 30 Amp
Radiator Cooling Fan
- 26 - 25 Amp
Horn
- 27 - 15 Amp
Hazard Warning Lights
- 28 - 15 Amp
Clock
- 29 - Blank
- 30 - 20 Amp
Fuel Pumps
- 31 - 15/5 Amp
Brakelights/Oxygen Sensor Wire
