Front Suspension: Description

The 900 Series uses upper and lower control arm front suspension with double-acting shock absorbers. Coil spring is mounted between upper control arm and wheel housing. See Fig 1.

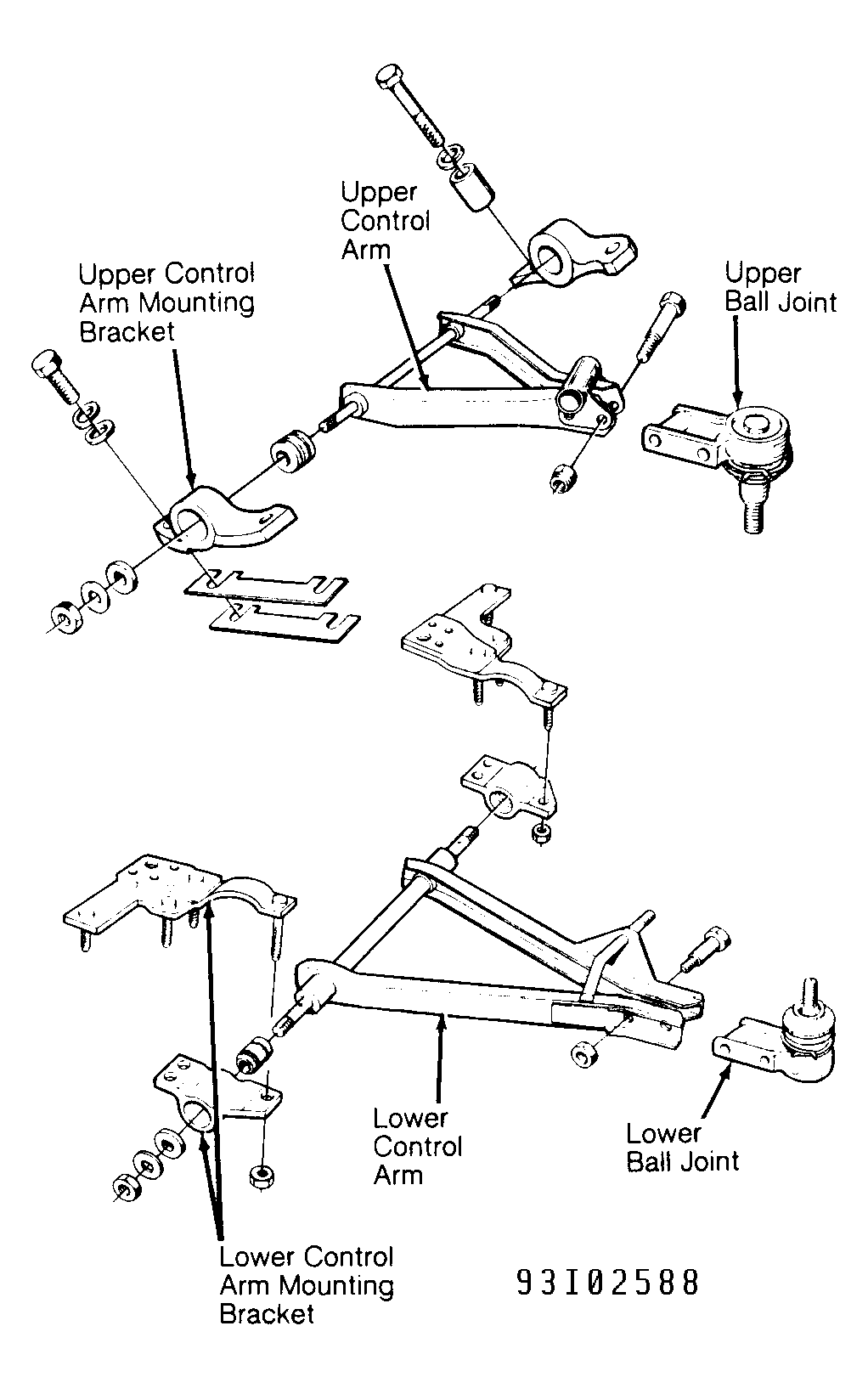

Fig 1: Front Suspension

Courtesy of SAAB-SCANIA OF AMERICA, INC.
