Service Point Locations

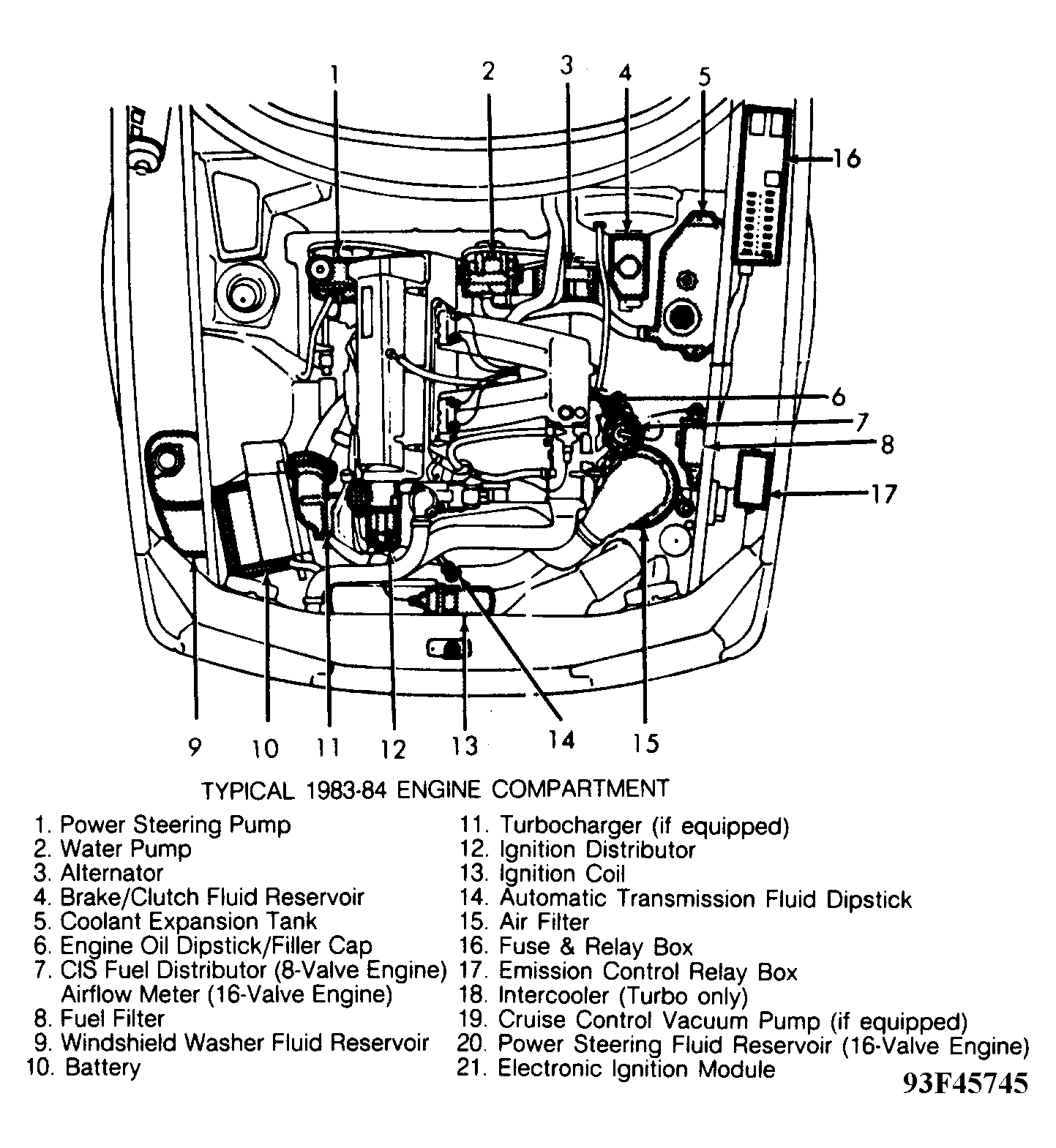

Fig 1: Service Point Locations (Typical 1983-84)

Courtesy of SAAB-SCANIA OF AMERICA INC.

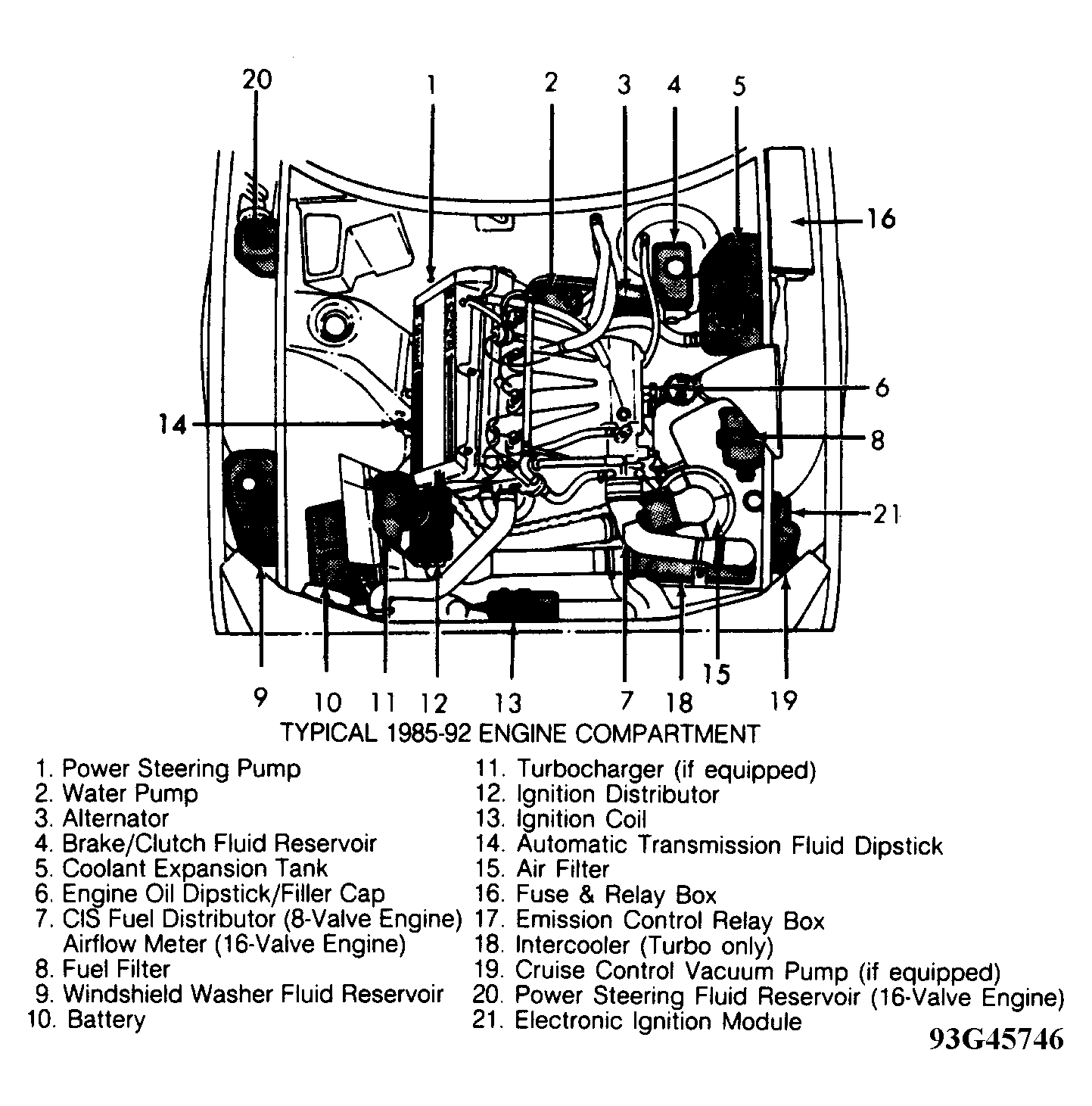

Fig 2: Service Point Locations (Typical 1985-92)

Courtesy of SAAB-SCANIA OF AMERICA INC.

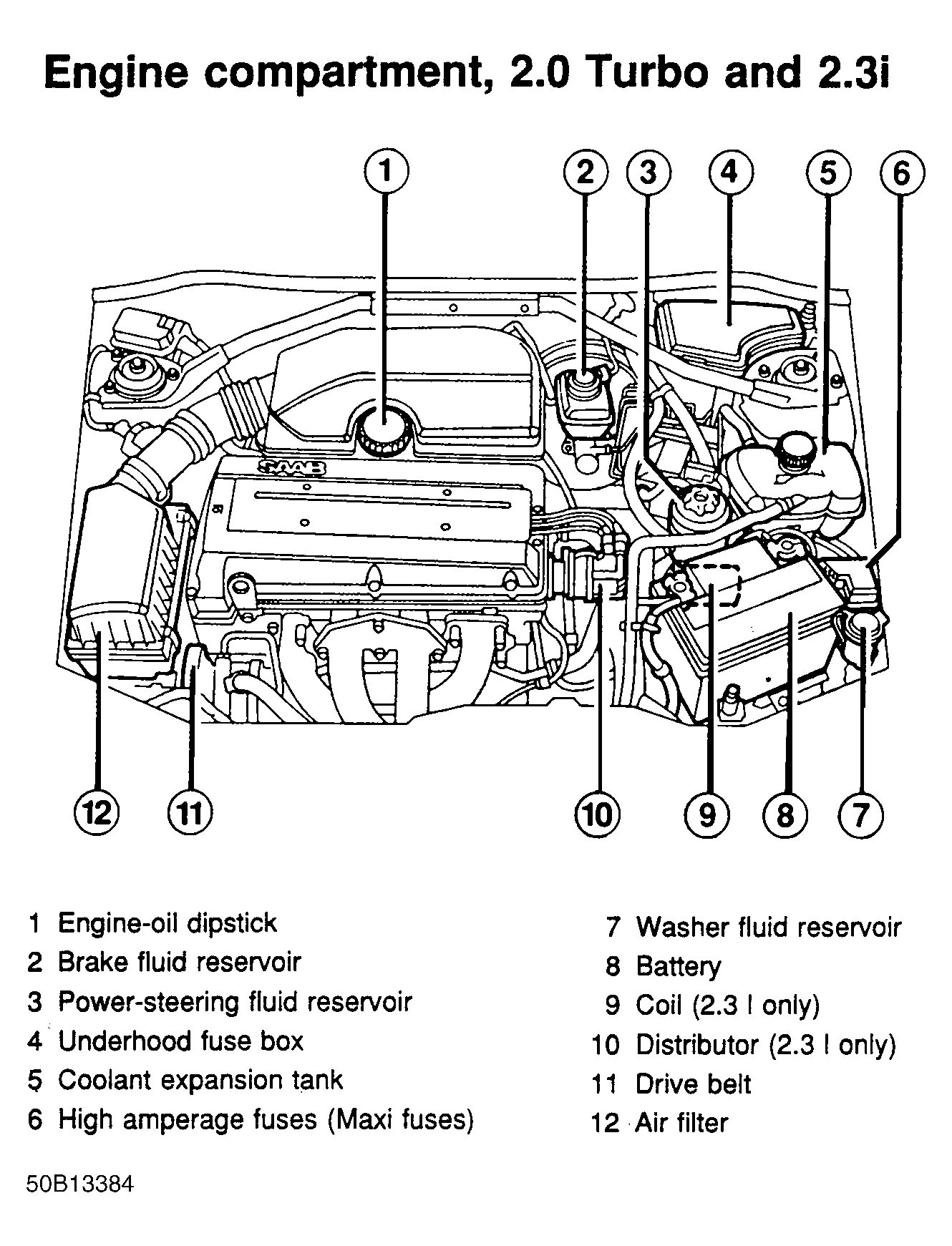

Fig 3: Service Point Locations - 2.0L Turbo & 2.3i (1993-96)

Courtesy of SAAB-SCANIA OF AMERICA INC.

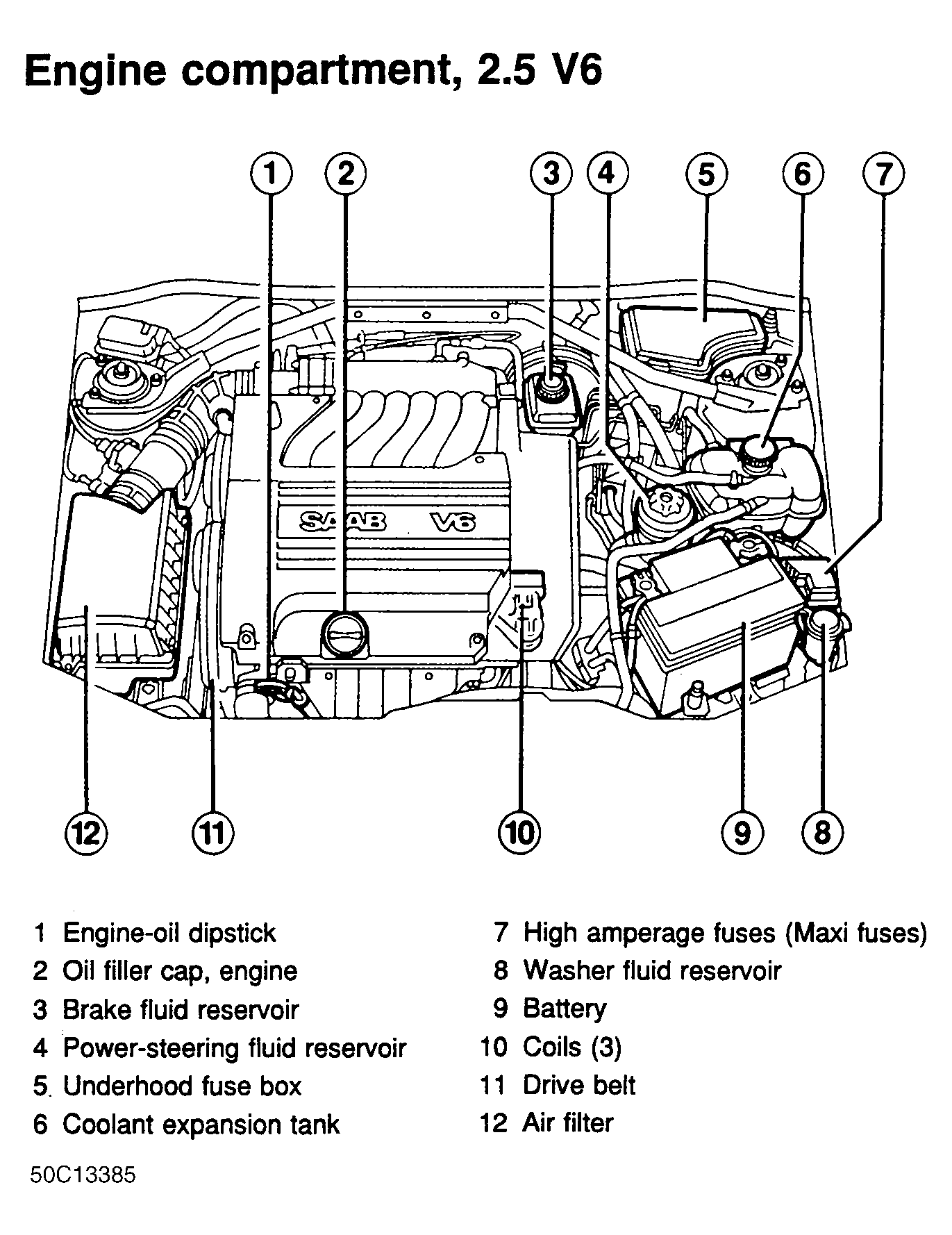

Fig 4: Service Point Locations - 2.5L V6 (1993-96)

Courtesy of SAAB-SCANIA OF AMERICA INC.
