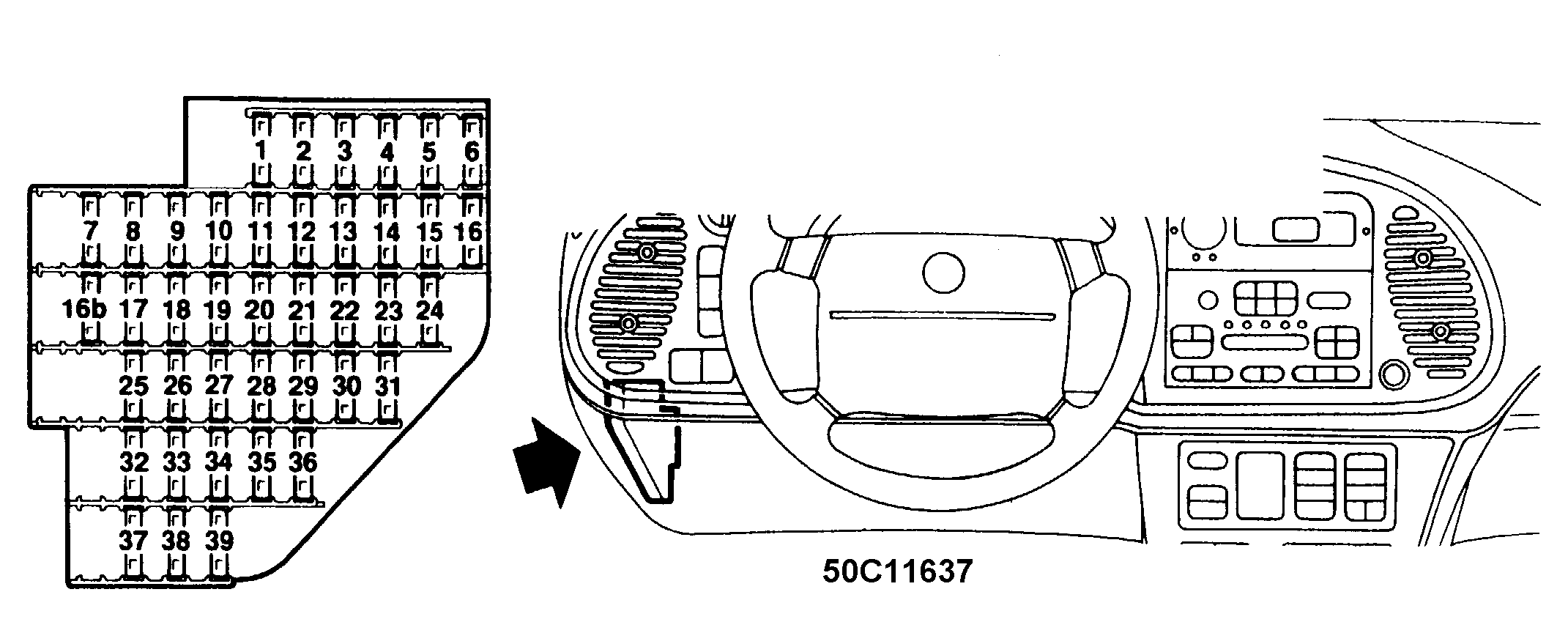

Main Fuse Panel Identification
Courtesy of SAAB-SCANIA OF AMERICA INC.
- 1 - 30 Amp
Heated Rear Window
- 2 - 15 Amp
Direction Indicator
- 3 - 30 Amp
Ventilation Fan
- 4 - 7.5 Amp
Interior Lighting
- 5 - 30 Amp
Power Seat (RH)
- 6 - 30 Amp
Cigarette Lighter
- 7 - 30 Amp
Rear Power Windows
- 8 - 15 Amp
Rear Window Wiper
- 9 - 15 Amp
Radio
- 10 - Not Used
- 11 - Not Used
- 12 - 15 Amp
Brake Lights
- 13 - 15 Amp
Radio, Data Link Connector
- 14 - 30 Amp
Front Power Windows
- 15 - 20 Amp
Daytime Driving Lights
- 16 - 30 Amp
Power Front Seat (LH)
- 16b - 30 Amp
Fuel Injection Relay
- 17 - 15 Amp
Instruments, TRIONIC SFI, TCM
- 18 - 15 Amp
Instruments, Air Bag
- 19 - 15 Amp
ABS, A/C Relay
- 20 - 20 Amp
Heated Front Seats, Central Locking
- 21 - 10 Amp
A/C ACC
- 22 - 15 Amp
Cruise Control System
- 23 - 20 Amp
Anti-Theft Alarm, Telephone
- 24 - 10 Amp
APC
- 25 - 30 Amp
Central Locking, Amplifier
- 26 - Not Used
- 27 - 15 Amp
Full & Dipped Beam
- 28 - 30 Amp
TCS, TRIONIC SFI, Motronic SFI
- 29 - 7.5 Amp
Parking Lights, RH Side Reostat
- 30 - 10 Amp
Parking Lights, LH Side Reostat
- 31 - 15 Amp
Reversing Lights, Windsreen Wipers
- 32 - 10 Amp
Fuel Pump
- 33 - 30 Amp
Direction Indicator
- 34 - 10 Amp
Instruments
- 35 - 10 Amp
ICE
- 36 - 10 Amp
Starter Motor
- 37 - 10 Amp
Rear Foglights
- 38 - 7.5 Amp
Heated Oxygen Sensor
- 39 - Not Used
