UNDERHOOD Fuse Panel Identification

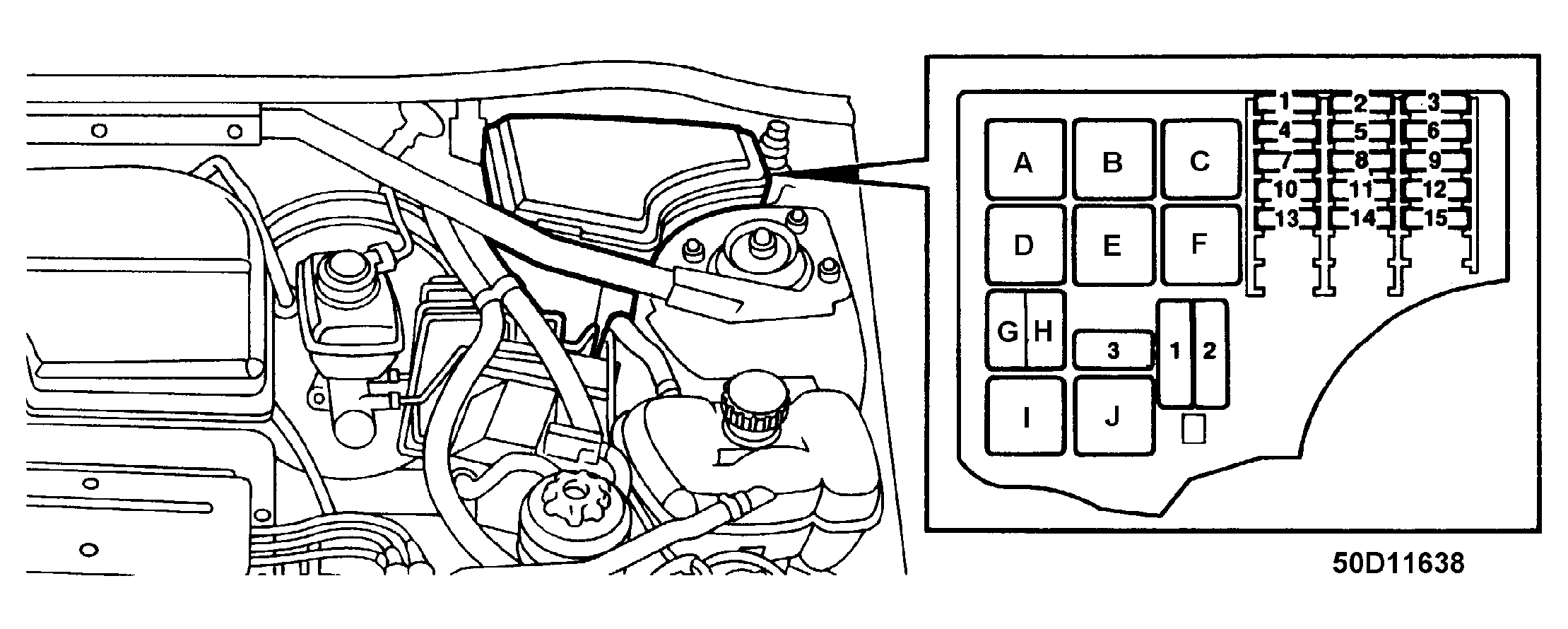

Fig 1: Underhood Fuse Panel Identification

Courtesy of SAAB-SCANIA OF AMERICA INC.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

• 1 - 10 Amp  Horn
• 2 - 15 Amp  Extra Foglihgts
• 3 - 40 Amp  Radiator Fan, Low Speed
• 4 - Not Used
• 5 - 15 Amp  Relay, A/C Compressor
• 6 - 15 Amp  Dipped Beam, LH Side
• 7 - 15 Amp  Dipped Beam, RH Side
• 8 - 15 Amp  Full Beam, LH Side
