Removal & Installation

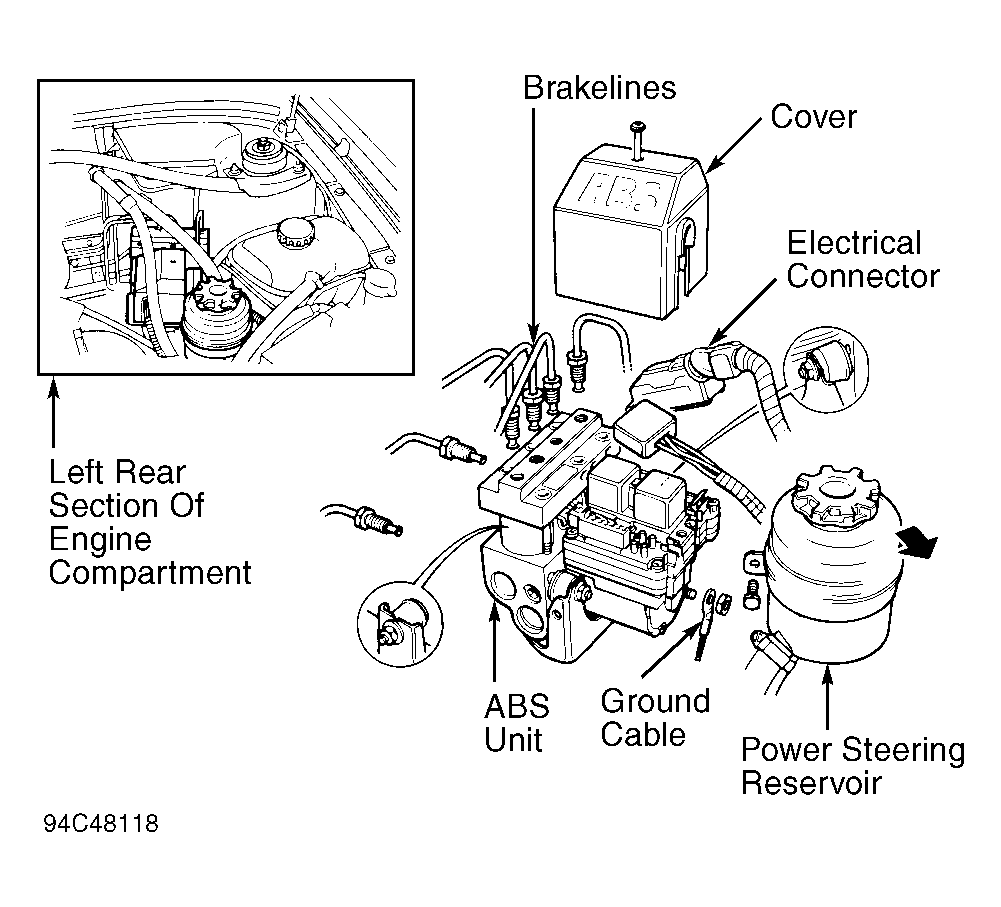

Remove bar located between spring struts. Disconnect electrical connector and ground cable located under Black plastic cover and secured with Torx screw. Remove brake line connections and plug holes. Remove 3 ABS unit-to-bracket nuts. Remove power steering reservoir to improve access, if necessary. Remove ABS unit. See Fig 1 . To install, reverse removal procedure.
