Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Vehicle Overview

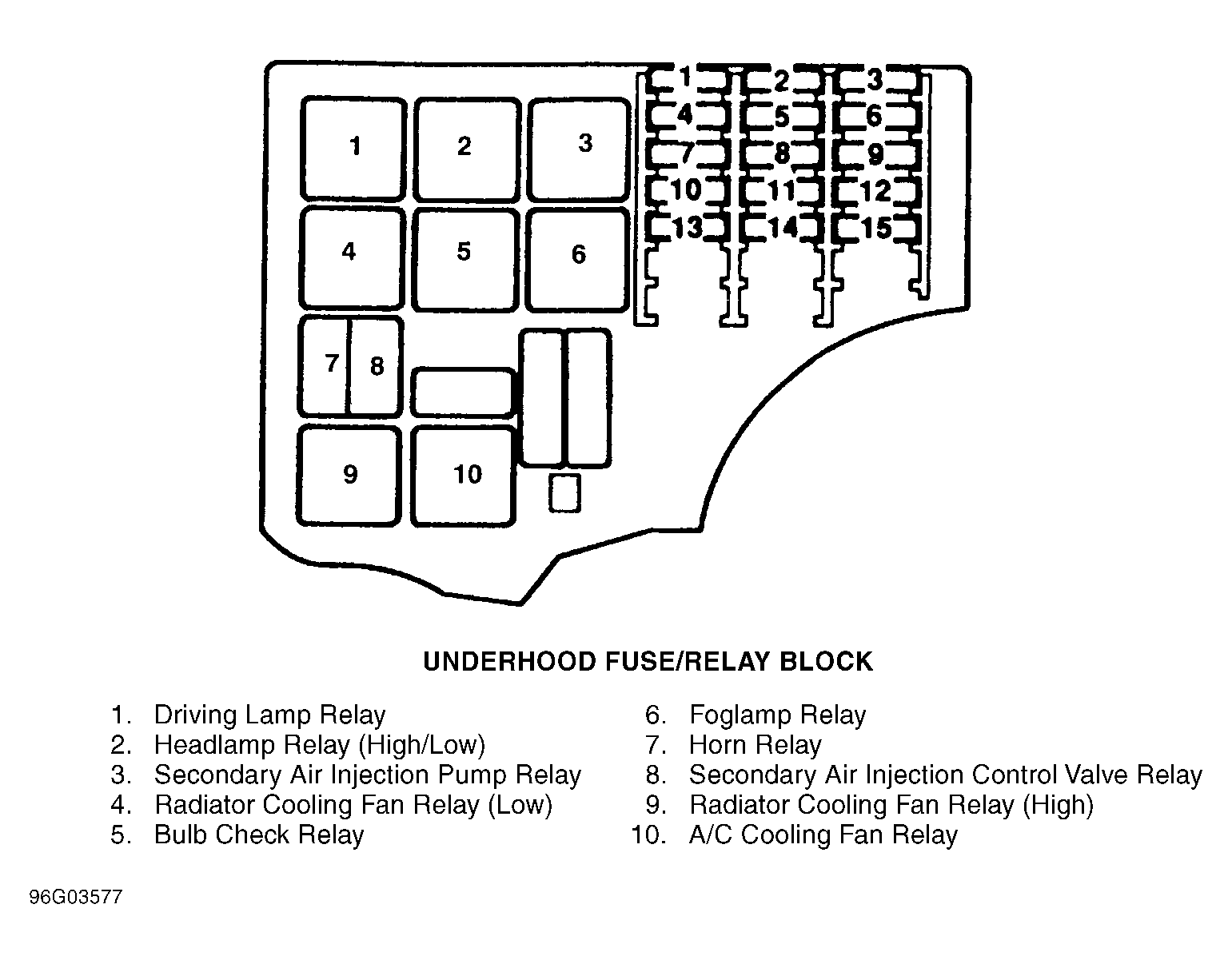

Fig 2: Underhood Fuse/Relay Block

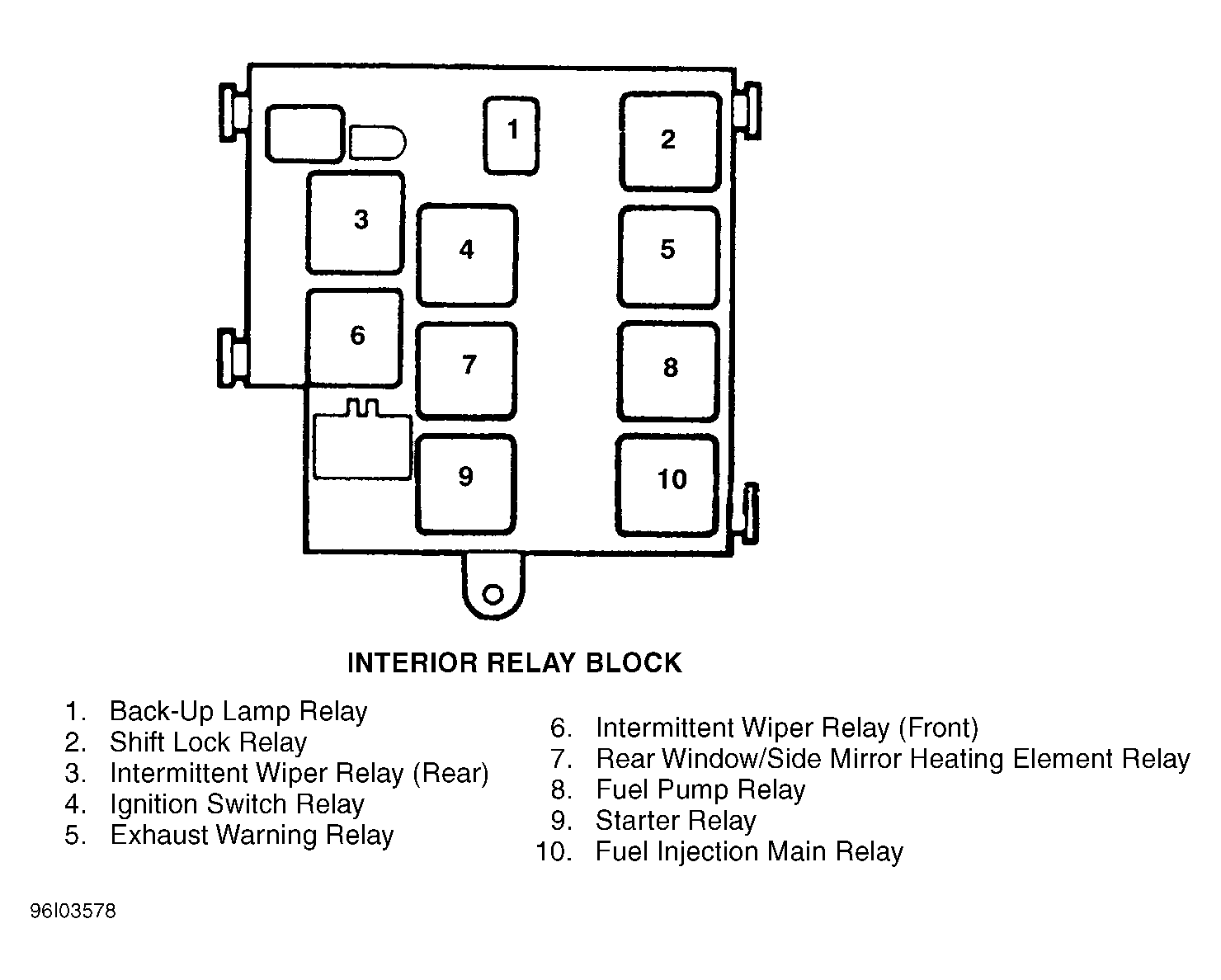

Fig 3: Interior Relay Block
