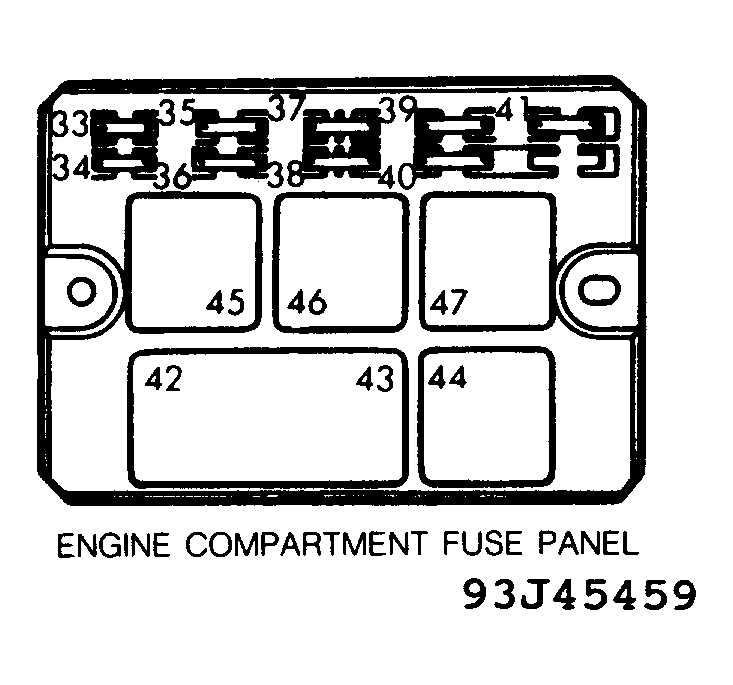

Engine Compartment Fuse Panel Identification
Courtesy of SAAB-SCANIA OF AMERICA INC.
- 33 - 15 Amp
Left Low Beam Headlight
- 34 - 15 Amp
Right Low Beam Headlight
- 35 - 15 Amp
Left High Beam Headlight
- 36 - 15 Amp
Right High Beam Headlight
- 37 - 15 Amp
Foglights (If Equipped)
- 38 - Blank (1988-89)
- 38 - 5 Amp (1990-94)
Cooling Fan (Timer)
- 39 - 25 Amp (1988)
Horn
- 39 - 20 Amp (1989-91)
- 39 - 30 Amp (1993-94)
Cooling Fan
- 40 - Blank (1988-89)
- 40 - 30 Amp (1990-94)
2-Stage Cooling Fan (Automatic Transmission)
- 41 - 15 Amp (1991-94)
Ignition Coil
- 41 - Blank (1988-90)
- 42 - Relay
Lighting
- 43 - Relay
Lighting
- 44 - Relay
Bulb Check
- 45 - Relay
Foglights (If Equipped)
- 46 - Blank (1988)
- 46 - Relay (1989-94)
Cooling Fan
- 47 - Relay (1988)
Horn
- 47 - Relay (1989-94)
Cooling Fan
