Problems Adjusting Heating (870-2020)

Publication date: 1998-09-01
Reference number: 870-2020

PROBLEMS ADJUSTING HEATING

PROBLEMS ADJUSTING HEATING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 870-2020, Date of Issue:  September 1998
SAAB: Cars without ACC
MARKET: All

SUBJECT

Problems adjusting heating

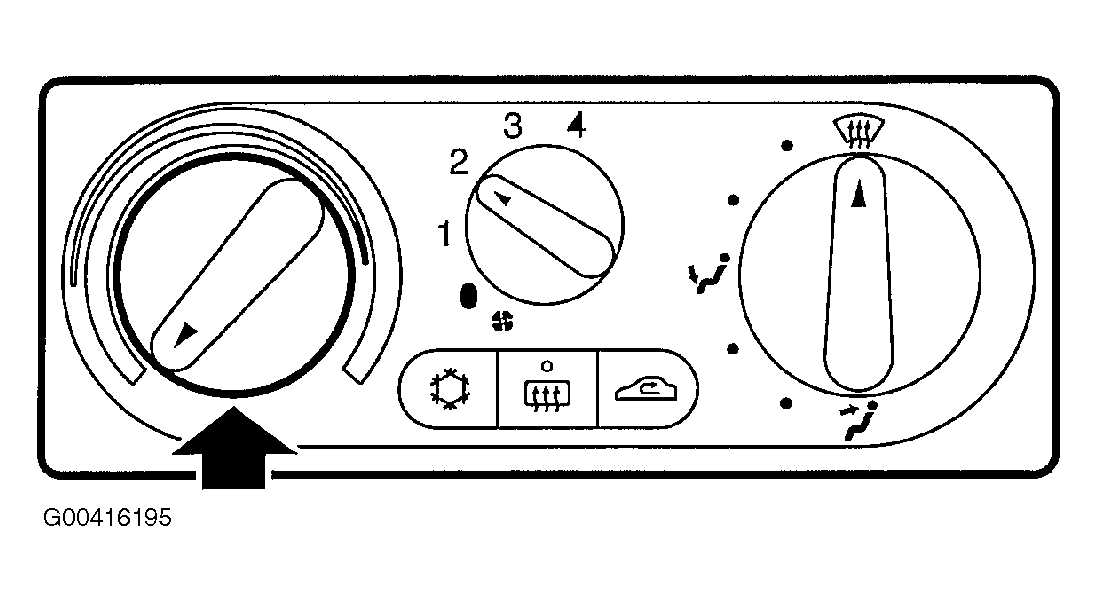

Fig 1: Control Panel
G00416195

CARS AFFECTED

All cars without ACC within VIN intervals:

  1. W2050001 - W2053455

    and

  2. X2000001 - X2002512

BACKGROUND

The heater temperature control cable on certain cars within the above VIN intervals could be bent or broken. This may be caused by a stiff air blending flap (heater shutter), insufficient clearance between the cable loop at the end of the cable and the pin on the lever, low safety margin (materials too close in tolerance) or a restriction in the cable sheath.

Various measures have been taken in production to solve this problem, which means that cars with VIN from W2053456 and X2002513 respectively are correct.

PARTS REQUIRED

50 45 752 Adjuster cable (CA: 306577263)

PROCEDURE

  1. Open the glove box, open the screw covers and remove the retaining screws.

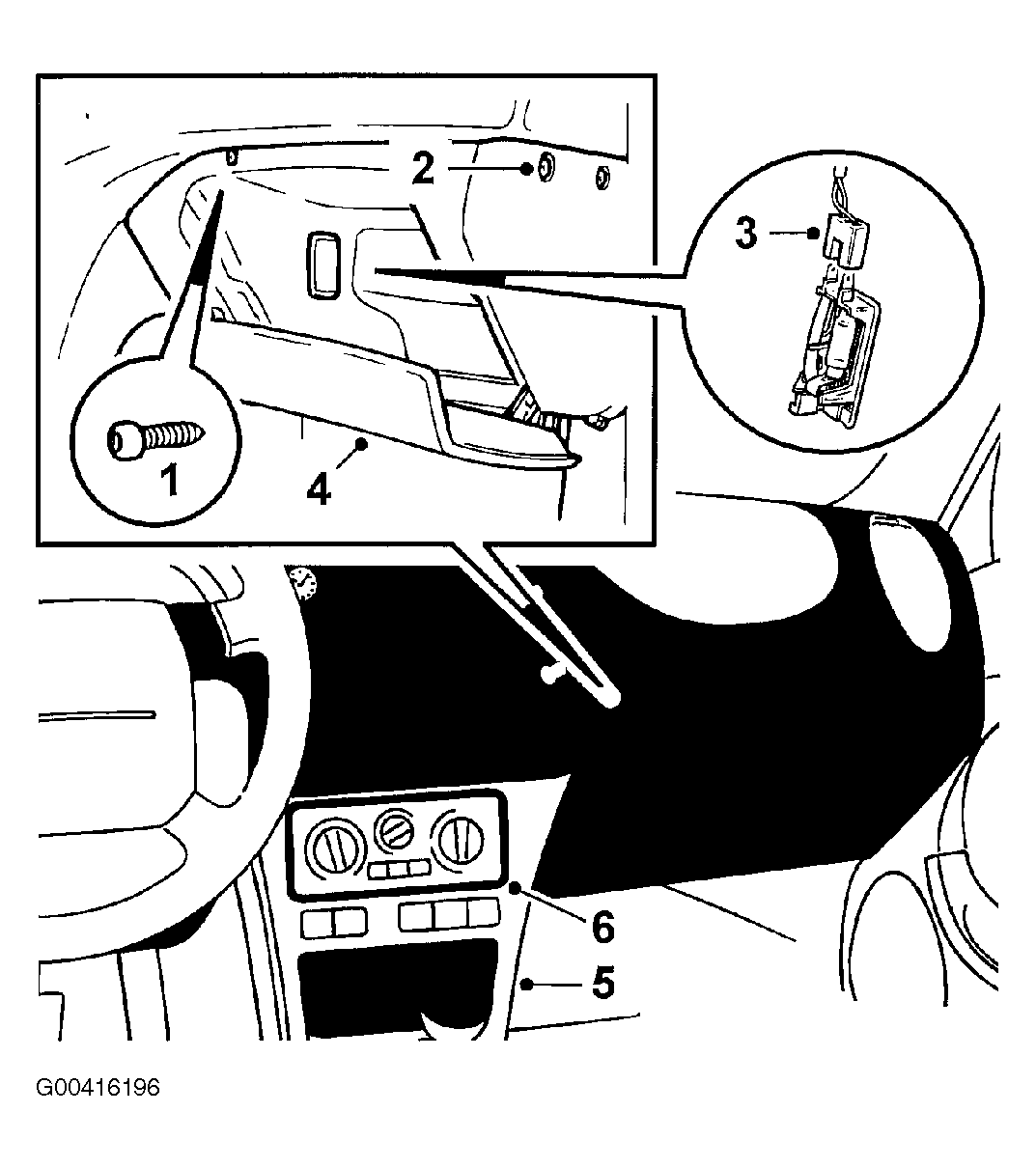

    2. Fig 2: Removing Glove Box And Side Panel
    G00416196
  2. Remove the remaining retaining screws and the bolt as well as the expanding rivet at the front. Then, release the plastic snap fastener on the bulkhead bracket.
  3. Pull out the glove box and unplug the glove box light connector.
  4. Remove the glove box.
  5. Remove the side panel on the right-hand side of the center console.
  6. Push out the control panel from behind and release it from the distribution control shaft.
  7. Unplug the connectors.

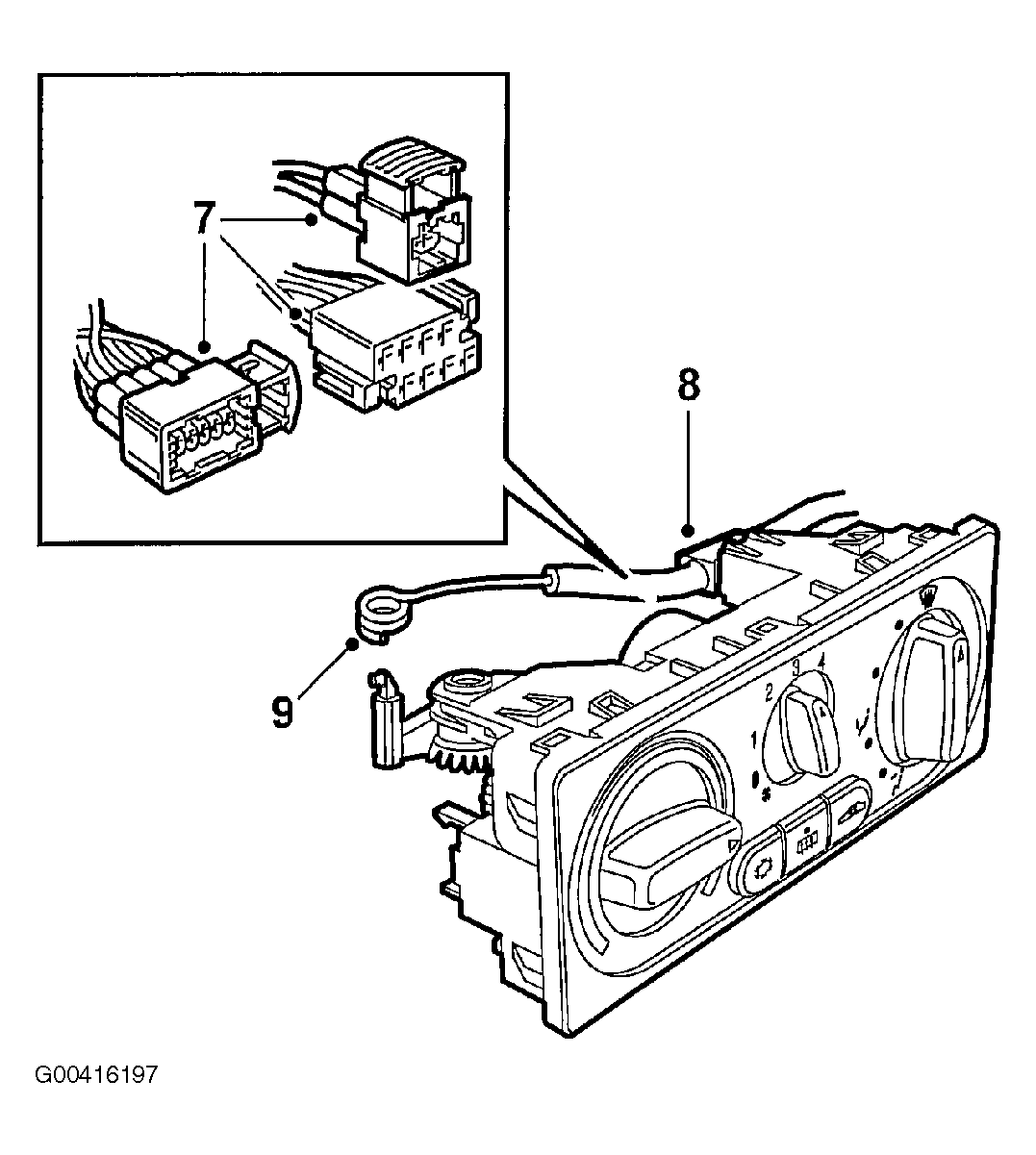

    8. Fig 3: Disconnecting Control Panel
    G00416197
  8. Undo the clip securing the cable to the control panel.
  9. Unhook the cable loop.
  10. Remove both clips securing the cable to the heating and ventilation unit and remove the cable from the pin on the lever.

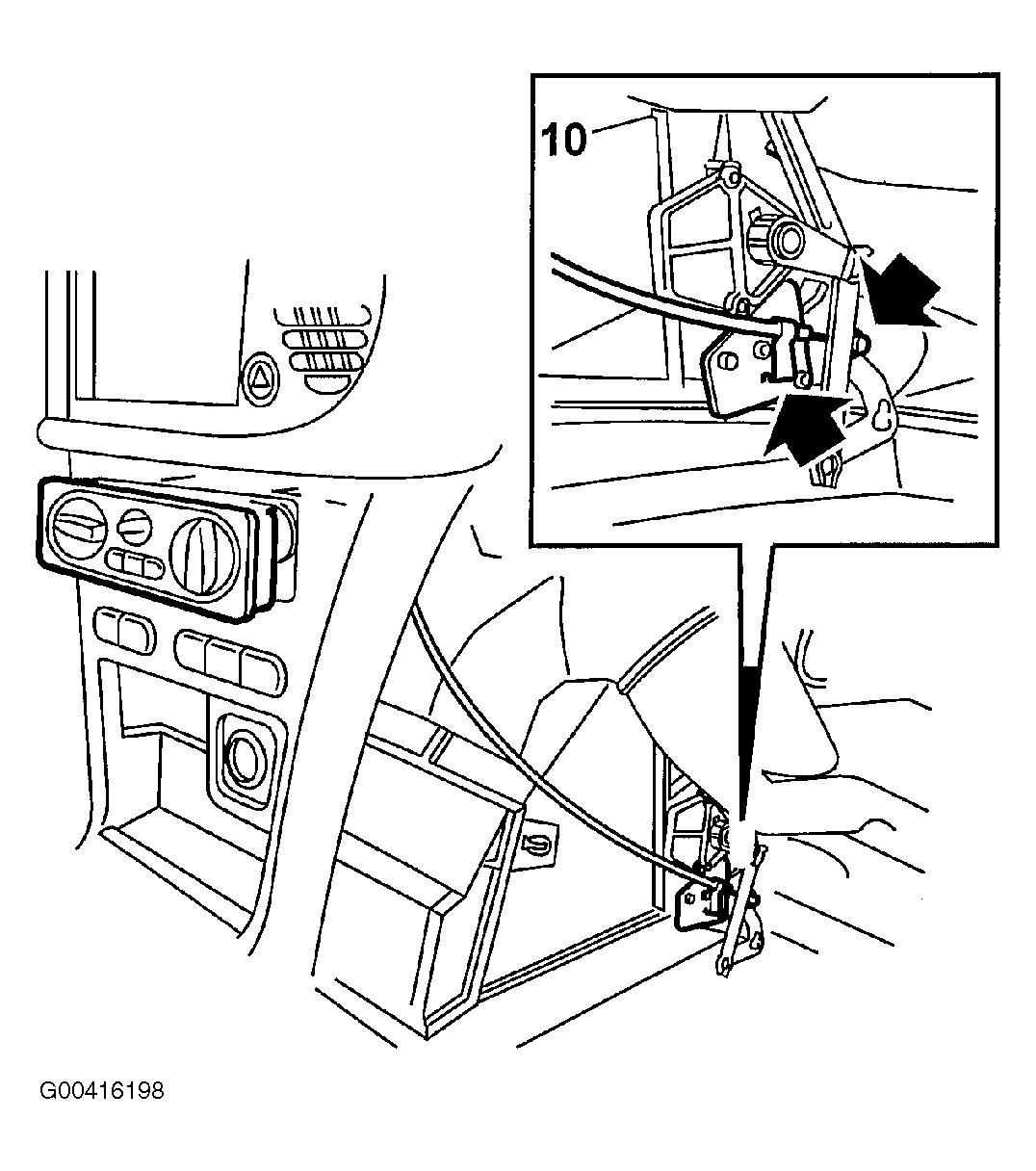

    11. Fig 4: Removing Cable From Pin On Lever
    G00416198
  11. Install the new control cable in place on the back of the control panel. The cable should be on top of the distribution control shaft.

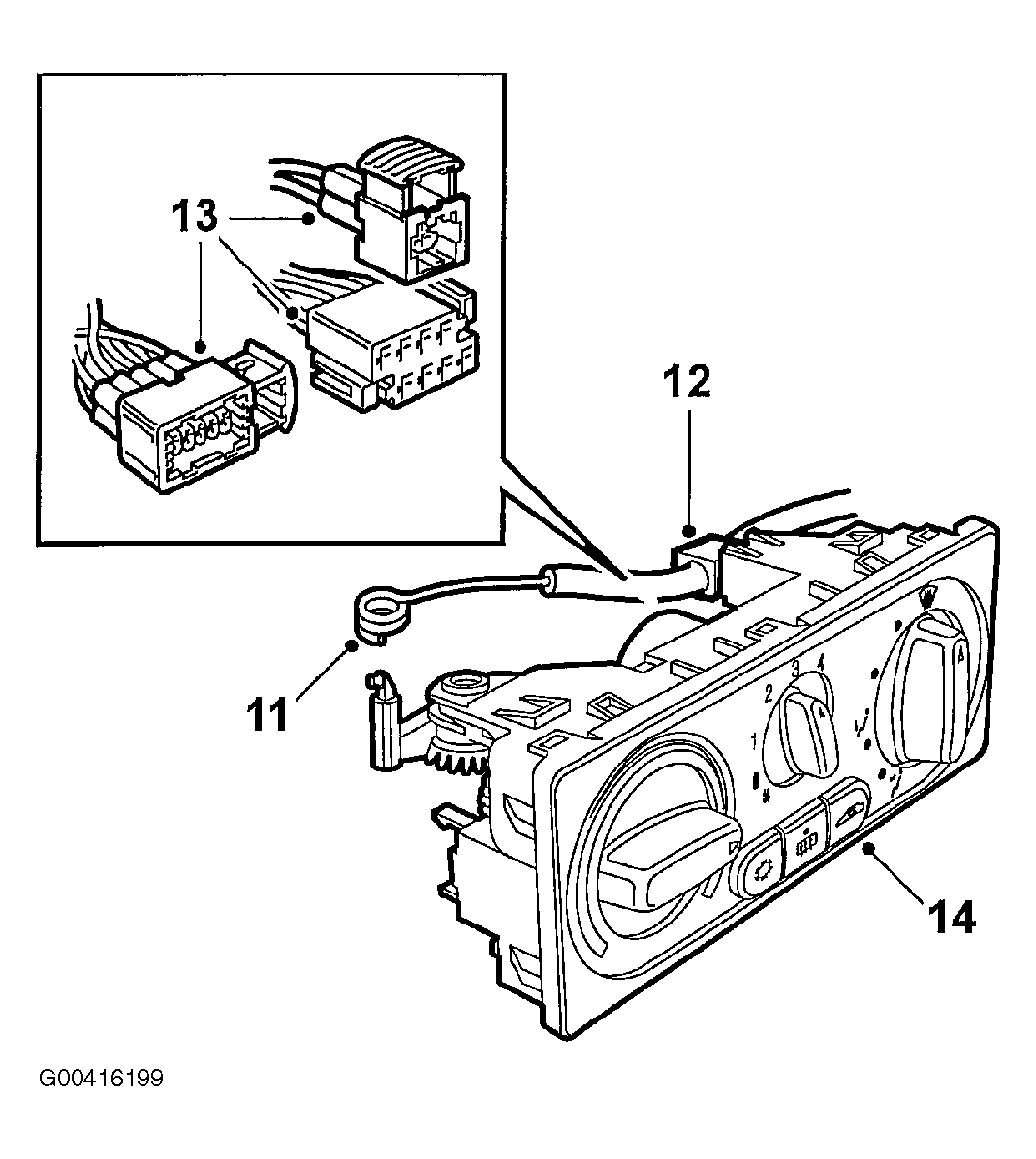

    12. Fig 5: Connecting Control Panel
    G00416199
  12. Fit the clip securing the cable to the control panel.
  13. Plug in the connectors.
  14. Put the control panel into position and fit the distribution control shaft.
    IMPORTANT: Make sure the control shaft is properly inserted into the heater unit before fitting it to the control panel.
  15. Put the cable in place on the air-blending flap lever.
  16. Turn the temperature knob to maximum cold.

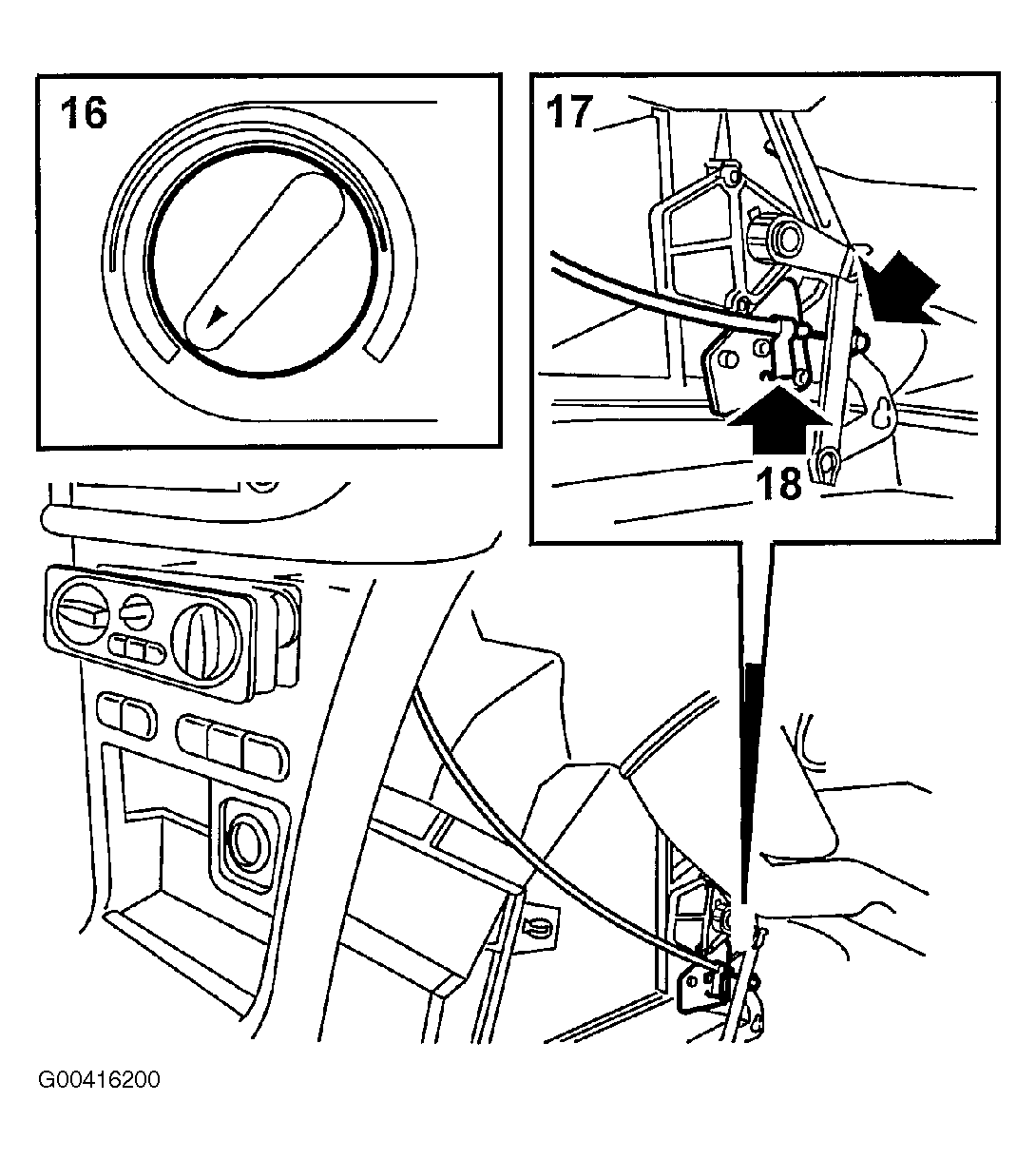

    17. Fig 6: Securing Cable Sheath To Heating And Ventilation Unit
    G00416200
  17. Push the air-blending flap lever as far forward as it will go.
  18. Secure on the attaching plate to the heating and ventilation unit and fit the clip securing the cable sheath to the heating and ventilation unit.
  19. Turn the heater knob alternately to both end positions to make sure the air-blending flap closes properly in both positions.
  20. Refit the side panel on the center console.
  21. Position the glove box and plug in the glove box light connector.
    22. Fig 7: Installing Glove Box And Side Panel
    G00416201
  22. Guide the glove box into the snap fastener on the bulkhead bracket and fit the retaining screws and the retaining bolt as well as the expanding rivet at the front edge.
  23. Close the screw covers and close the glove box.

WARRANTY/TIME INFORMATION

  1. Failed Object: 85485
  2. Fault/Reason code: 71
  3. Location code: 09
  4. Warranty Type (US): 01
  5. Repair/Action code: 01
  6. Labor Operation (US): N/A (CA: D0450)
  7. Time: 0.2 hrs
