Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Underhood Fuse/Relay Block

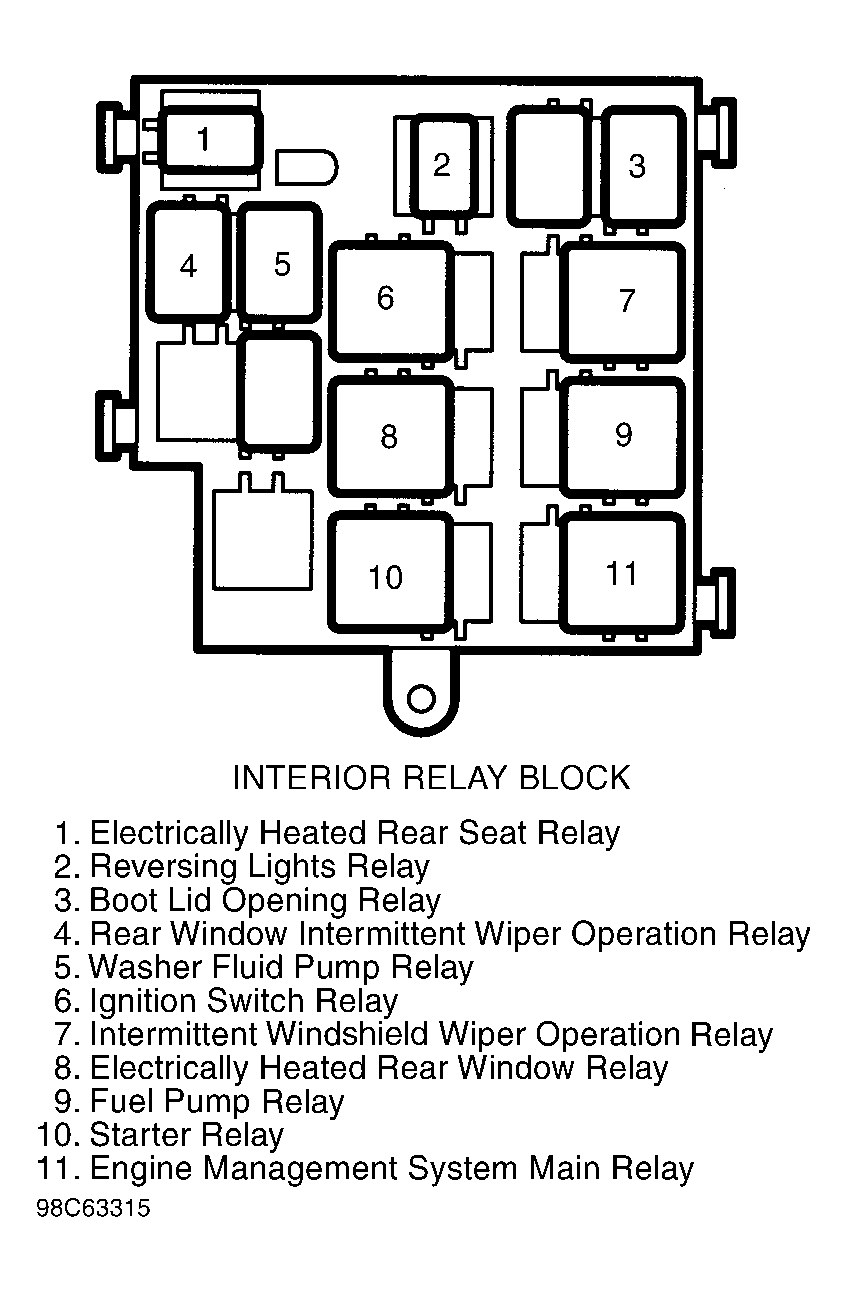

Fig 2: Interior Fuse/Relay Block

Fig 3: Vehicle Overview
