To remove

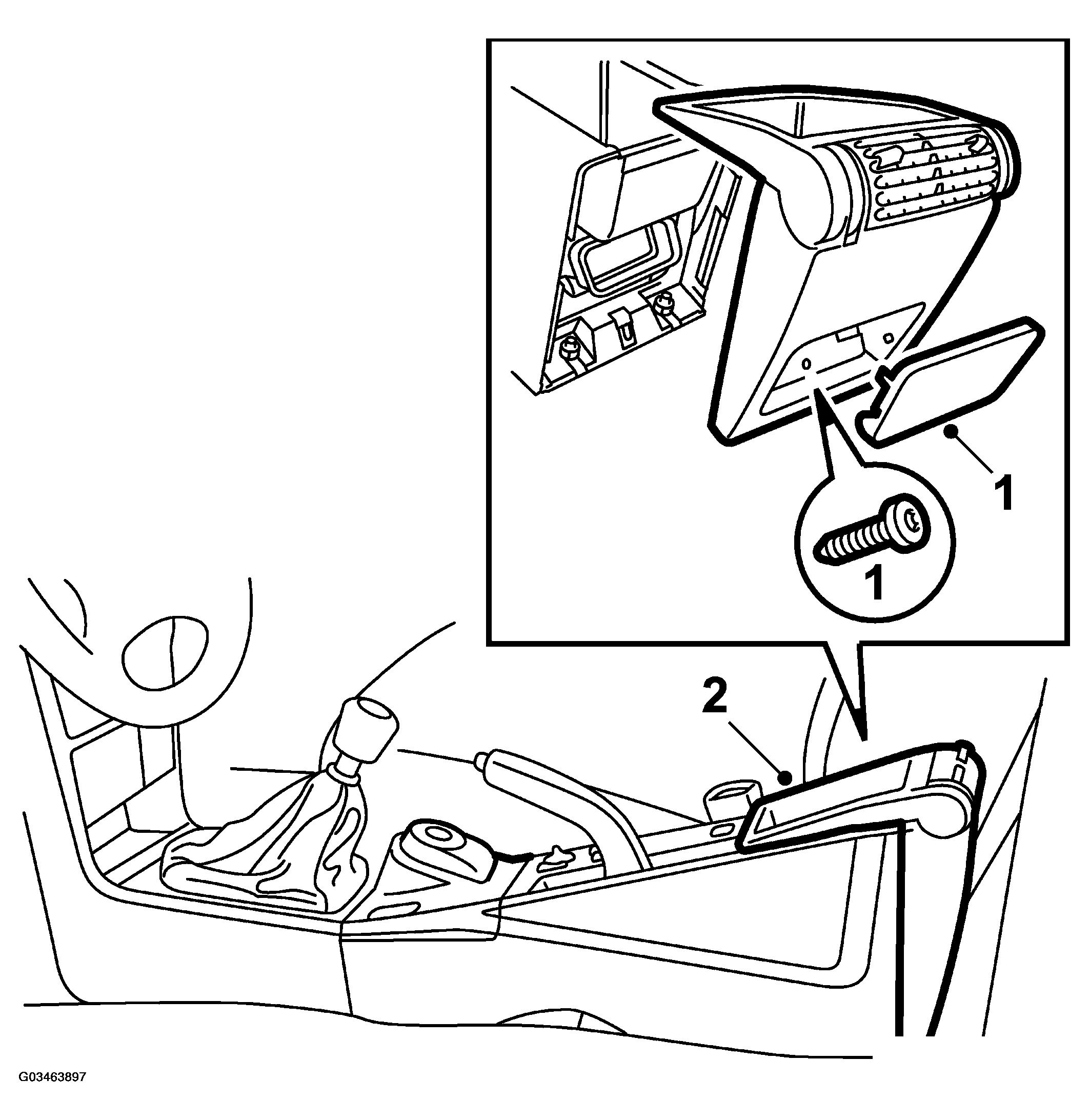

Fig 1: Removing Rear Section Of Floor Console
G03463897Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the cover and unscrew the screw holding the rear section of the floor console.
  2. Lift off the rear section.
  3. Undo the receiver unit from the side wall of the floor console.

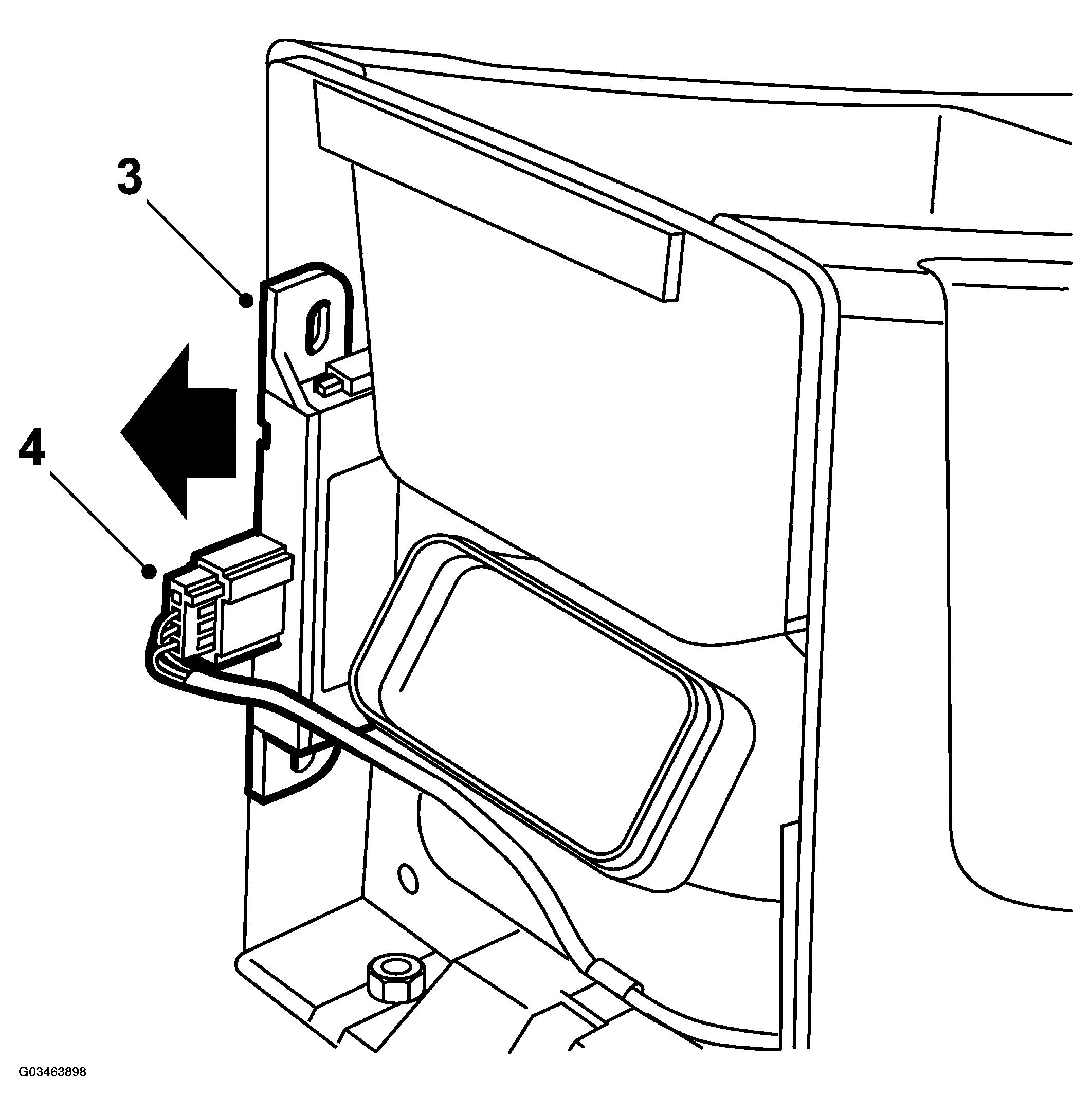

    Fig 2: Removing Remote Control Receiver Unit
    G03463898Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector and remove the receiver unit.
