To remove

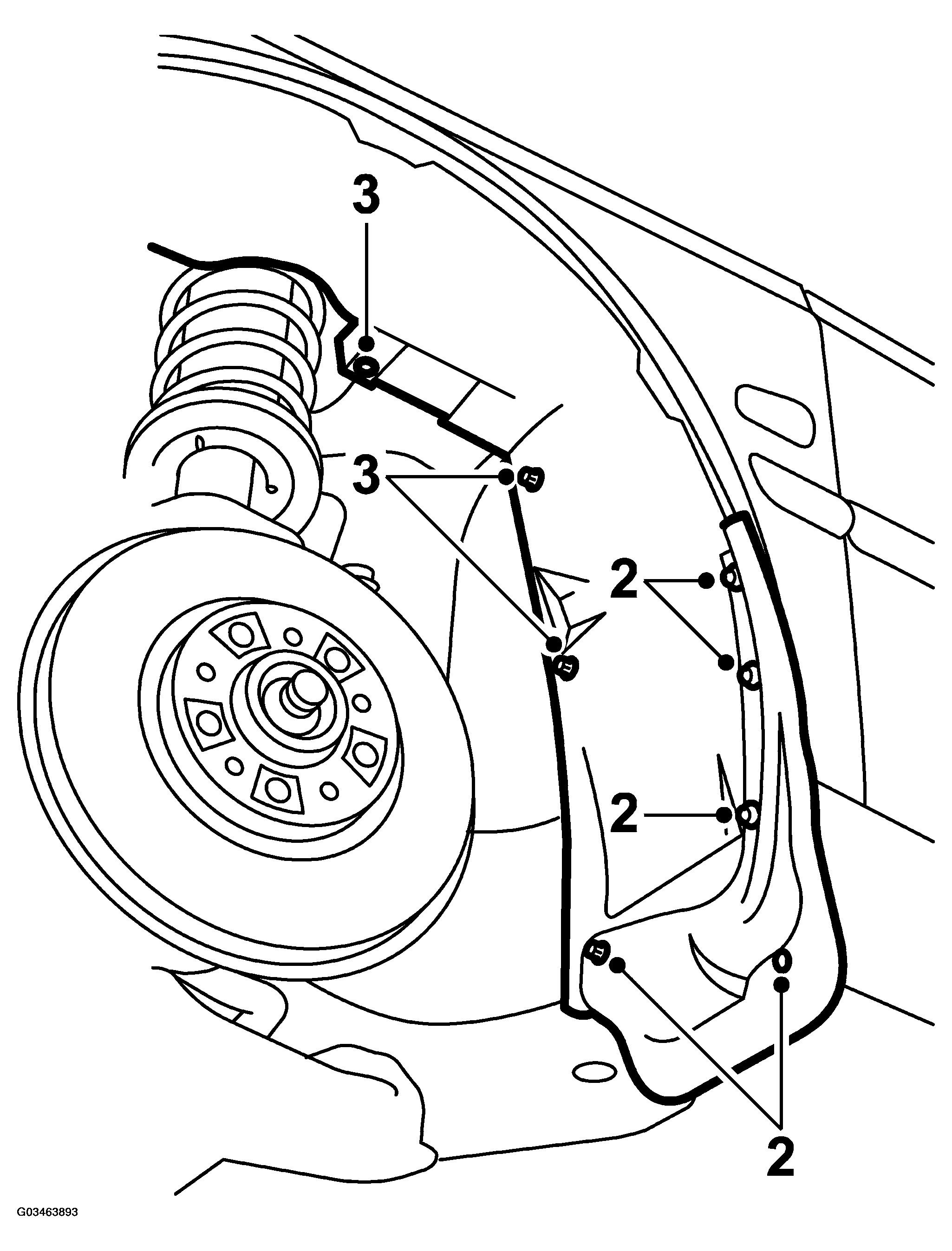

Fig 1: Removing Wing Liner And Mud Flap
G03463893Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the left front wheel.
  2. Remove the left front mudflap.
  3. Loosen 2 nuts and a rivet that hold the rear edge of the wing liner.
  4. Remove the 2 nuts that hold the siren.

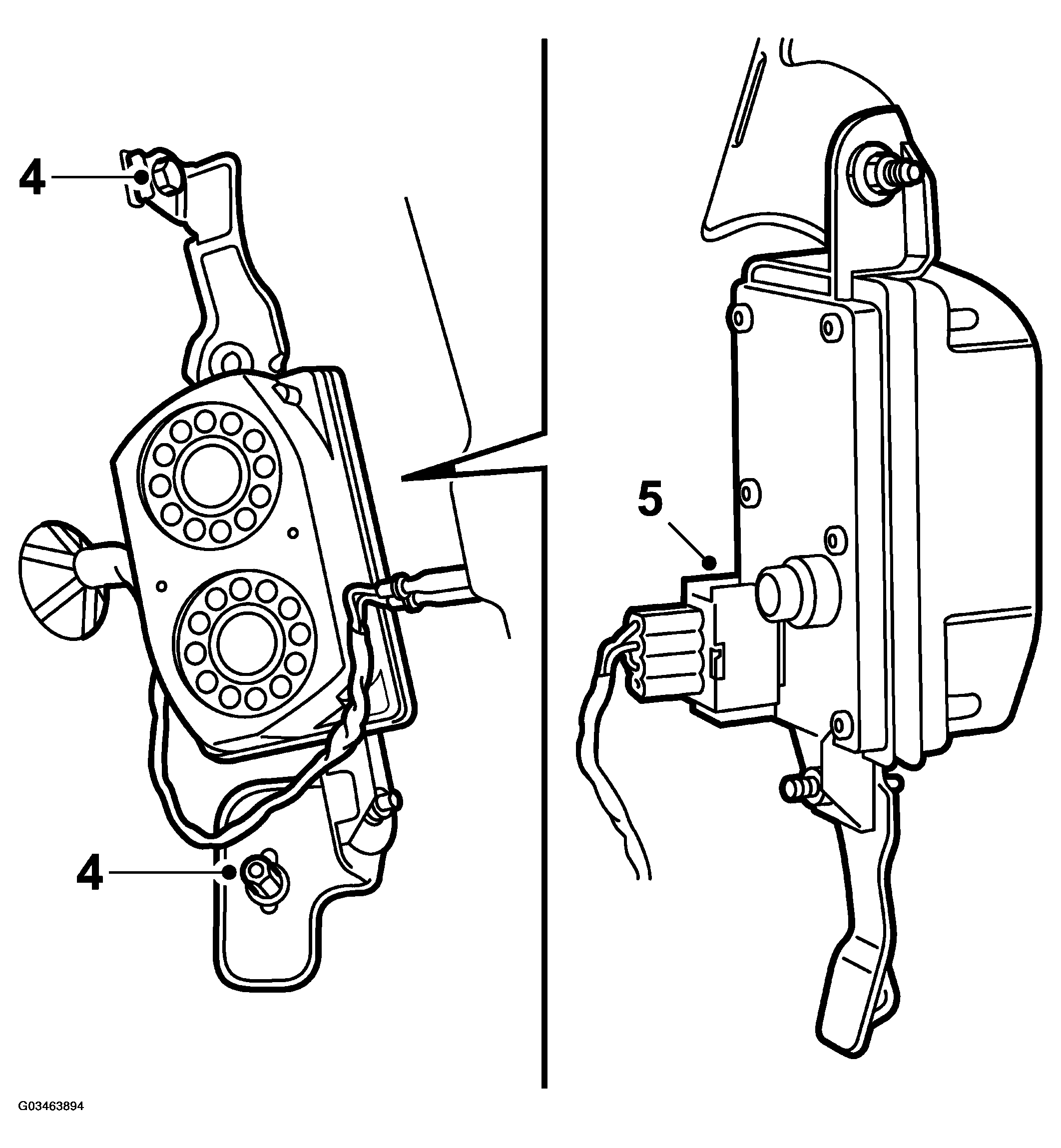

    Fig 2: Removing Electrical Connector And Siren
    G03463894Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Disconnect the electrical connector and remove the siren.
