To remove

  1. Remove the antenna unit by turning it clockwise. Lift the unit up and disconnect the electrical connector.
  2. Remove the ignition switch cover. Start at the back as it is fastened with hooks at the front.
  3. Unscrew 2 screws holding the floor console.
  4. Remove the rear section of the floor console.
  5. Unscrew 2 nuts holding the floor console.
  6. Remove the switch. Bend at the front edge.

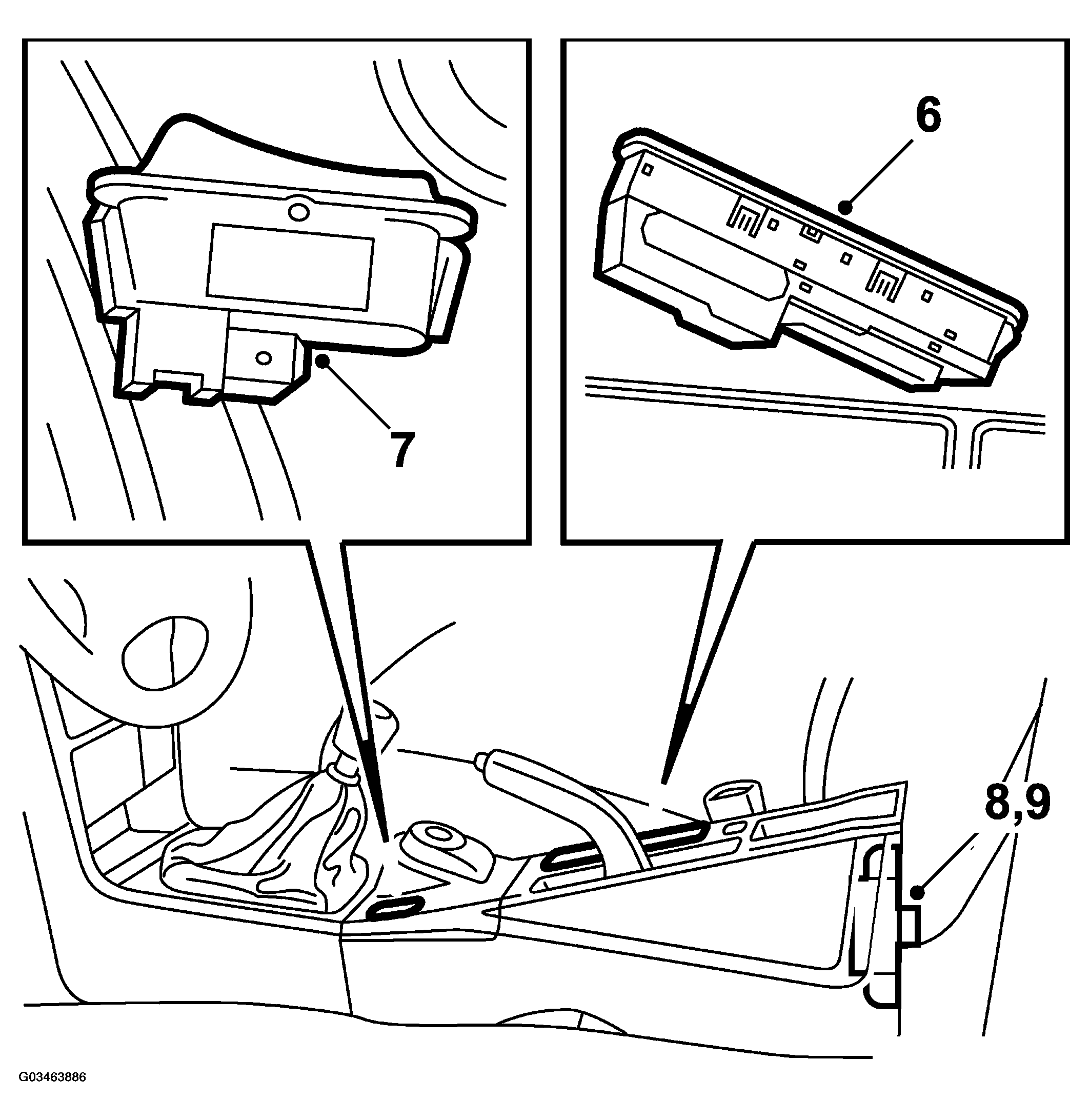

    Fig 1: Removing Interior Lighting Switch
    G03463886Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. On the Cabriolet, remove the interior lighting switch.
  8. Loosen the remote control receiver from the side wall of the floor console.
  9. Disconnect the electrical connector from the receiver unit.
  10. Lift off the floor console.
  11. Lift the floor duct.

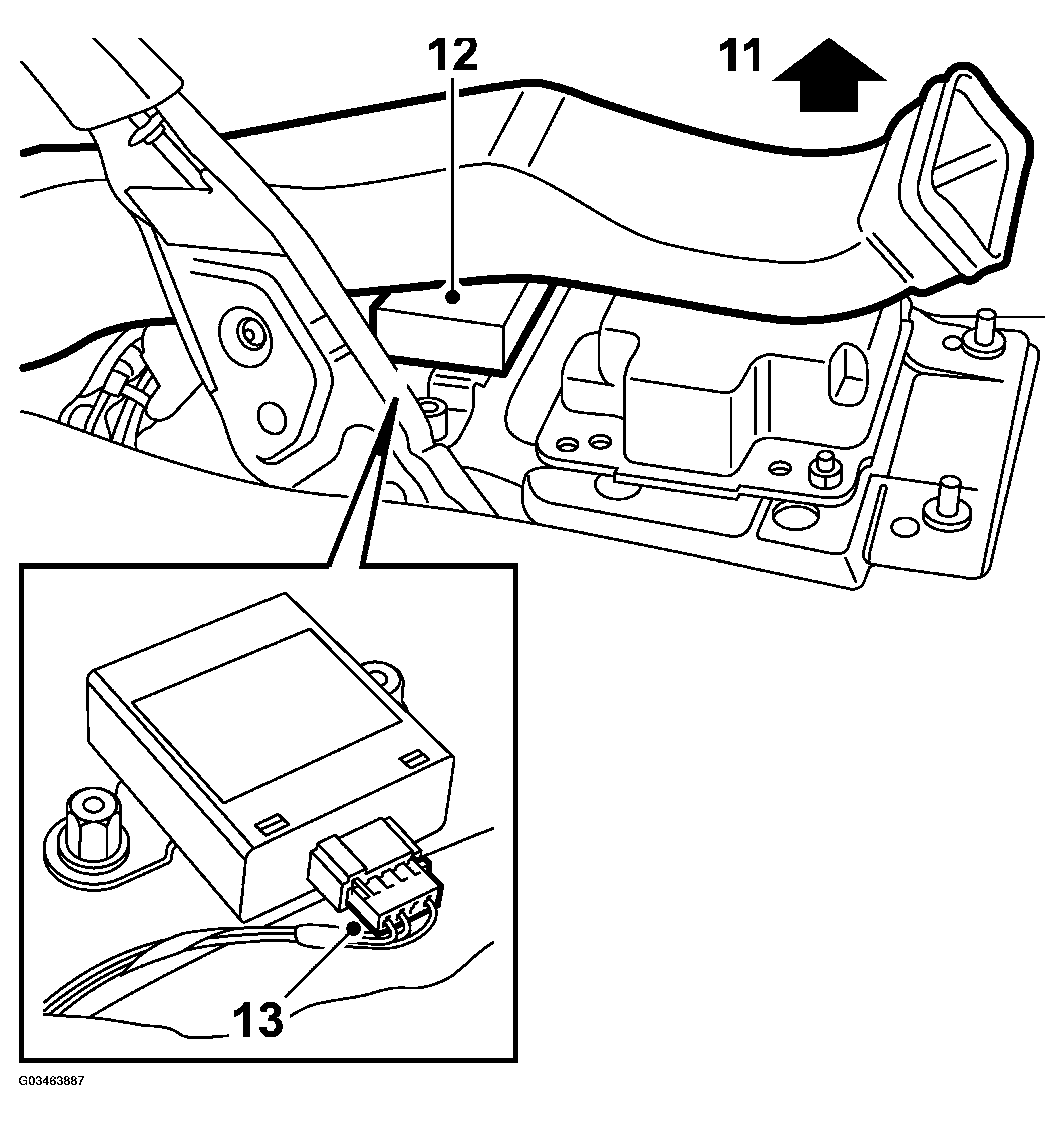

    Fig 2: Removing Tilt Sensor
    G03463887Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Remove the tilt sensor from its holder (slides off).
  13. Disconnect the electrical connector from the tilt sensor.
