Angle sensor

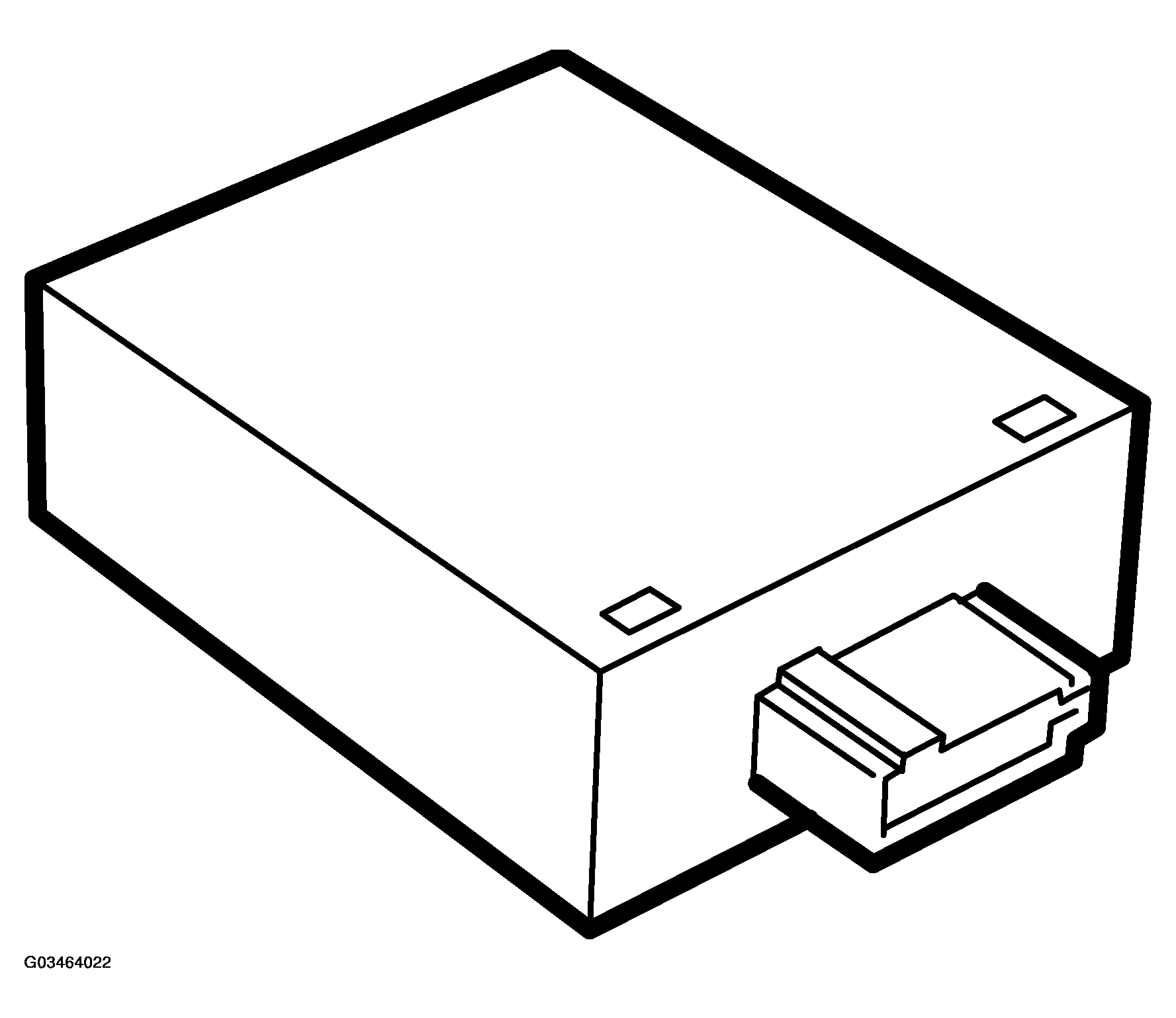

Fig 1: View Of Angle Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
ANGLE SENSOR LOCATION AND TYPE
Location
Centre console, rear section
Type
Fluid-filled
Power supply B+
Pin No.
1
Communication
Pin No.
3
Ground
Pin No.
4
