Antenna unit, immobilization

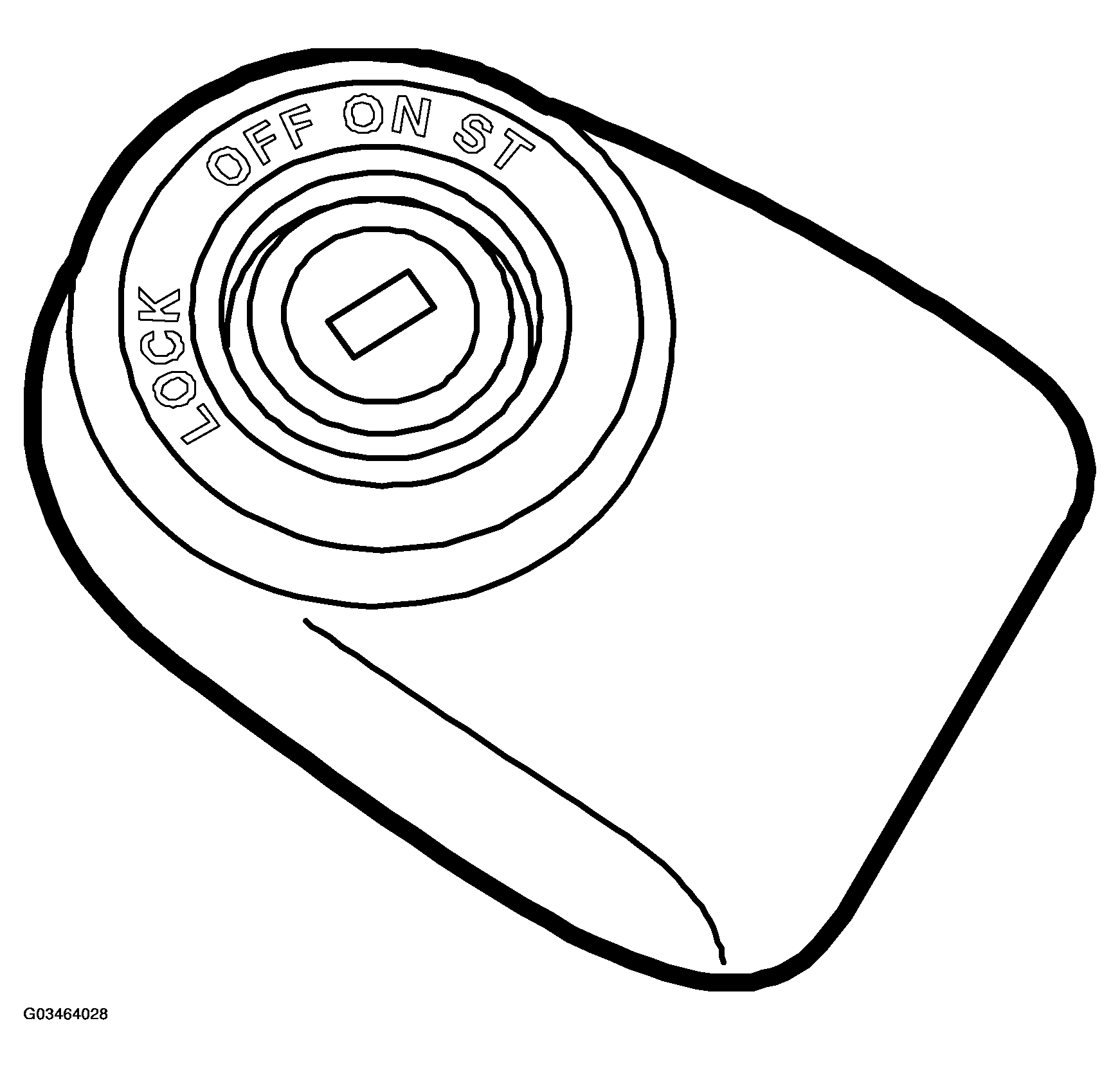

Fig 1: View Of Antenna Unit, Immobilization
G03464028Courtesy of SAAB-SCANIA OF AMERICA, INC.
ANTENNA UNIT, IMMOBILIZATION LOCATION

Location On ignition switch
Power supply B+ Pin No. 1
Signal (data) Pin No. 2
Ground Pin No. 3
