Technical Data: Siren

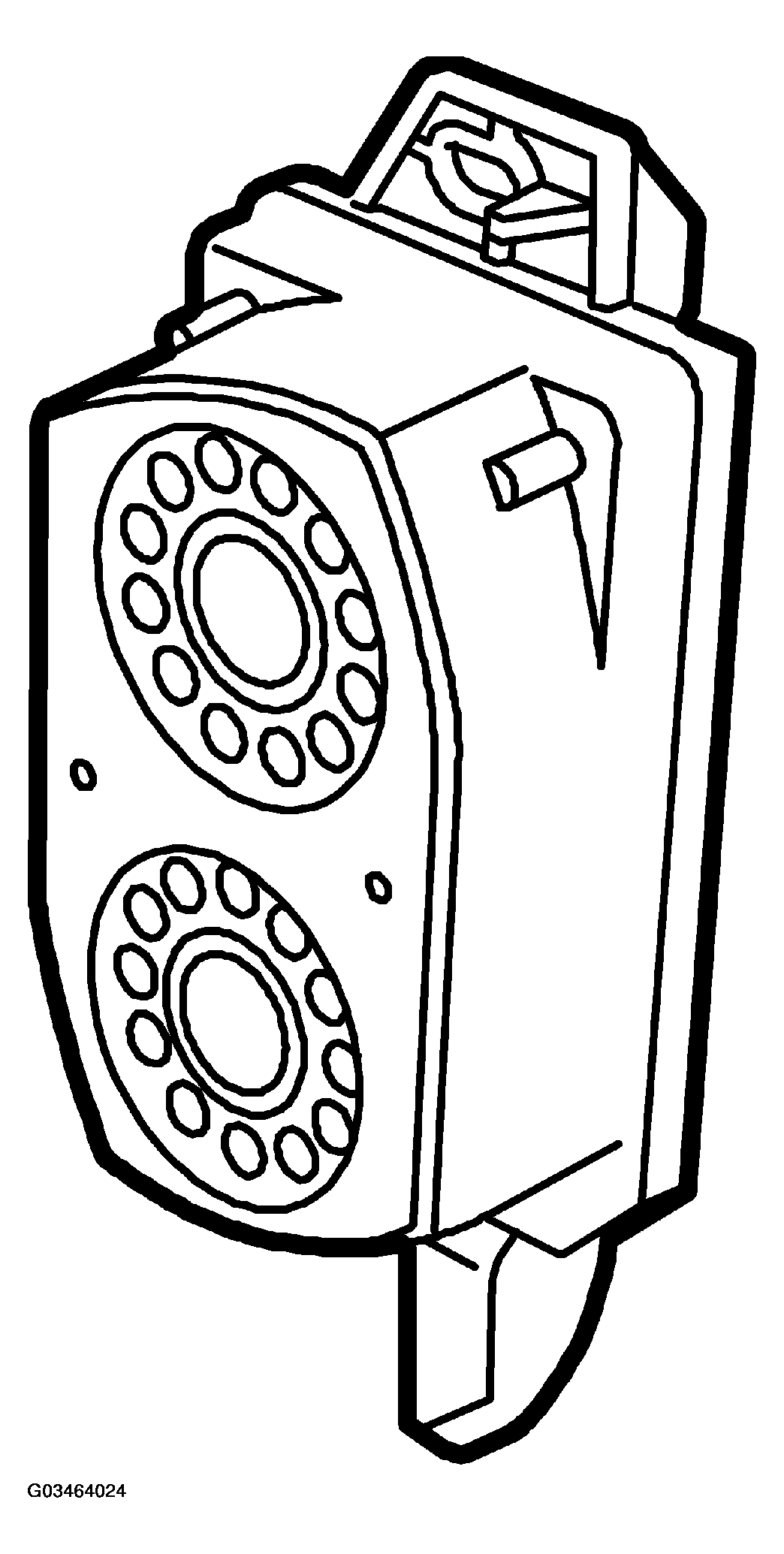

Fig 1: View Of Siren

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SIREN LOCATION AND TYPE

Location		LH front wheel housing (rear edge)
Type		Piezo-electric with battery back -up
Power supply:	Pin No.	1
Communication	Pin No.	3
Ground	Pin No.	2
Sound pressure 1 metre in front of car	dB (A)	100
