Main components, immobilizer

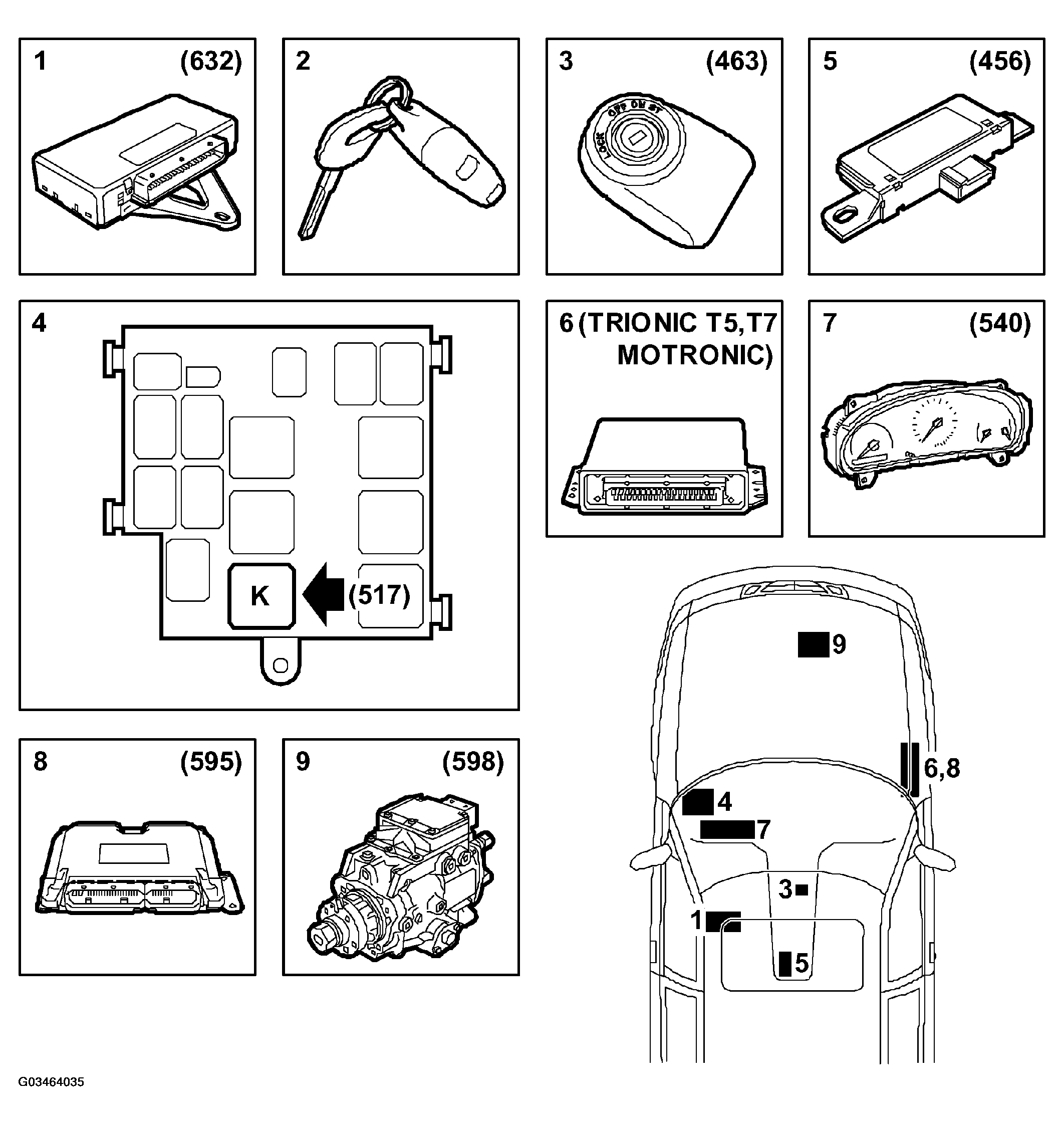

Fig 1: Identifying Immobilizer Main Components

G03464035

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Control module, TWICE (632)
Car key
Remote control
Antenna unit, immobilizer (463)
Relay, starter relay (517)
Antenna, remote control, central locking system (456)
Engine management system, petrol (430a, 505, 589a, 430b)
Main instrument unit (540)
Engine management system, diesel (595)
Diesel pump (598)
