To remove

  1. Open the bonnet.
  2. Put protection on the wings.
  3. Remove the upper engine cover.

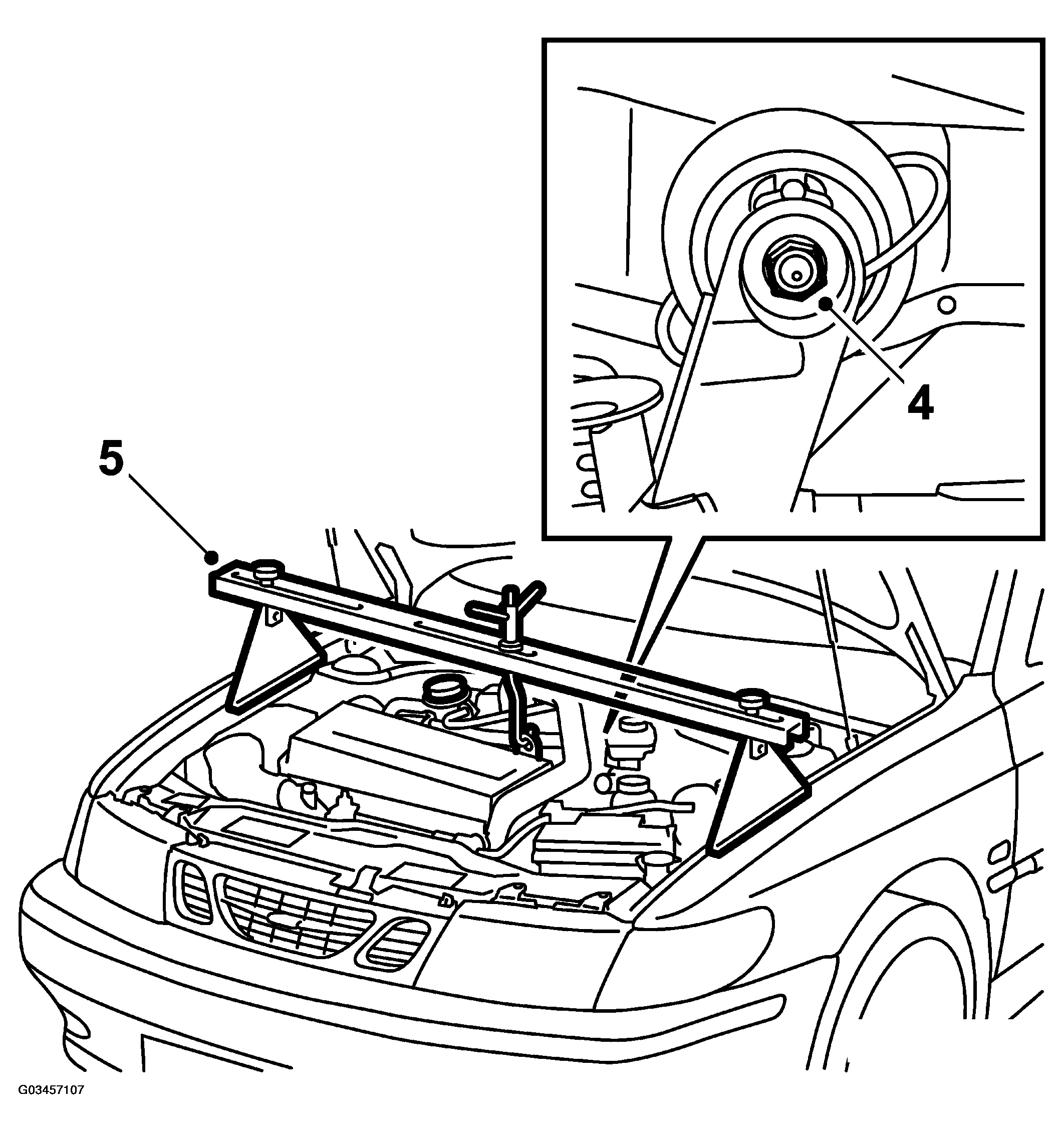

    Fig 1: Removing Bolts Retaining Intake Manifold
    G03457107
  4. Remove the bolts retaining the intake manifold.
  5. Fit 83 94 850 Lifting beam.
  6. Take up the weight of the engine.
  7. Raise the car.
  8. Dismantle the selector lever link and remove the mounting pad nut.

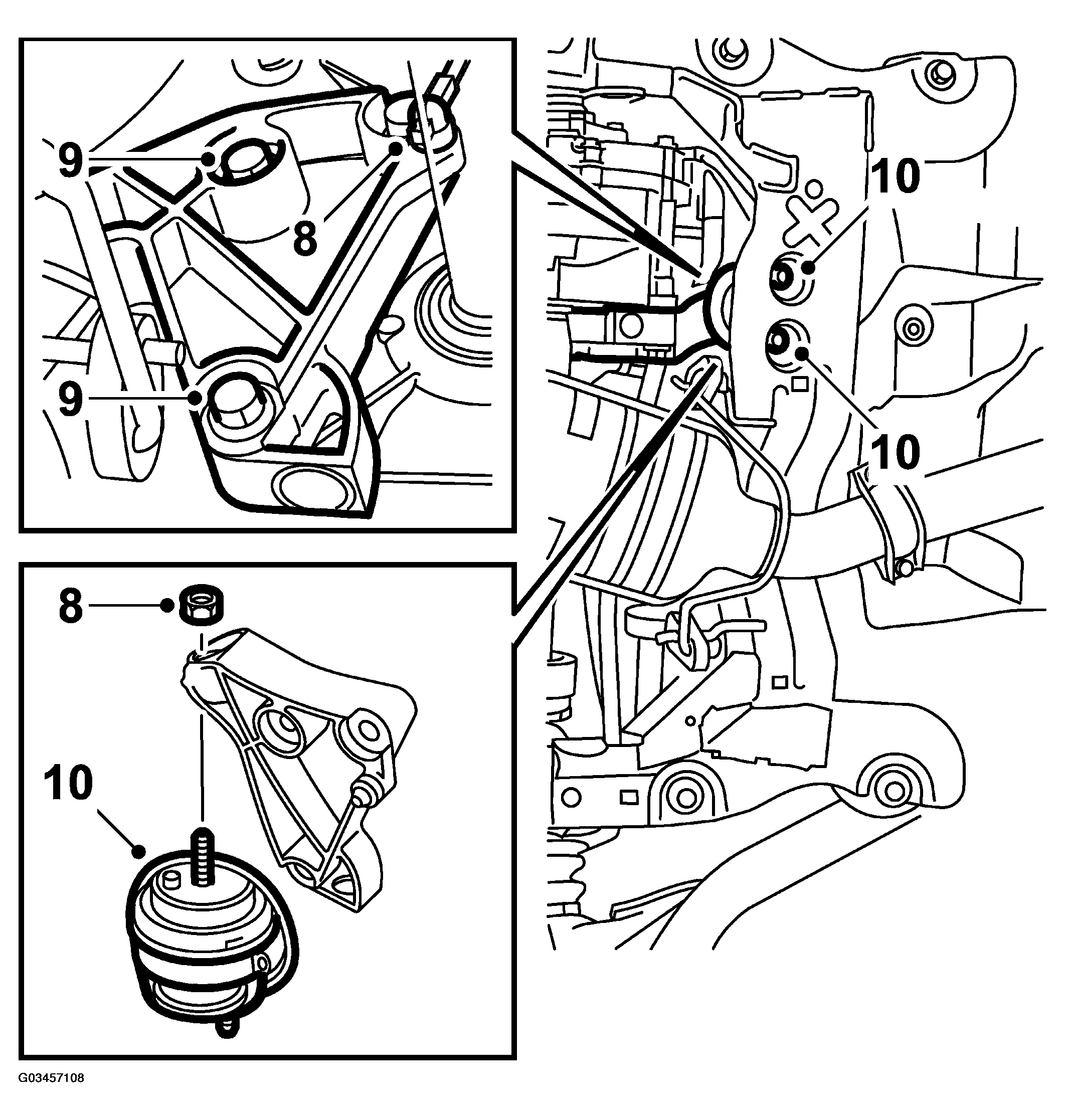

    Fig 2: Removing Engine Mounting Pad From Subframe
    G03457108
  9. Undo and remove the bracket from the gearbox.
  10. Undo and remove the engine mounting pad from the subframe.
