To remove

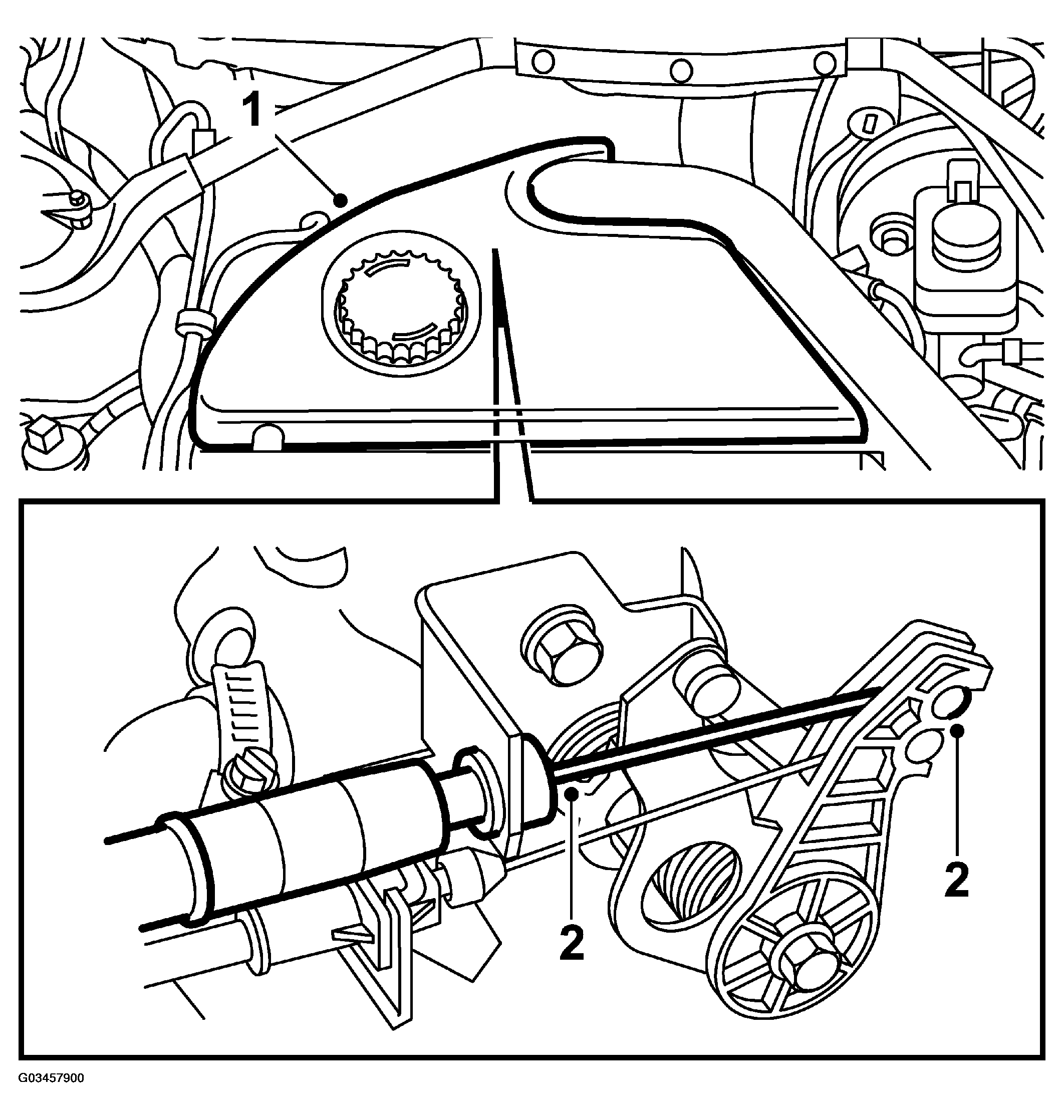

Fig 1: Removing Resonating Chamber Or Cover Over Intake Manifold

Remove the resonating chamber or the cover over the intake manifold.
Undo the clips and unhook the throttle cable from the link arm and cable mounting.
Remove the lower section of the dashboard and unhook the throttle cable from the accelerator.

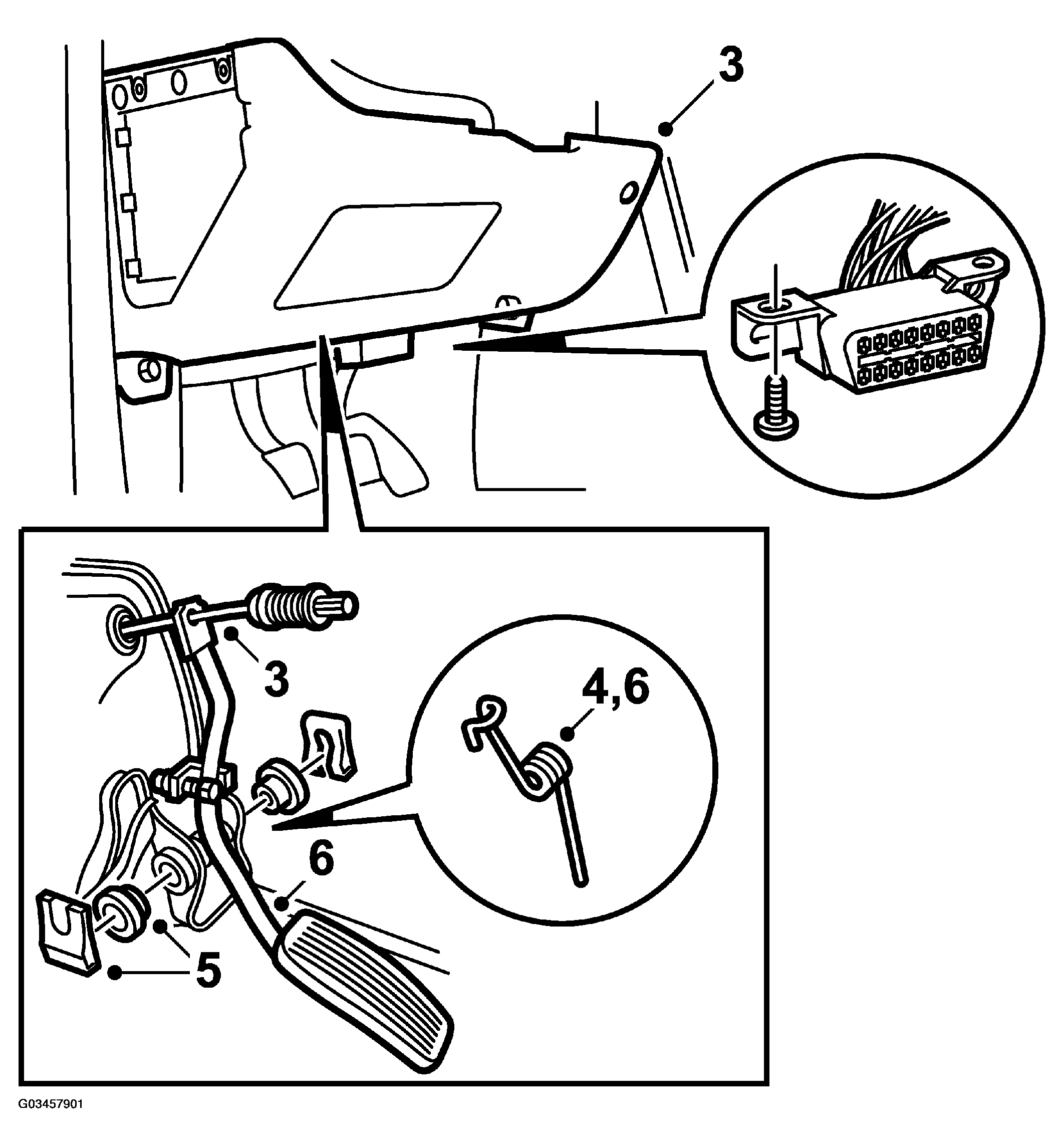

Fig 2: Unhooking Accelerator Pedal's Return Spring
Unhook the accelerator pedal's return spring.
Remove the clips and the bushes.
Extract the accelerator pedal and remove the return spring.
