To remove

  1. Remove the rim around the indicator display.

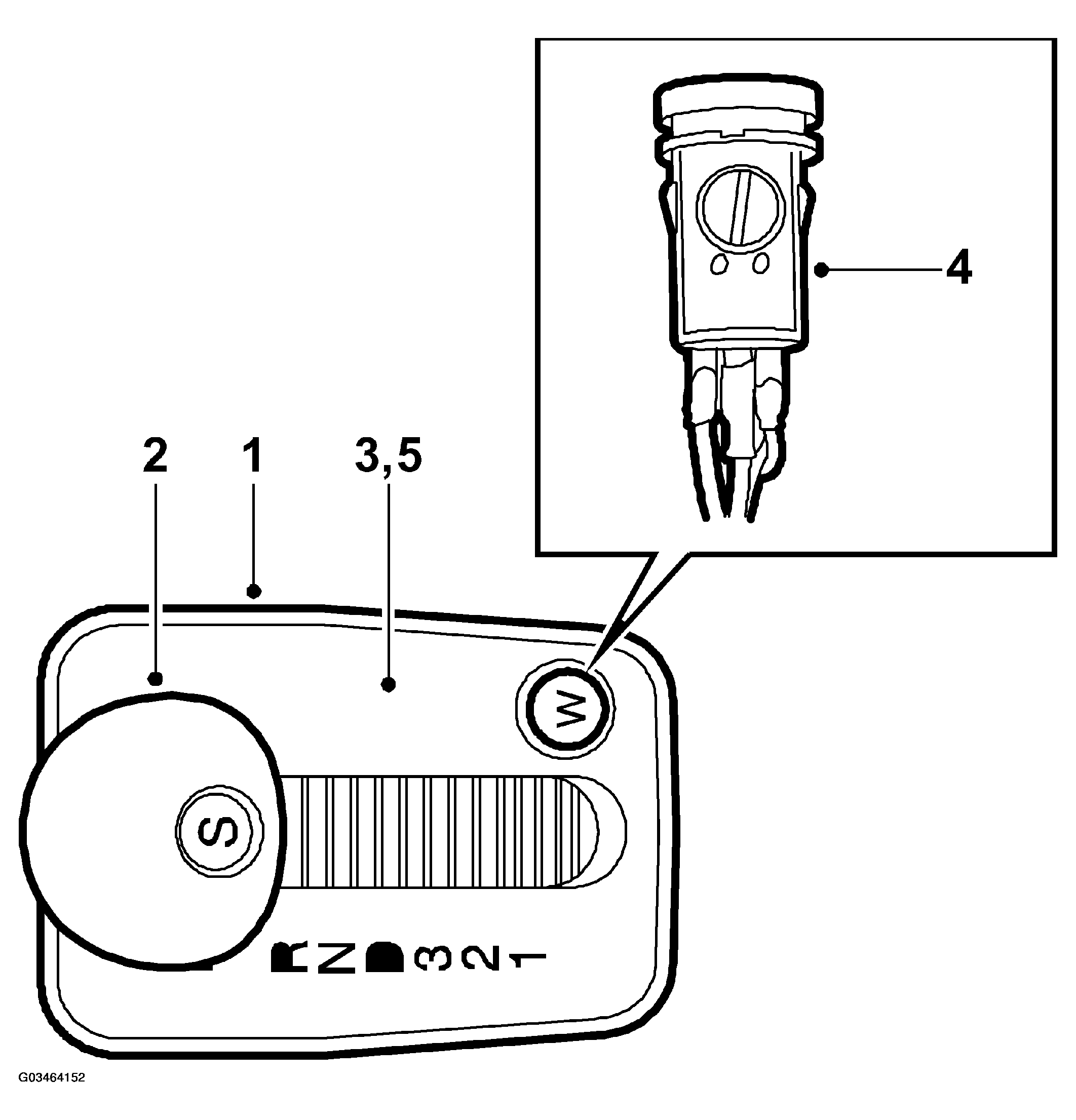

    2. Fig 1: Illustrating Steps 1-5
    G03464152Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Dismantle the selector lever casing, see SELECTOR LEVER CASING .
  3. Lift up the indicator display.
  4. Unsolder the WINTER button, see WINTER BUTTON .
  5. Lift off the indicator display.
