To remove

  1. Move the selector lever to position N or D.
  2. Remove the screw securing the front part of the selector lever casing.

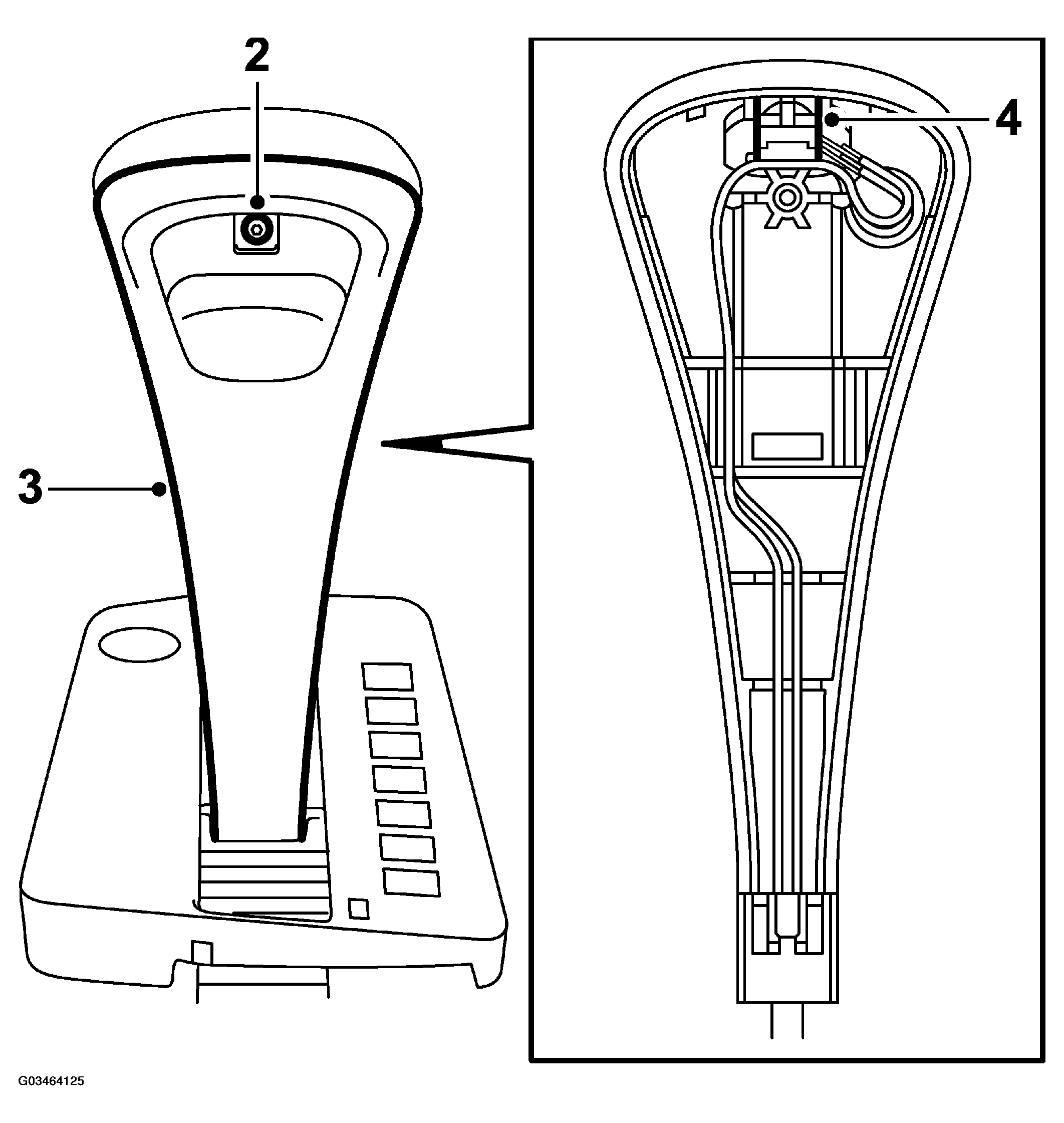

    3. Fig 1: Illustrating Steps 2, 3 & 4
    G03464125Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the front part.
  4. Press up the SPORT button from below.
  5. Unsolder the SPORT button. Place some form of protection under it so that drops of solder do not fall onto the center console.

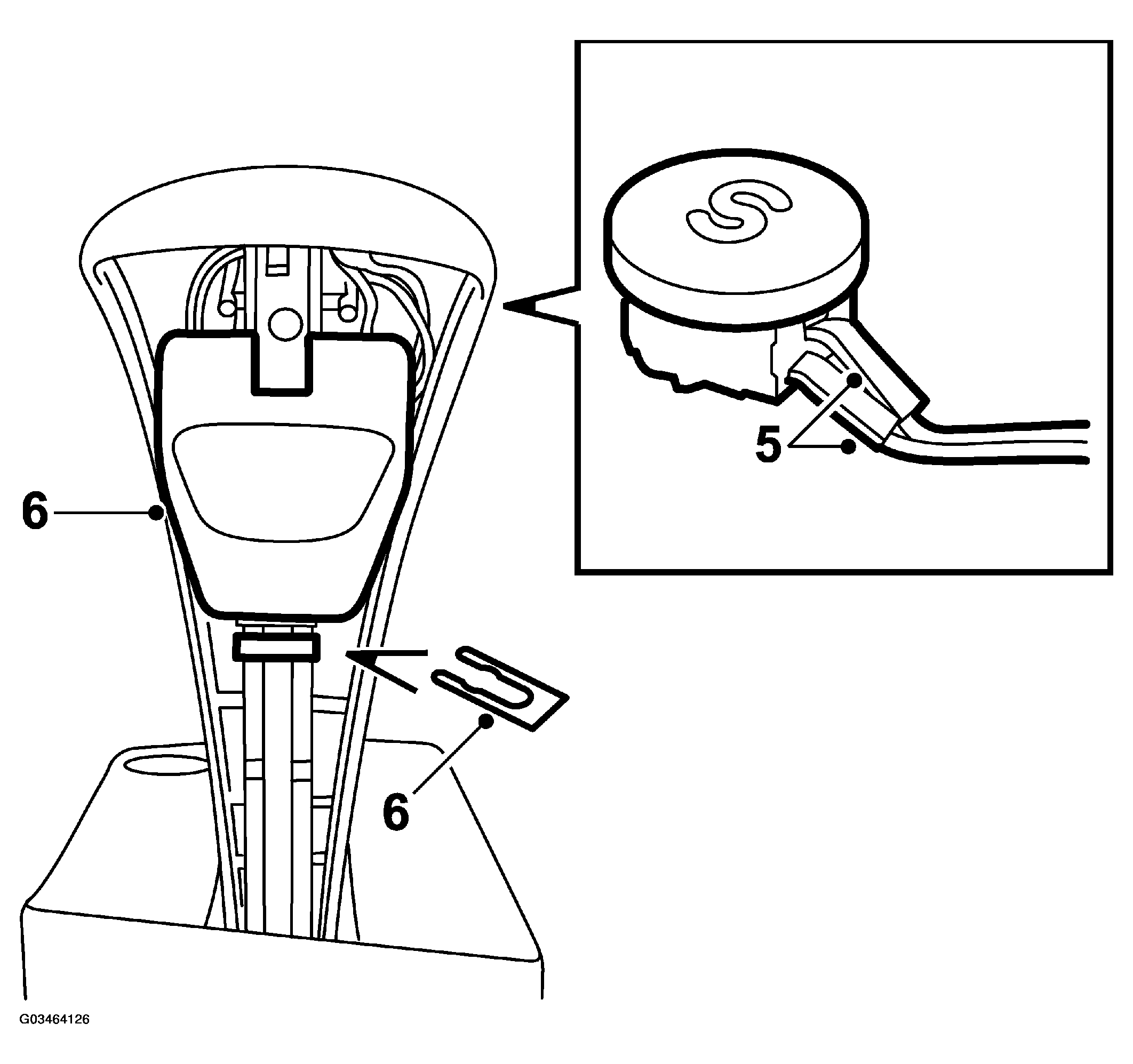

    Fig 2: Illustrating Steps 5 & 6
    G03464126Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the clip and pull up the release button together with the rear part of the selector lever casing. The electric leads remain in the lever casing.
