To remove

Remove the selector lever housing, see SELECTOR LEVER HOUSING .
IMPORTANT: When working on a dismantled selector lever housing, the selector lever should be protected with foam rubber or the like.
Cut the cable ties.

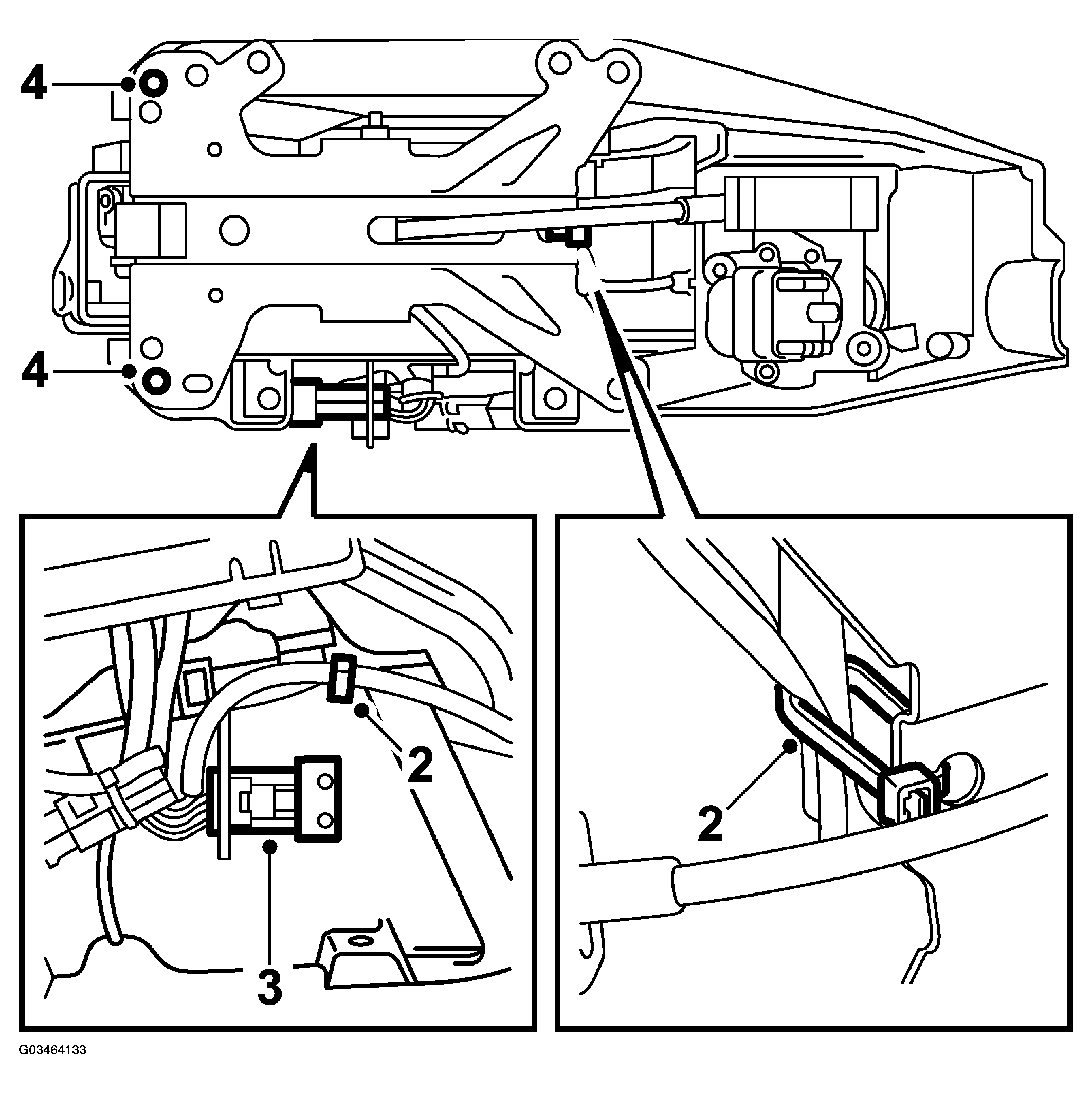

Fig 1: Illustrating Steps 2-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the pins for the electromagnet from the connector, pins 5 and 6 in the 6- pin connector and pin 2 in the 2-pin connector.
NOTE: Note the location of the 3 pins in the connector.
Drill out the rivets, using a three-millimeter bit.
Separate the upper and lower parts of the selector lever housing slightly at the front and undo the screws on the electromagnet.

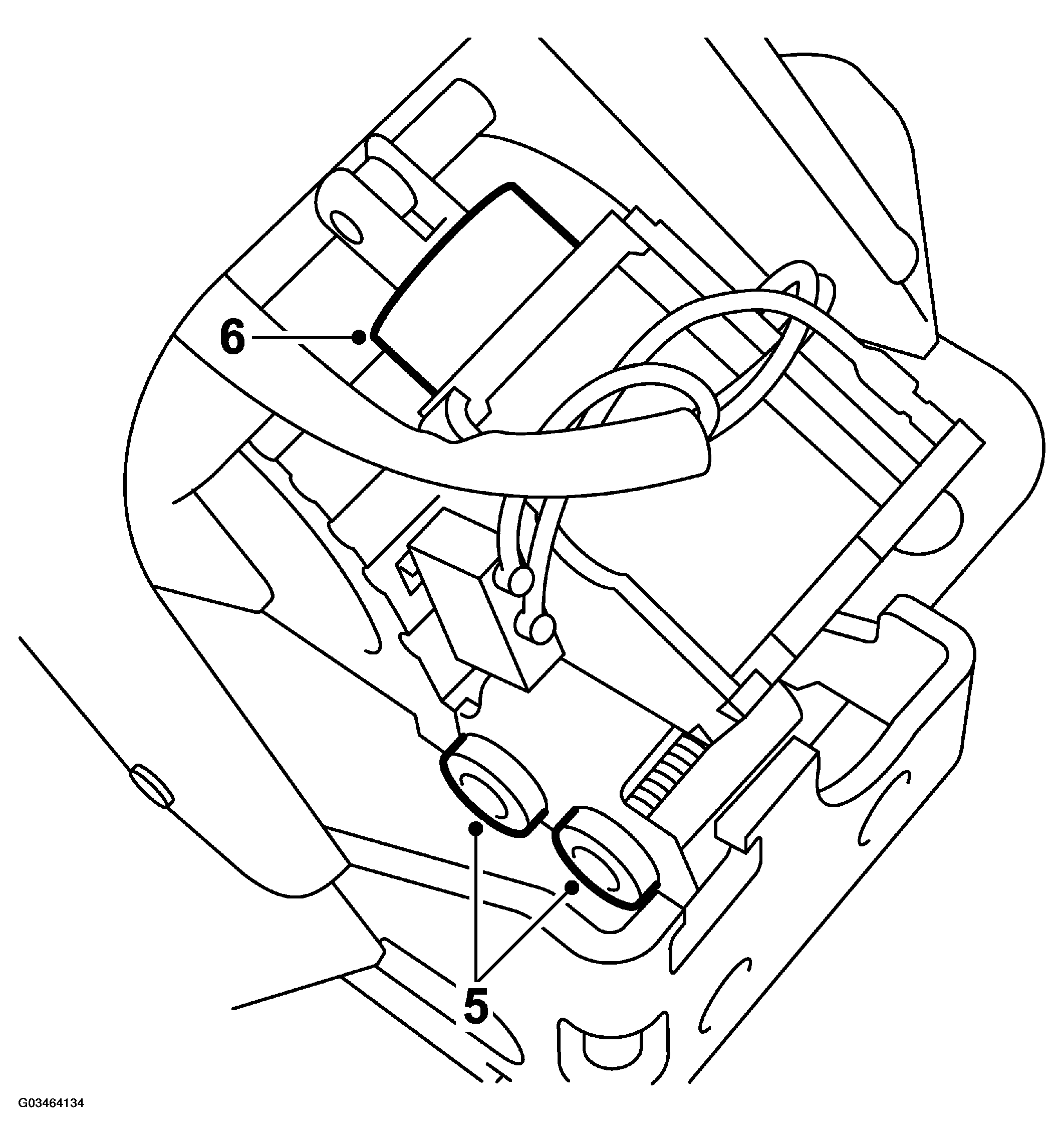

Fig 2: Illustrating Steps 5 & 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the lever on top of the electromagnet and remove the electromagnet.
