To remove

  1. Remove the rim around the indicator display.

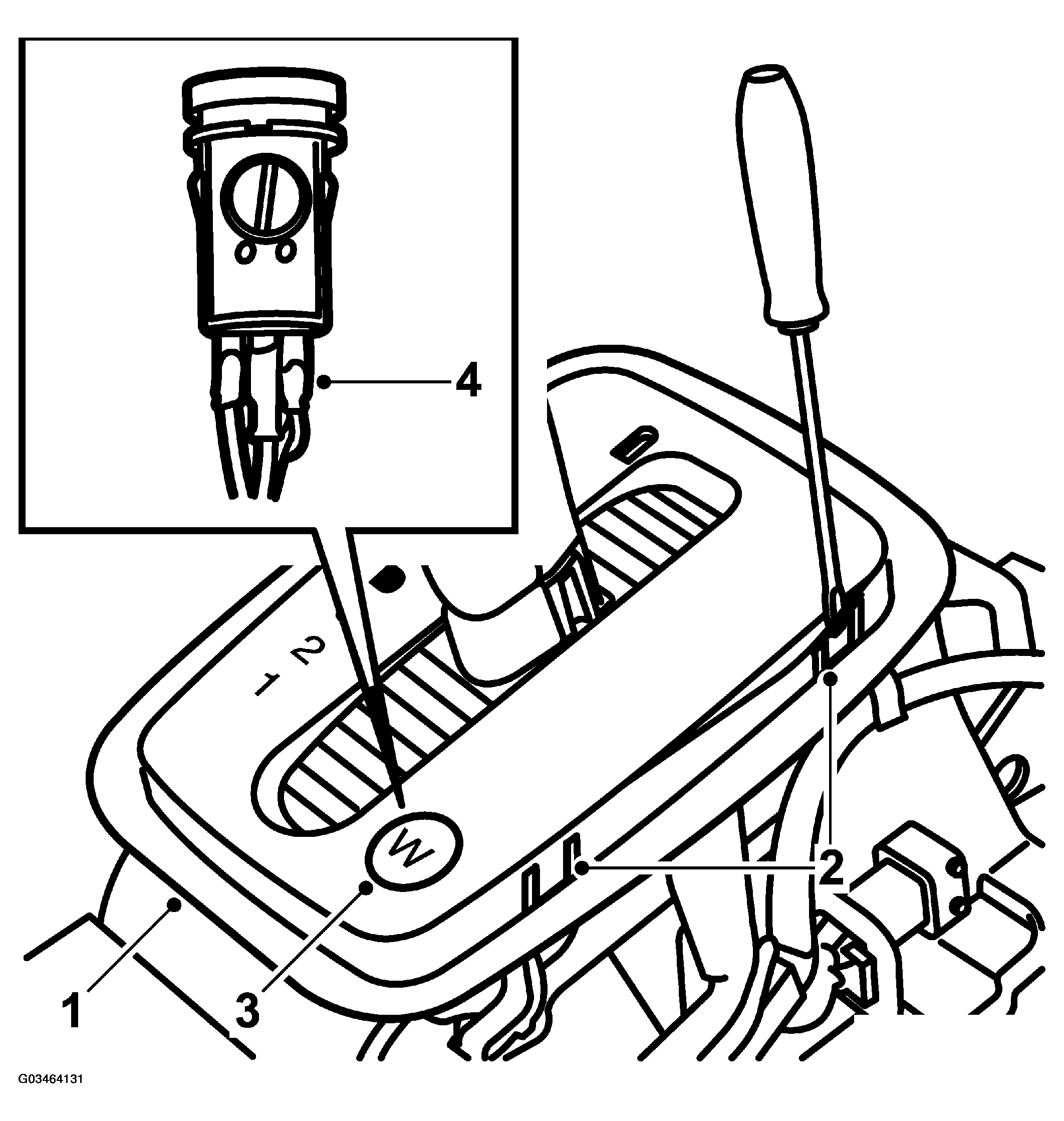

    2. Fig 1: Illustrating Steps 1-4
    G03464131Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully press in the 4 catches and lift up the indicator display.
  3. Press out the WINTER button from the indicator display.
  4. Move the protective tubing from the soldered joint on the center wire and unsolder the wiring.
NOTE: Protect the indicator display when soldering
