Checking the RESUME function: Notes

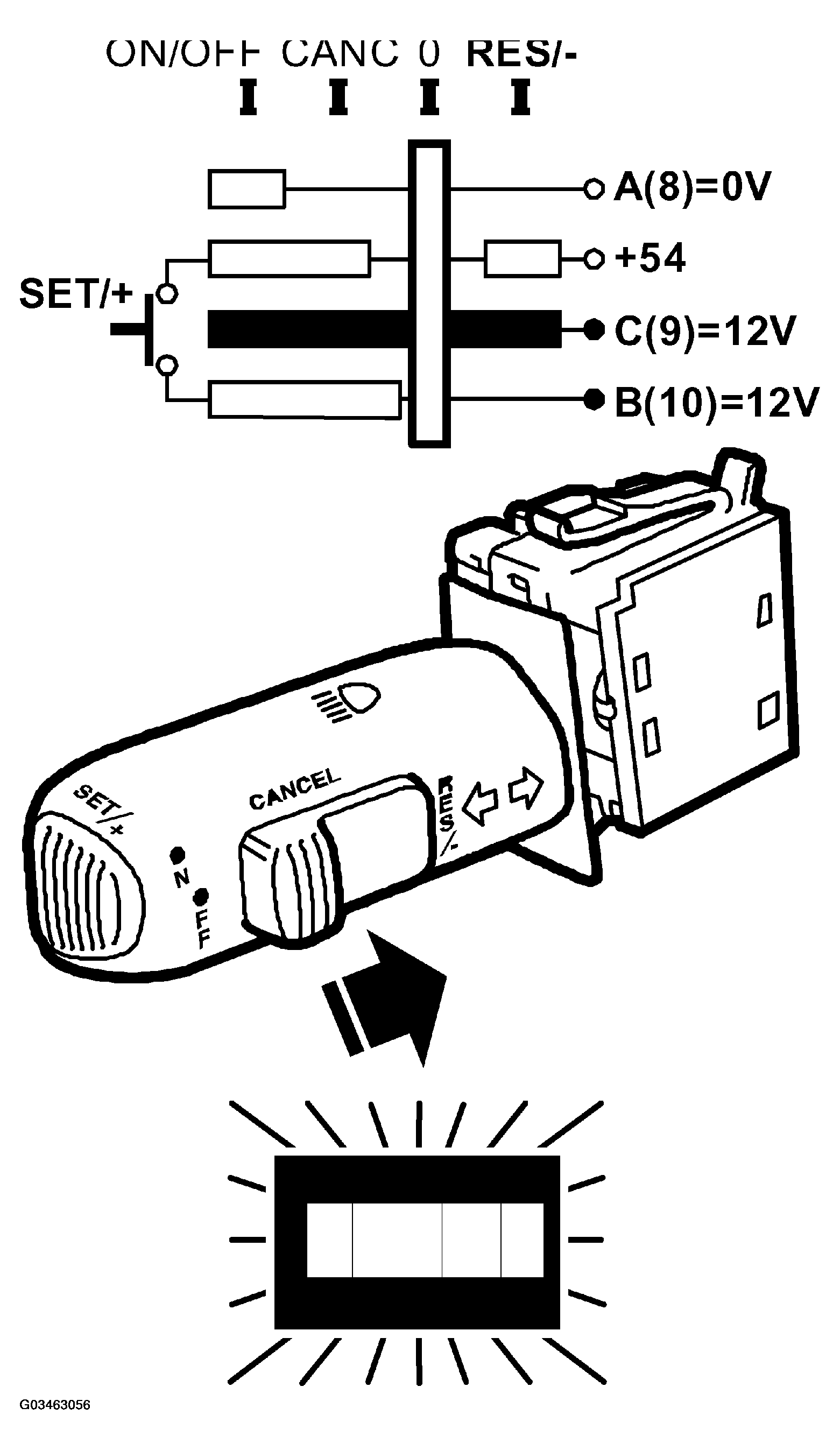

Fig 1: Checking Resume Function Switch

G03463056

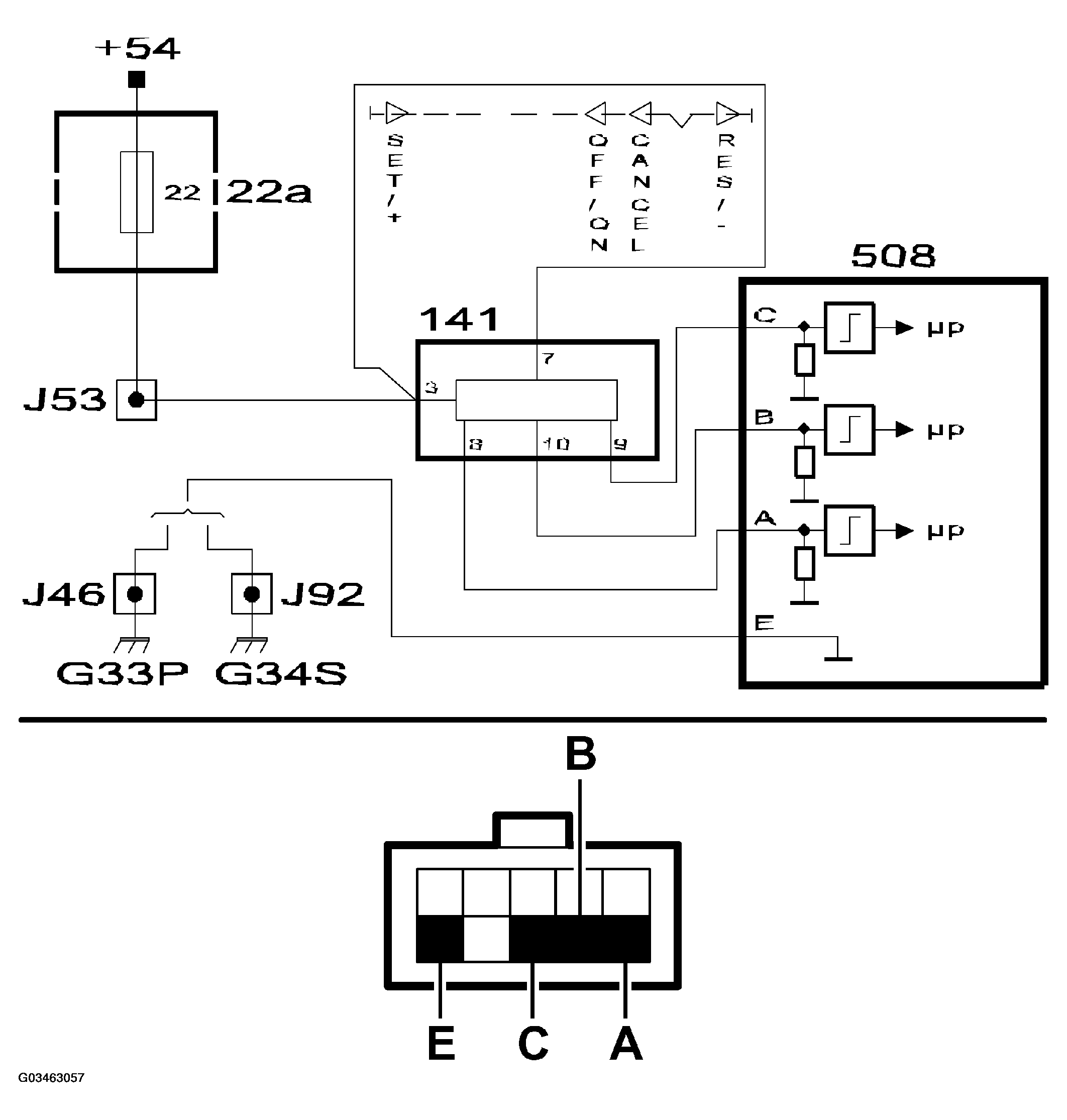

Fig 2: Checking Resume Function Switch Wiring

G03463057
