To fit

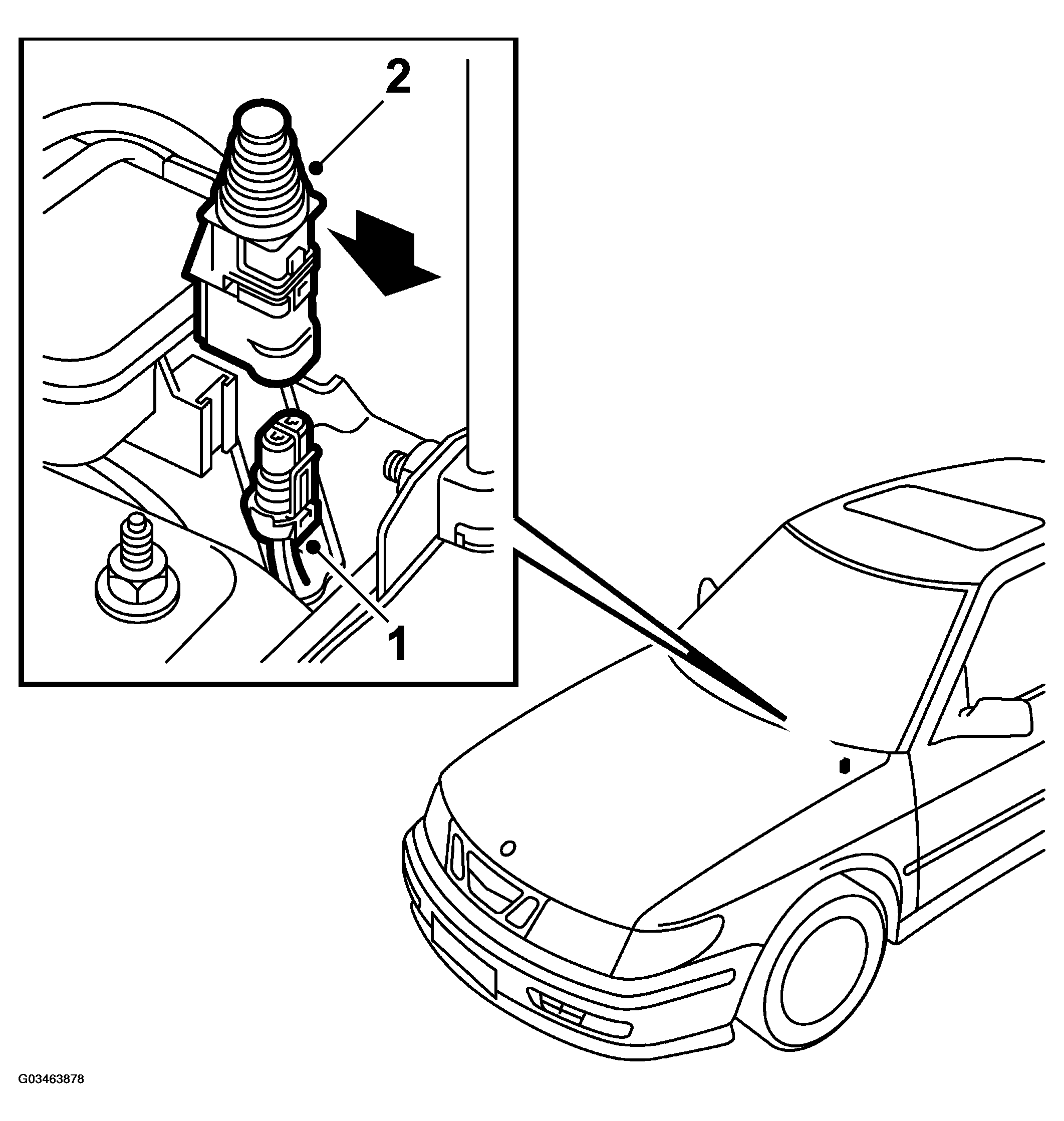

Fig 1: Installing Bonnet Switch
G03463878Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Push the electrical connector into the bonnet switch.
  2. Fit the bonnet switch into its holder.
