Door switches

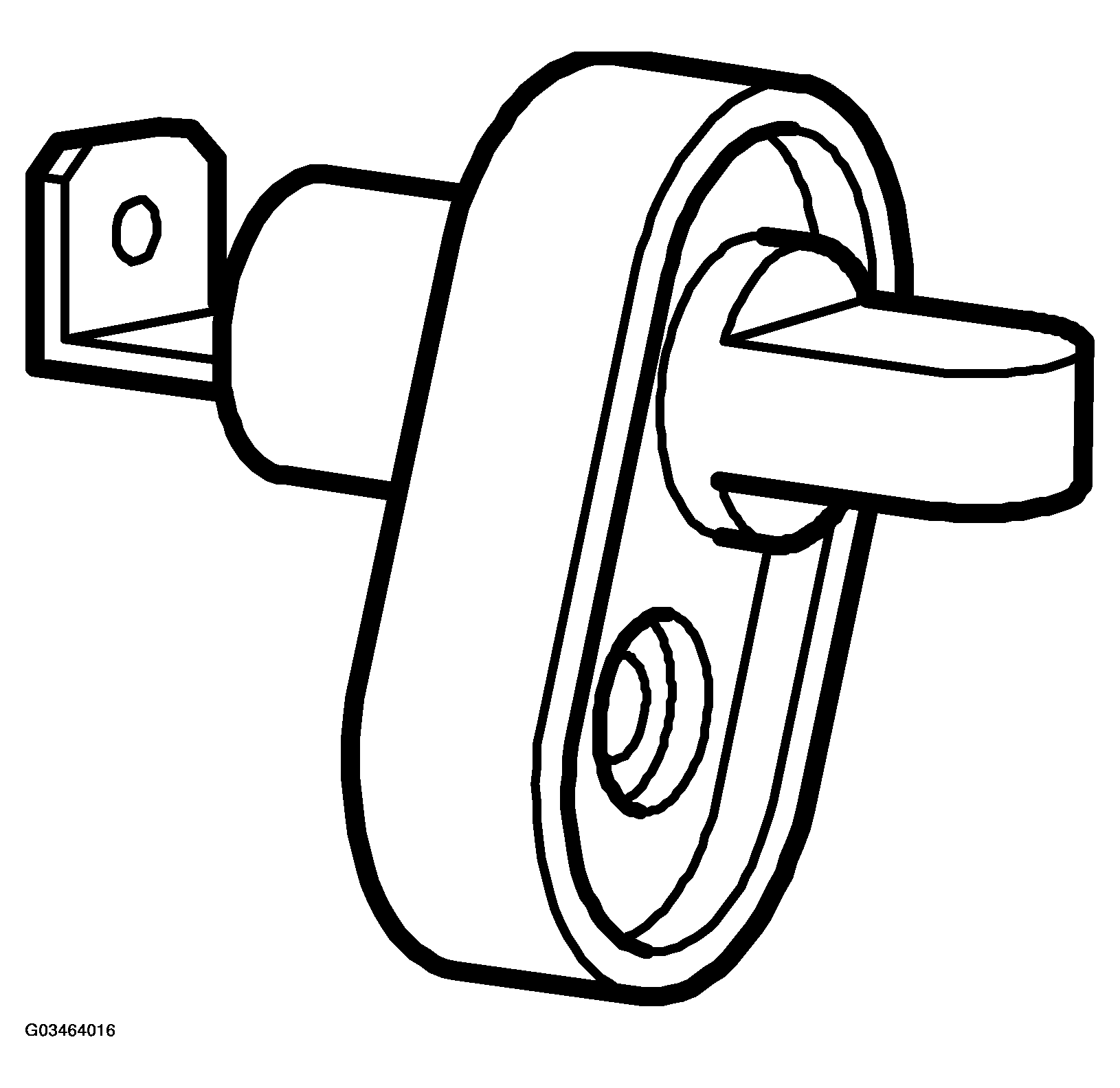

Fig 1: View Of Door Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

DOOR SWITCH LOCATION AND TYPE

Location		Door frame
Type		Normally open when door is closed.
Power supply PWM approx. 3.5%	Pin No.	1
Ground		Casing
