System overview

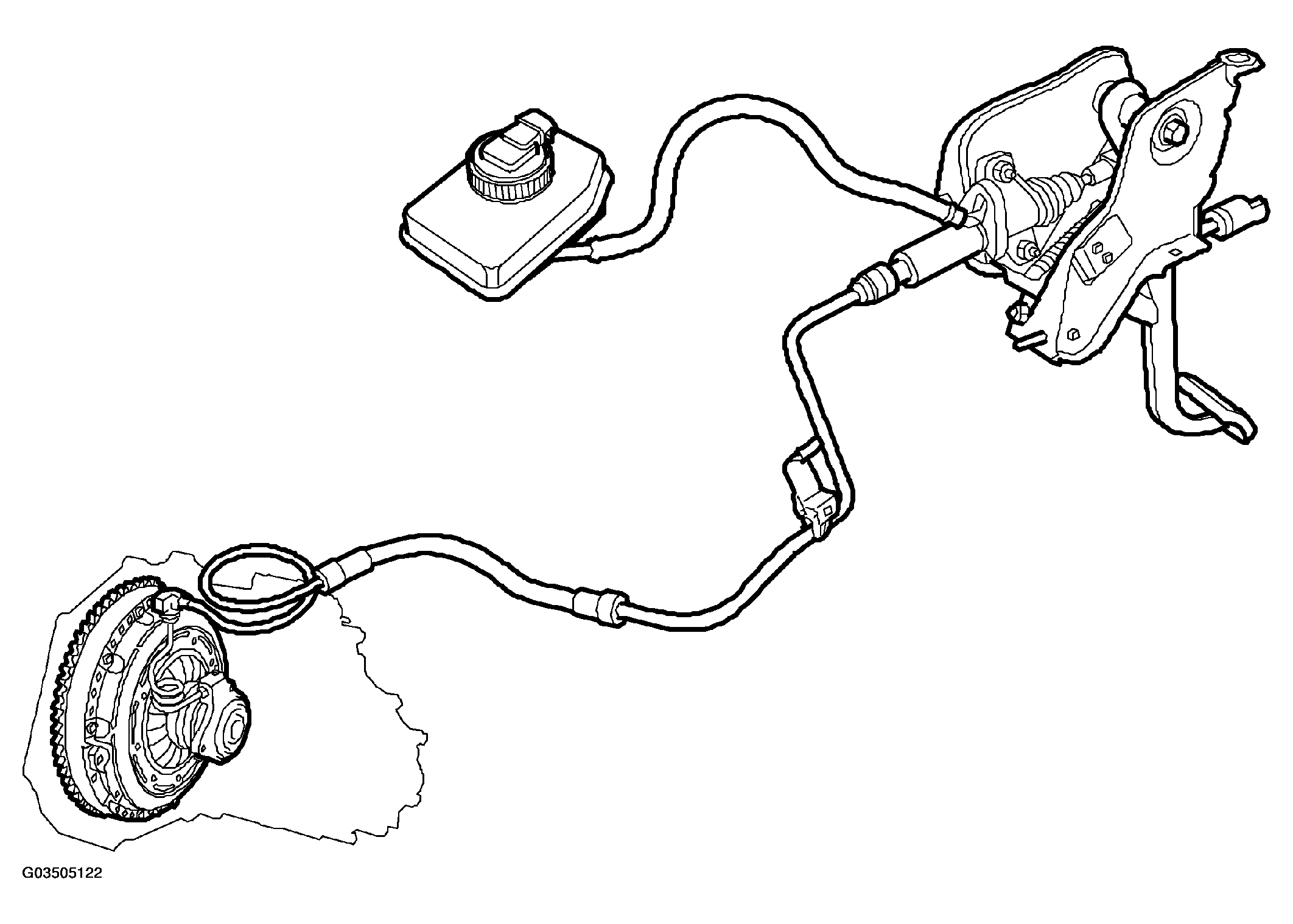

Fig 1: Power Transfer From Engine To Gearbox Via Clutch - System Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Power from the engine is transferred to the gearbox via a clutch. The clutch comprises a dry-plate clutch and a diaphragm spring pressure plate. Operation of the clutch is entirely hydraulic and self-adjusting.
