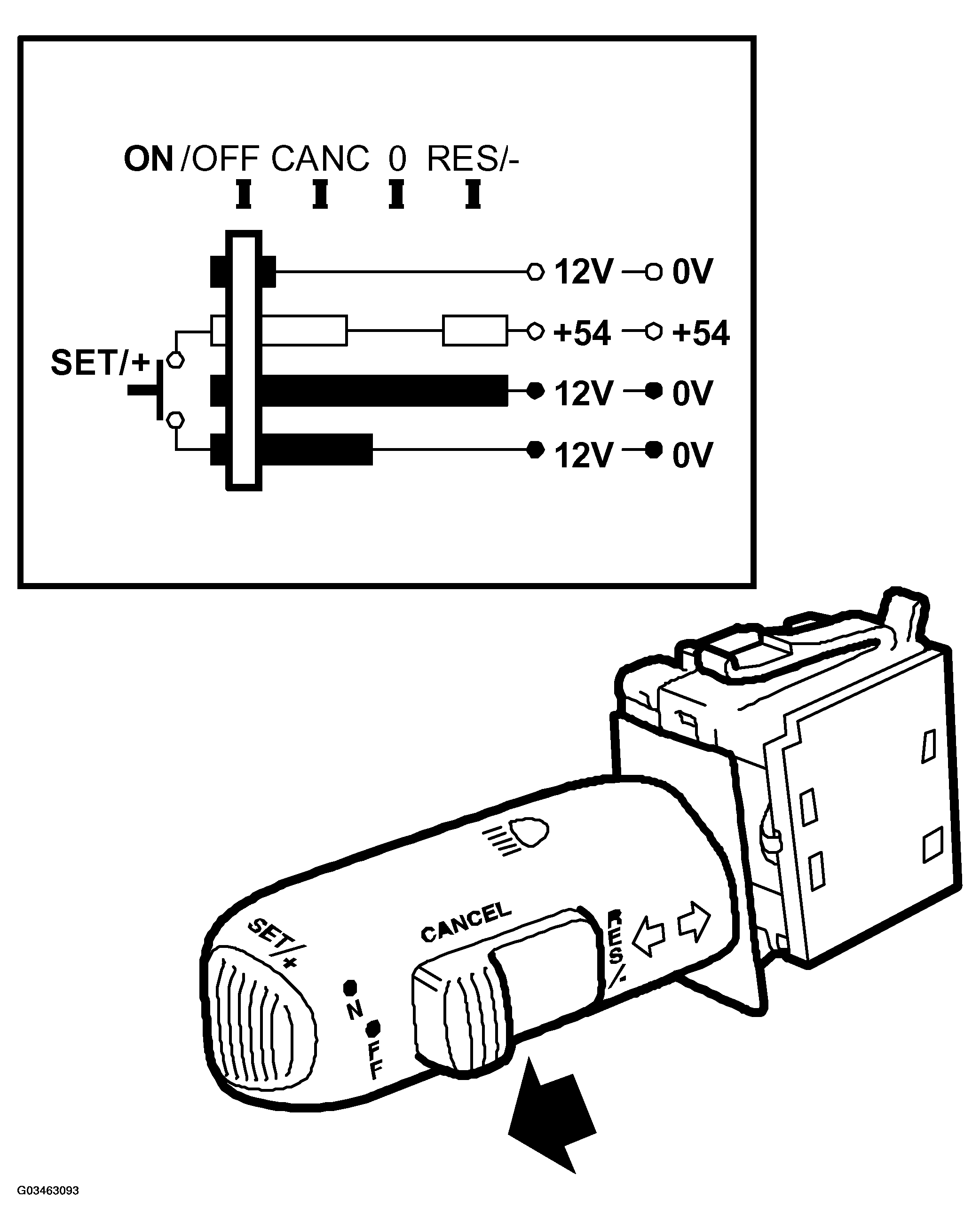

Technical Description: Switch: On/Off:
To the extreme left of the spring-loaded neutral position is the ON/OFF position.
In the ON/OFF position, current is supplied to control module terminals A, B and C.
The ON/OFF position has two functions: the first time the button is activated it is in the ON position, the second time it is in the OFF position, and so on.
If none of the terminals is supplied with current, ON/OFF will be inoperative.
