To remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rim around the indicator display.

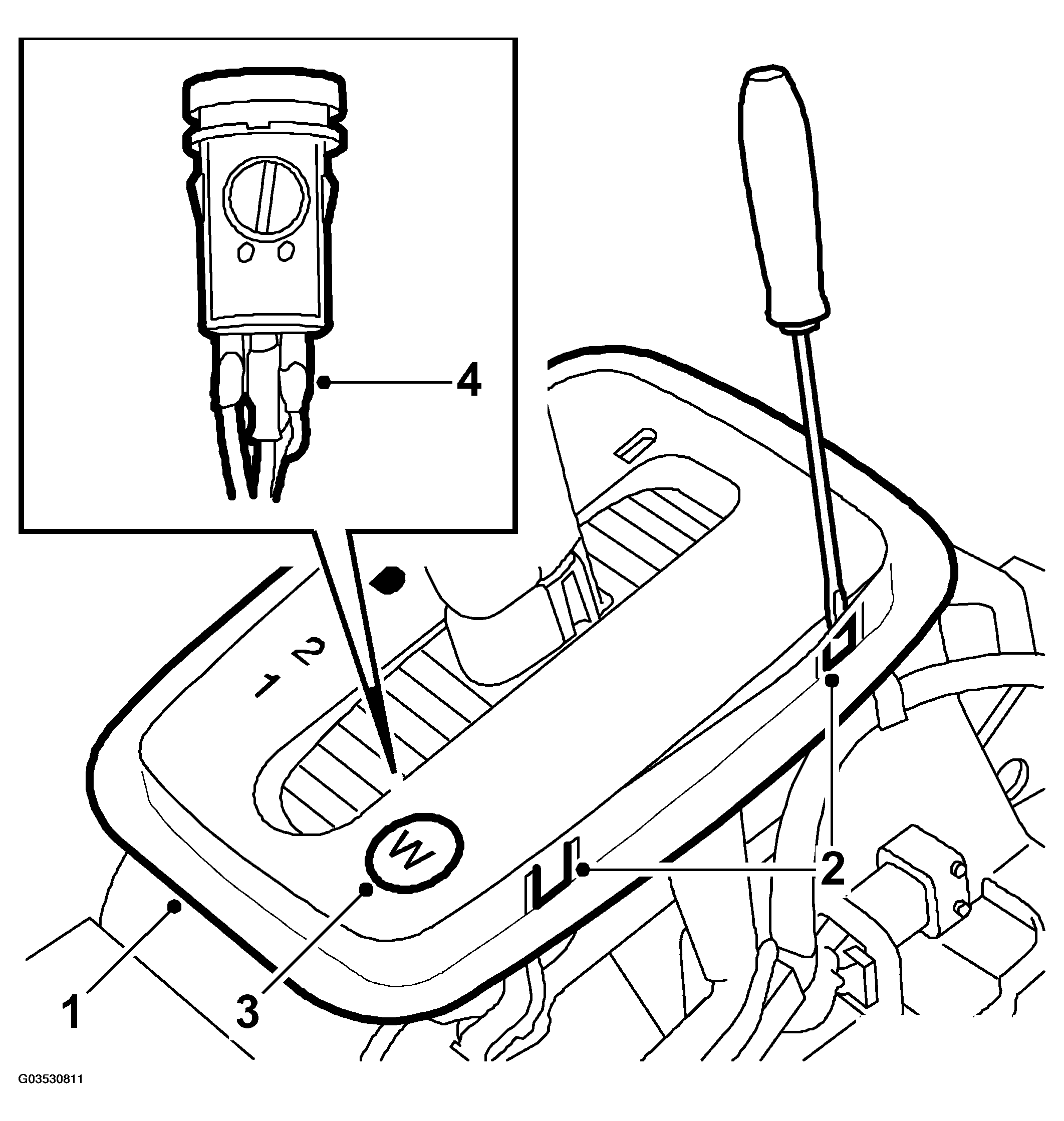

    2. Fig 1: Illustration For Steps 1-4
    G03530811Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully press in the 4 catches and lift up the indicator display.
  3. Press out the WINTER button from the indicator display.
  4. Move the protective tubing from the soldered joint on the centre wire and unsolder the wiring.
    NOTE: Protect the indicator display when soldering
