ABS function: Notes

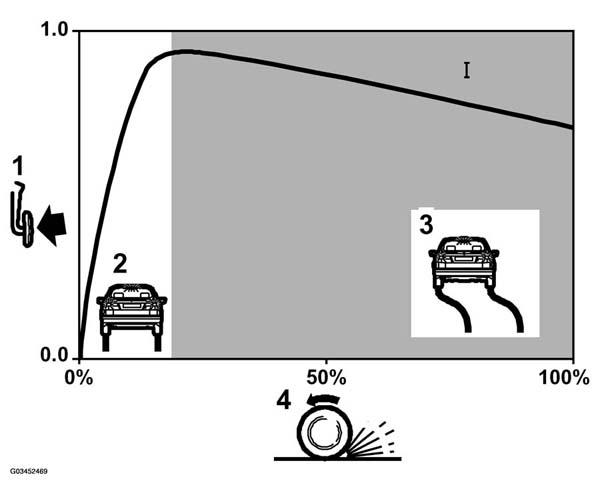

Diagram 1: Braking force as a function of slip.

Vertical axis = Braking force

Horizontal axis = Slip

  1. Braking force
  2. Stable braking zone
  3. Unstable braking zone
  4. Slip

The ABS system provides optimum braking without any loss of directional stability.

Fig 1: Identifying Braking Force As A Function Of Slip (Diagram 1)
G03452469

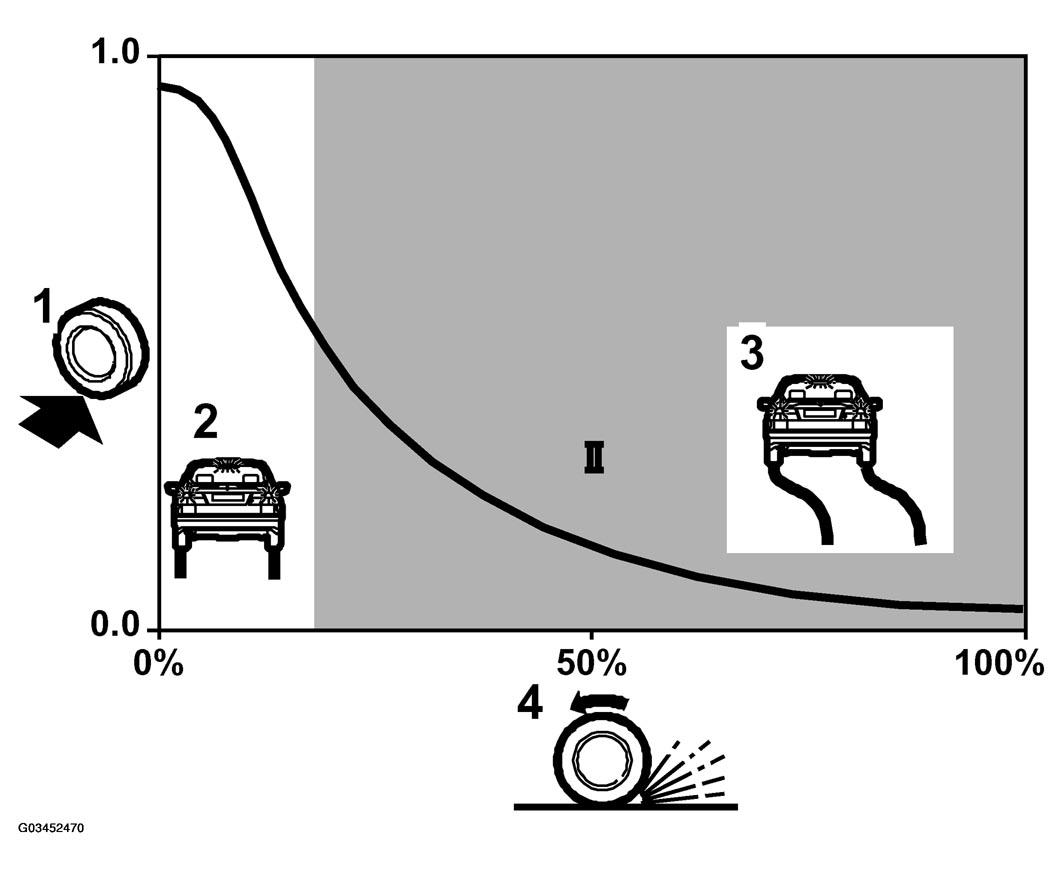

Fig 2: Identifying Lateral Force As A Function Of Slip (Diagram 2)
G03452470
