To Fit

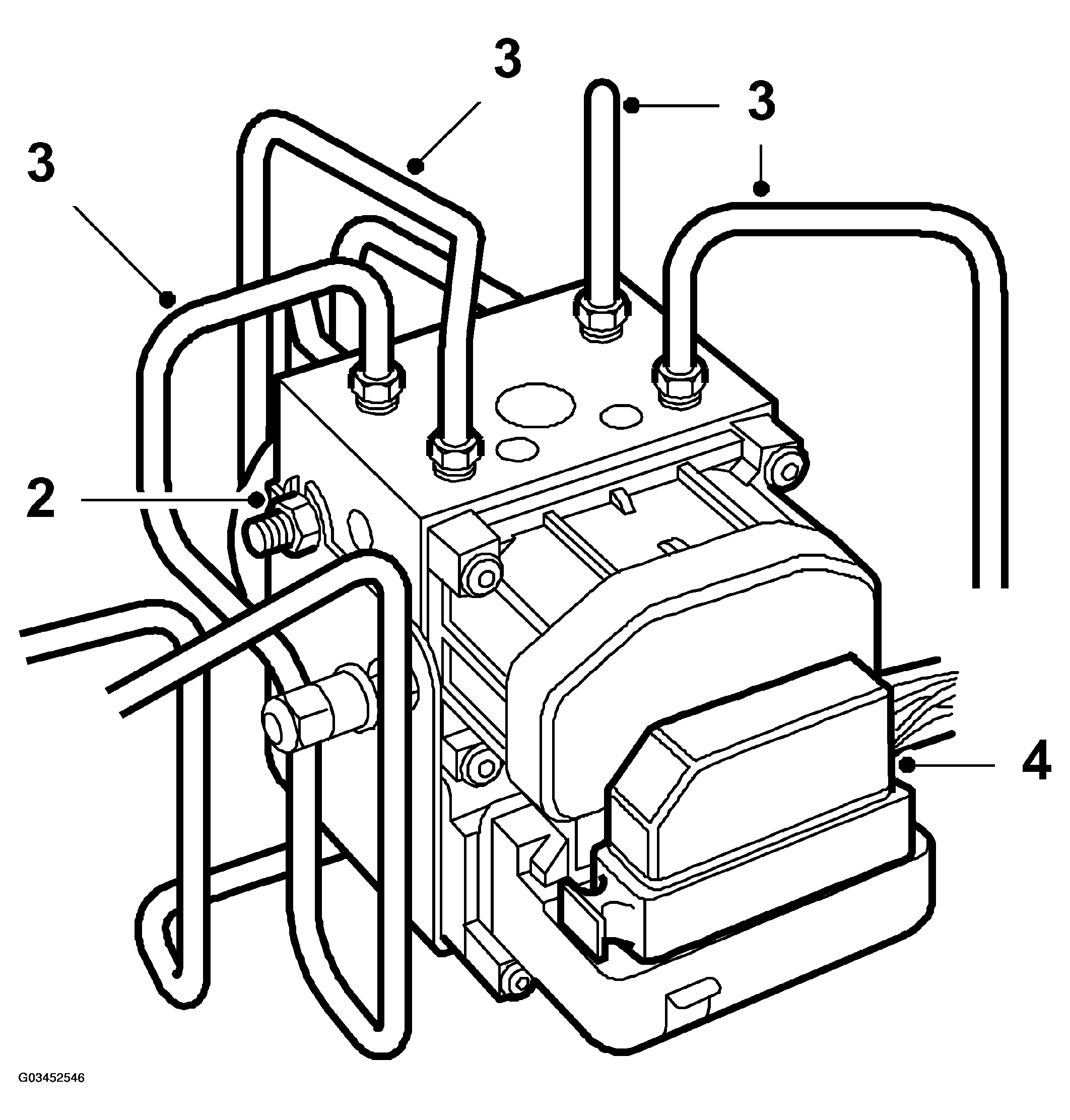

Fig 1: Installing TC/ABS Unit With Control Module

Lift the hydraulic unit into position, taking care not to damage the pipes.
Fit the two nuts.
1. Tightening torque: 20 Nm (14.8 lbf ft)
Remove the plugs and reconnect the brake pipes. Fit the brake-pipe nipples (rear pipes first) finger tight and then tighten with a spanner.
Plug in the connector and fit the fuse box.
Secure the battery lead to the fuse box with a cable tie.

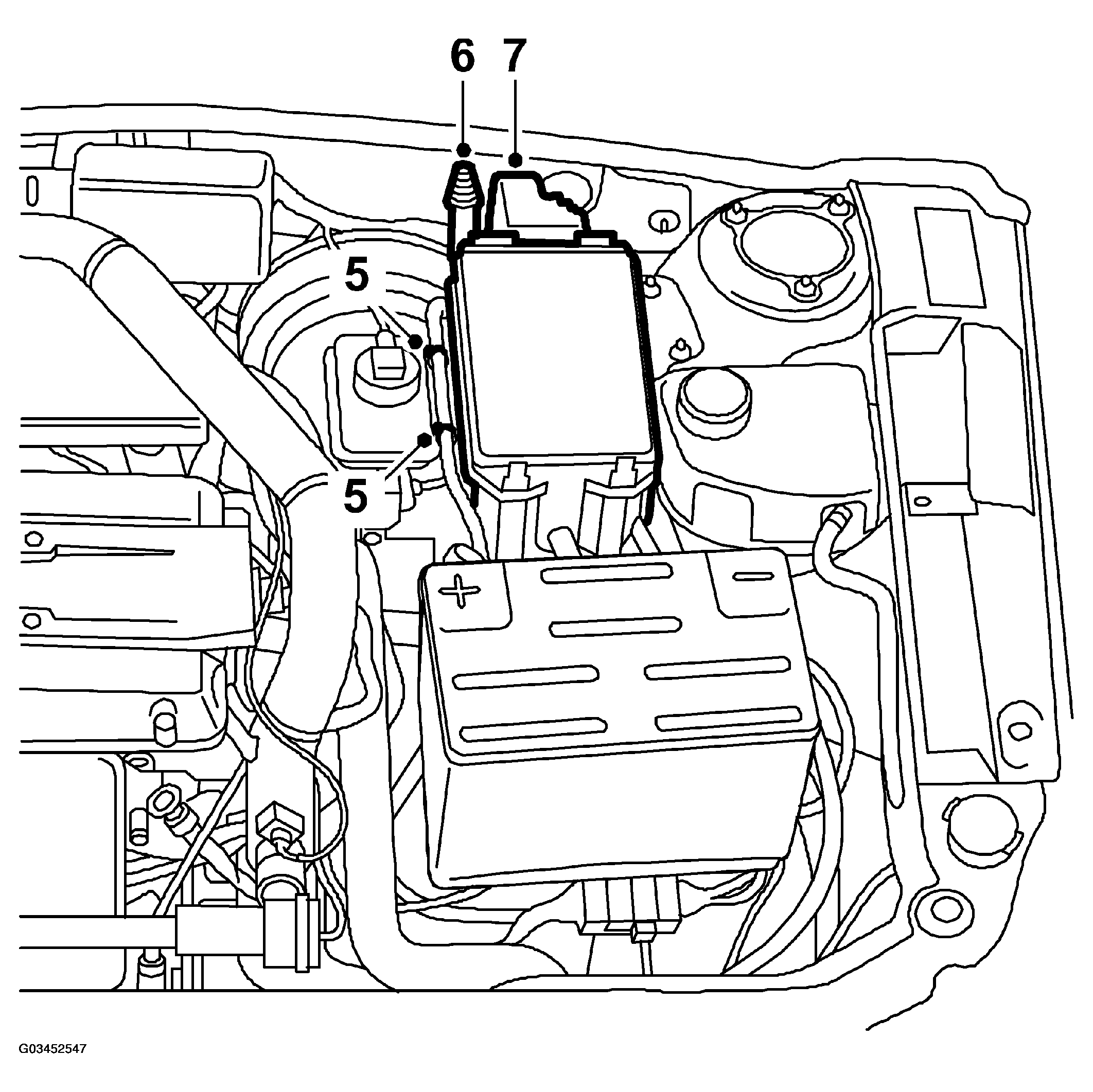

Fig 2: Securing Battery Lead To Fuse Box With Cable Tie
Plug in the connector to the anti -theft alarm.
Hook on the Maxi-fuse holder.
Bleed the brake system, see BLEEDING BRAKE SYSTEM .
