System overview

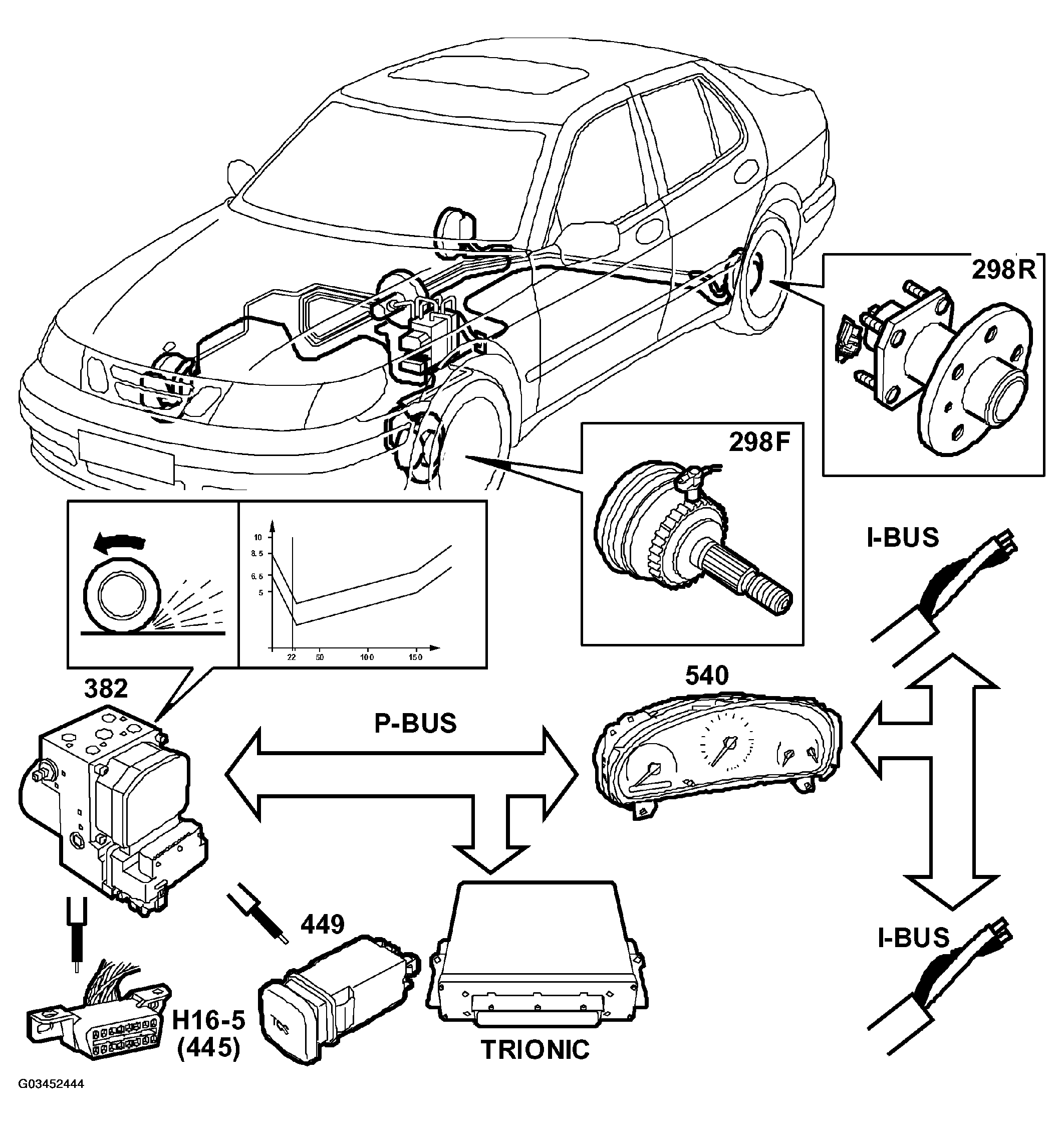

Fig 1: Identifying Brake System Overview

G03452444

REAR-WHEEL SENSORS
FRONT-WHEEL SENSORS
HYDRAULIC UNIT including CONTROL MODULE , valve housing and return pump (382).
Engine control module
Switch, TCS (449)
Main instrument unit, MIU (540)
DIAGNOSTICS COMMUNICATION
