To remove
- Raise the car and remove the wheel.
- Press the brake pistons back, using a pair of slip-joint pliers.
- Remove the brake caliper's two retaining bolts. Remove the brake pipe from the clips. Use a cable tie to hang the brake caliper up out of the way.
- Back off the adjustment for the handbrake shoes (accessible through a hole in the brake disc).
- Remove the lever return spring.
- Detach the handbrake cable from the lever.

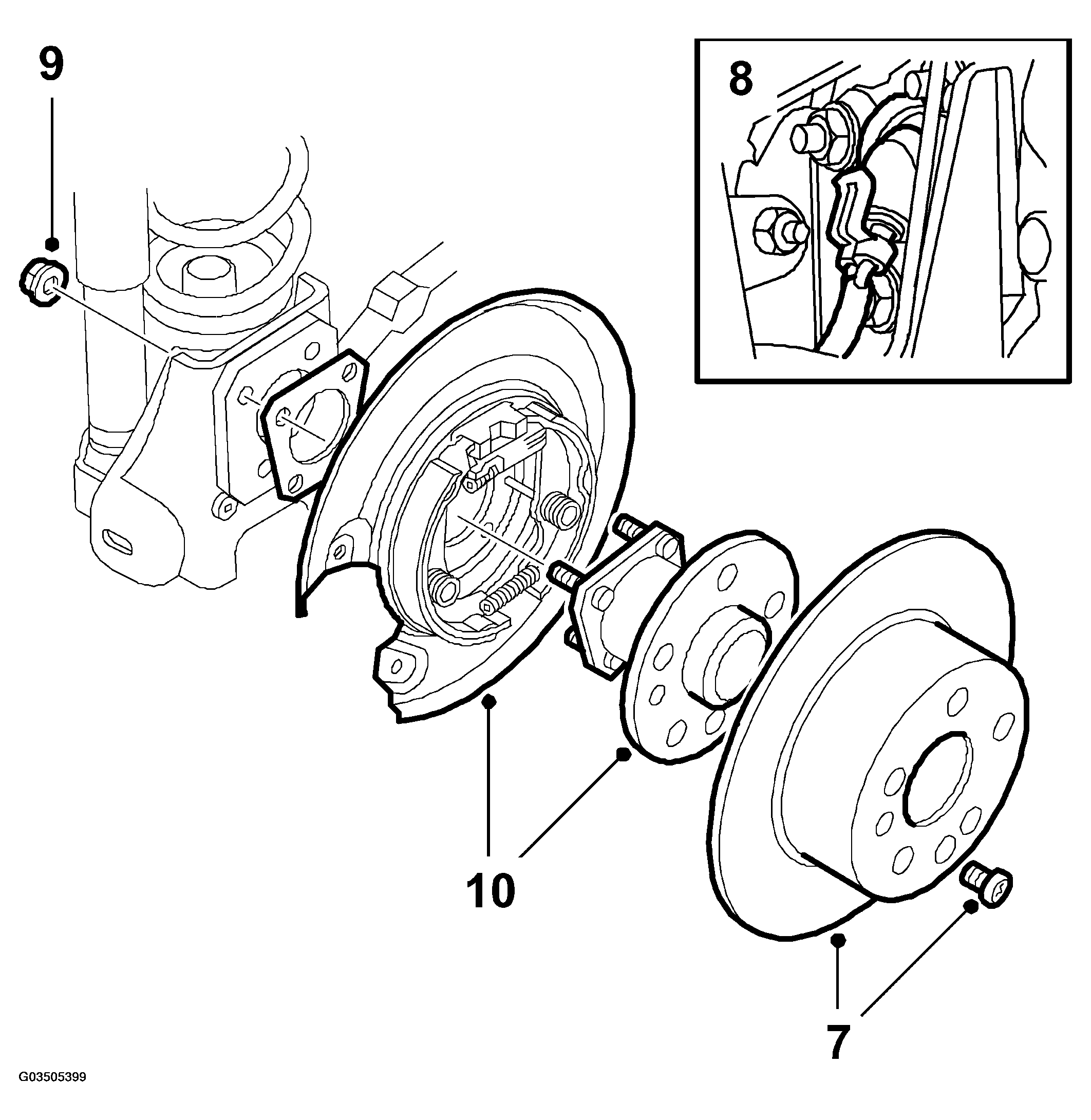

- Remove the brake disc retaining bolts and take off the brake disc.
- Separate the wheel sensor connector.
- Remove the four wheel-hub nuts.
- Remove the wheel hub, back-plate and spacer.
Separate the wheel hub from the back-plate.
