Rear-wheel sensors

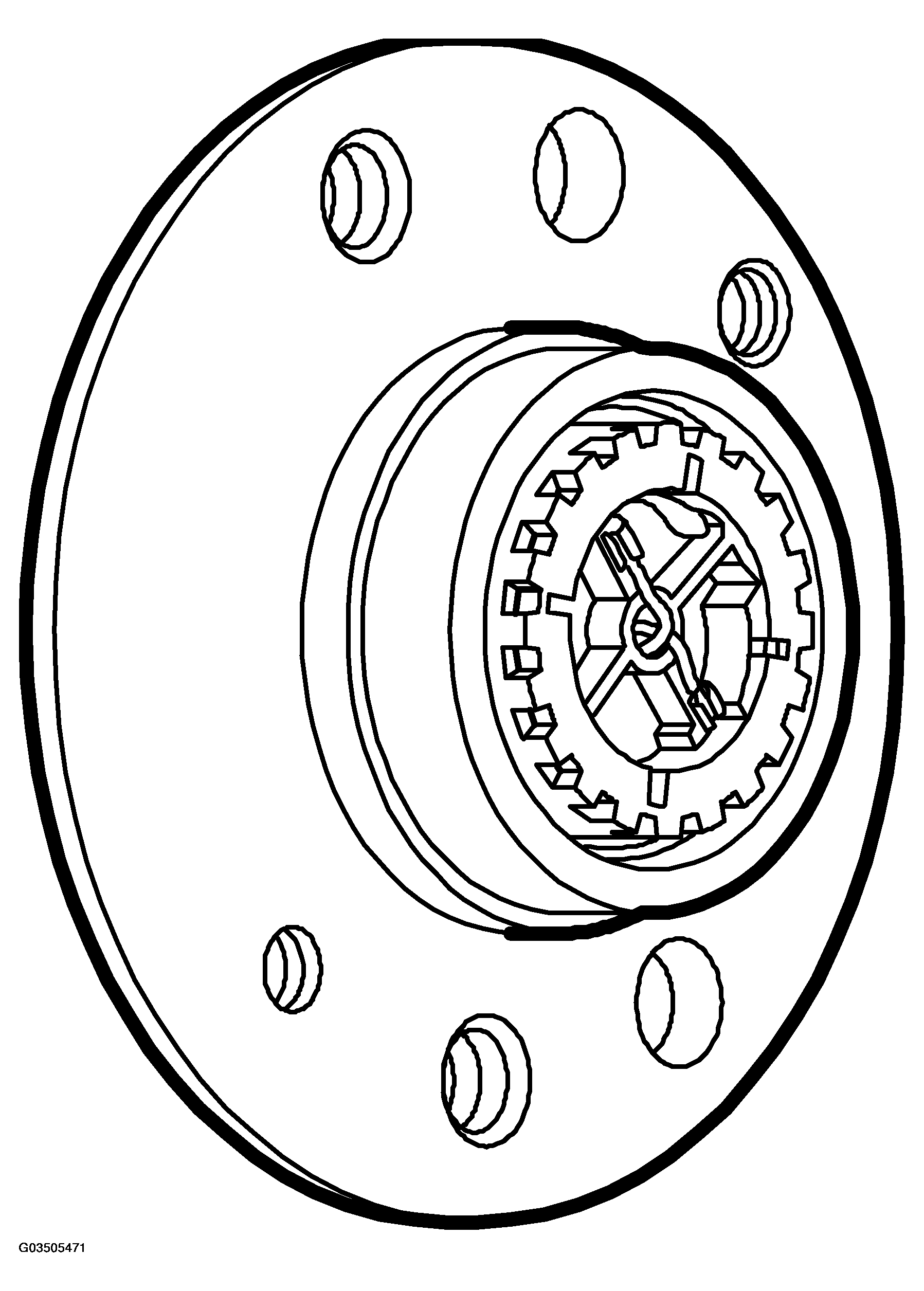

Fig 1: Identifying Rear-Wheel Sensors

G03505471

Courtesy of SAAB-SCANIA OF AMERICA, INC.

REAR-WHEEL SENSORS - TECHNICAL DATA

Operating voltage, min.	mVAC	120 at 2.75 km/h
Operating voltage, max.	VAC	100 at 280 km/h
Resistance	Ohm	1130 +/-115 at +20°C
Number of teeth	qty	29
