To Fit
- Clean the attachment points of the generator and coat them with Vaseline so as to prevent oxidation.

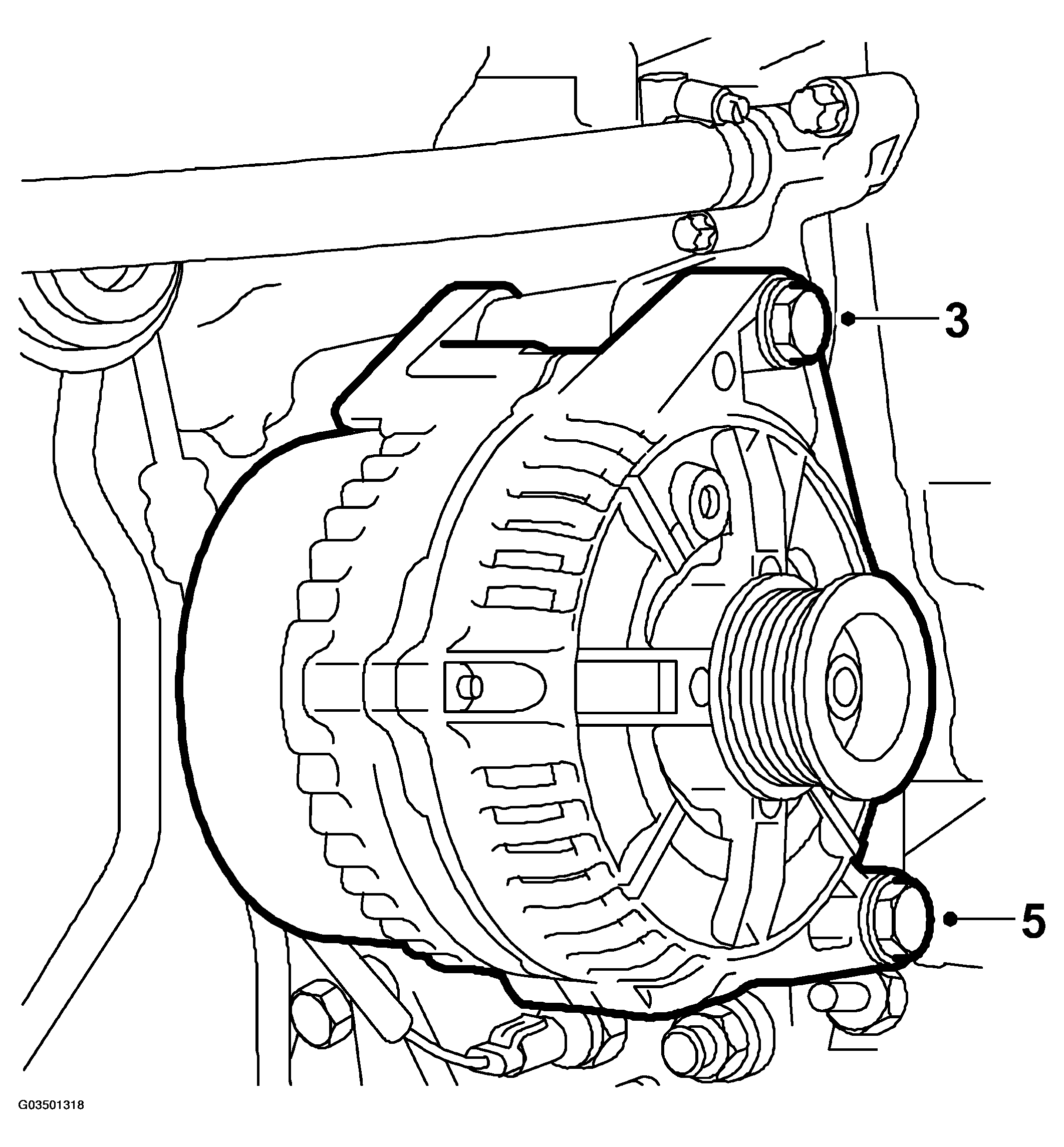

- Put the generator into position.
- Secure it with the upper bolt, without making it really tight.
- Raise the car.
- Fit the bolt of the lower bracket.
Tightening torque: 35 N.m (26 lbf ft).

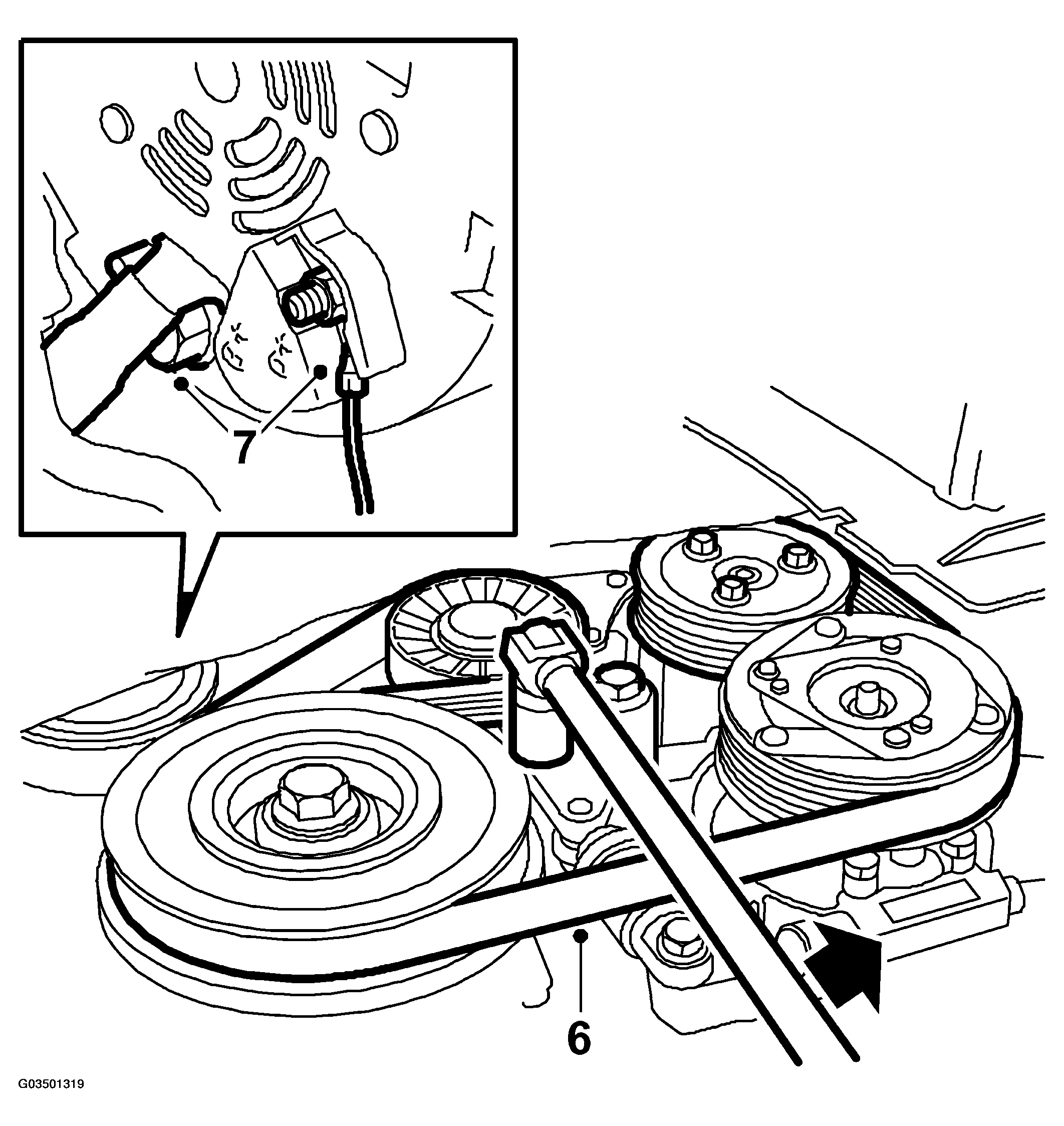

- Mount the belt, check its position on all pulleys and remove the tension reliever so that the belt is tensioned.
- Refit the generator's connecting cables.
- Fit the cover over the belt circuit.

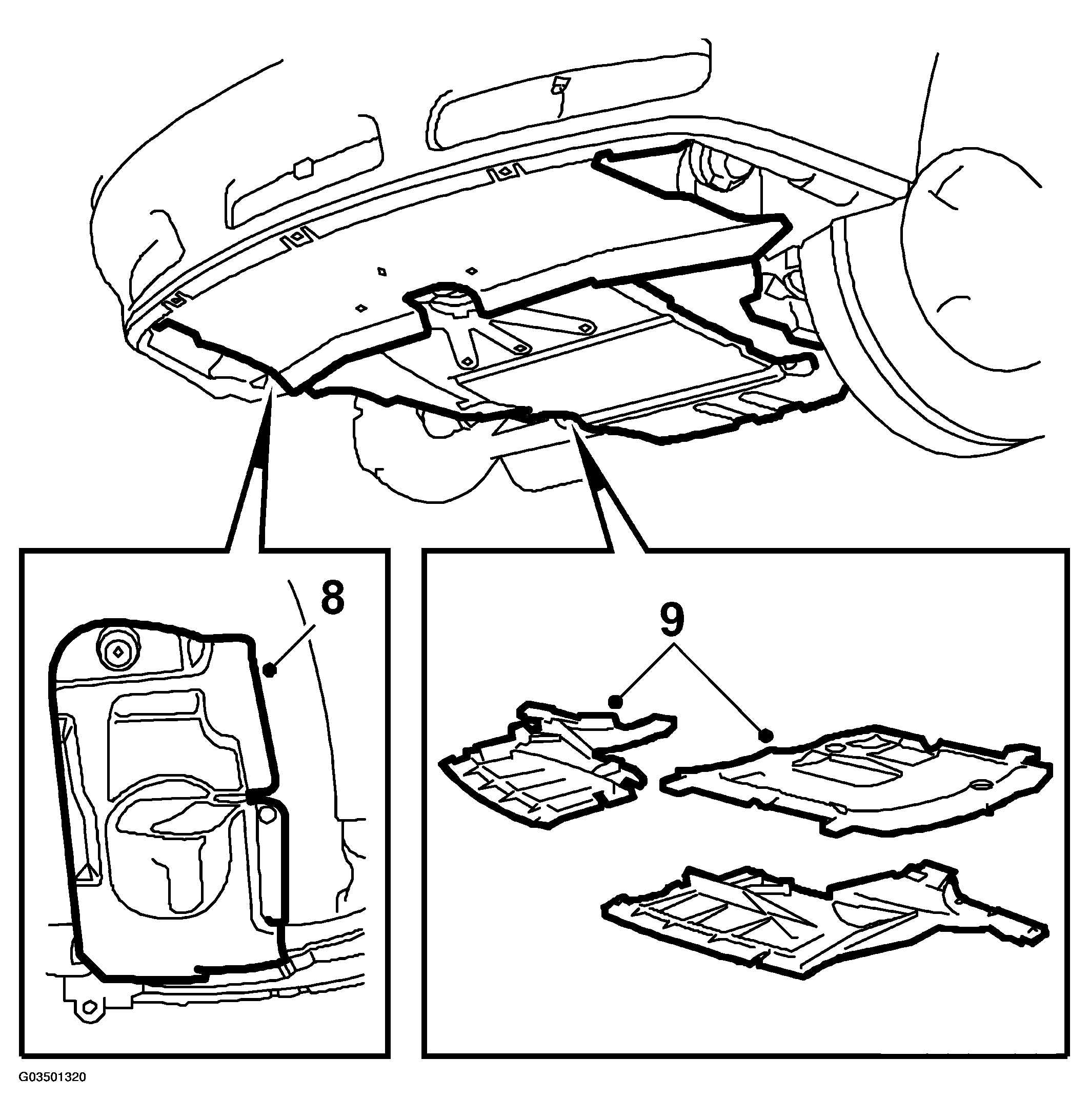

- Put the lower cover back into place.
- Lower the car.
- Make the upper bolt tight.
Tightening torque: 35 N.m (26 lbf ft).

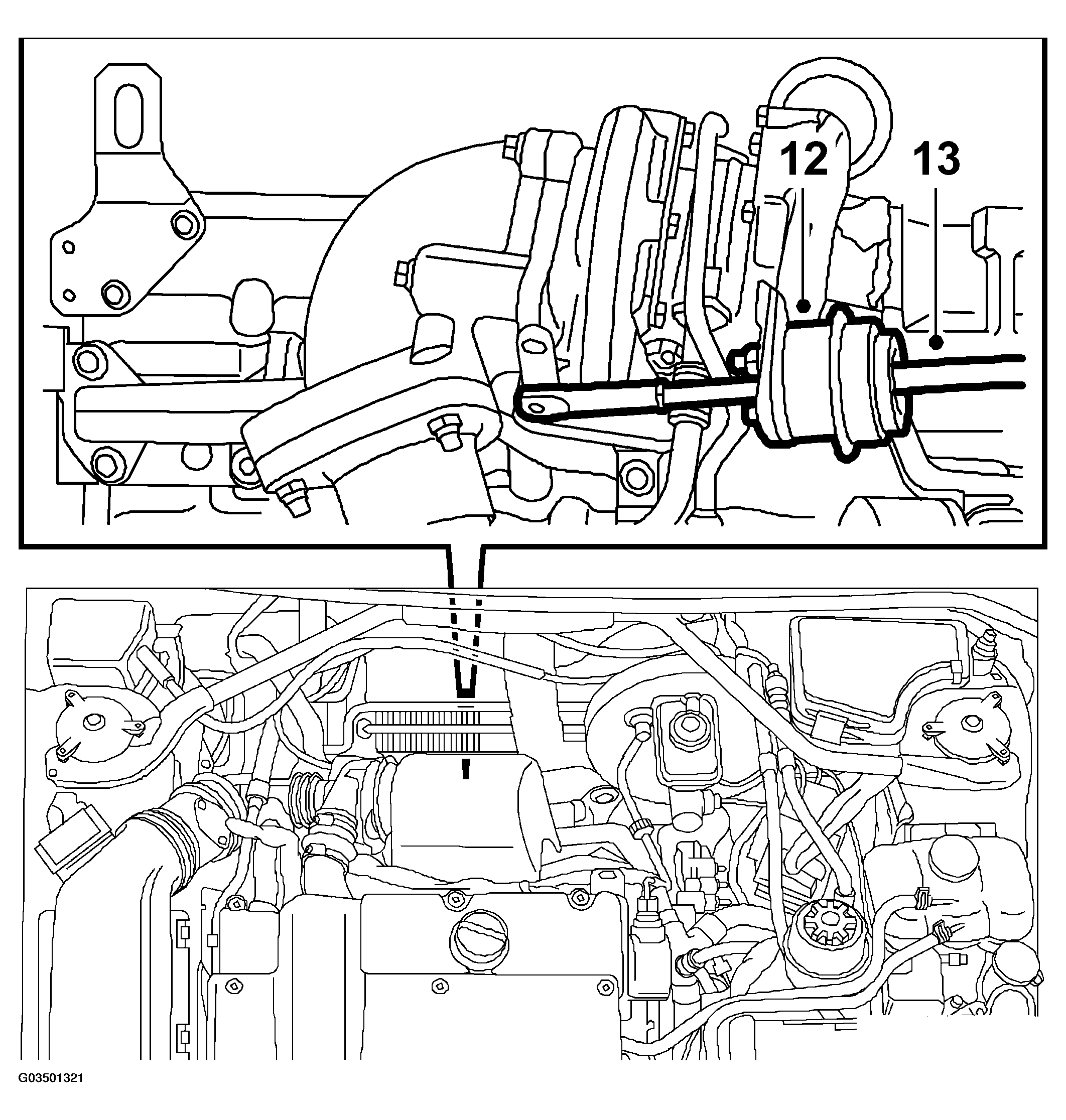

- Fit the control valve's wastegate.
- Connect the hose to the wastegate.

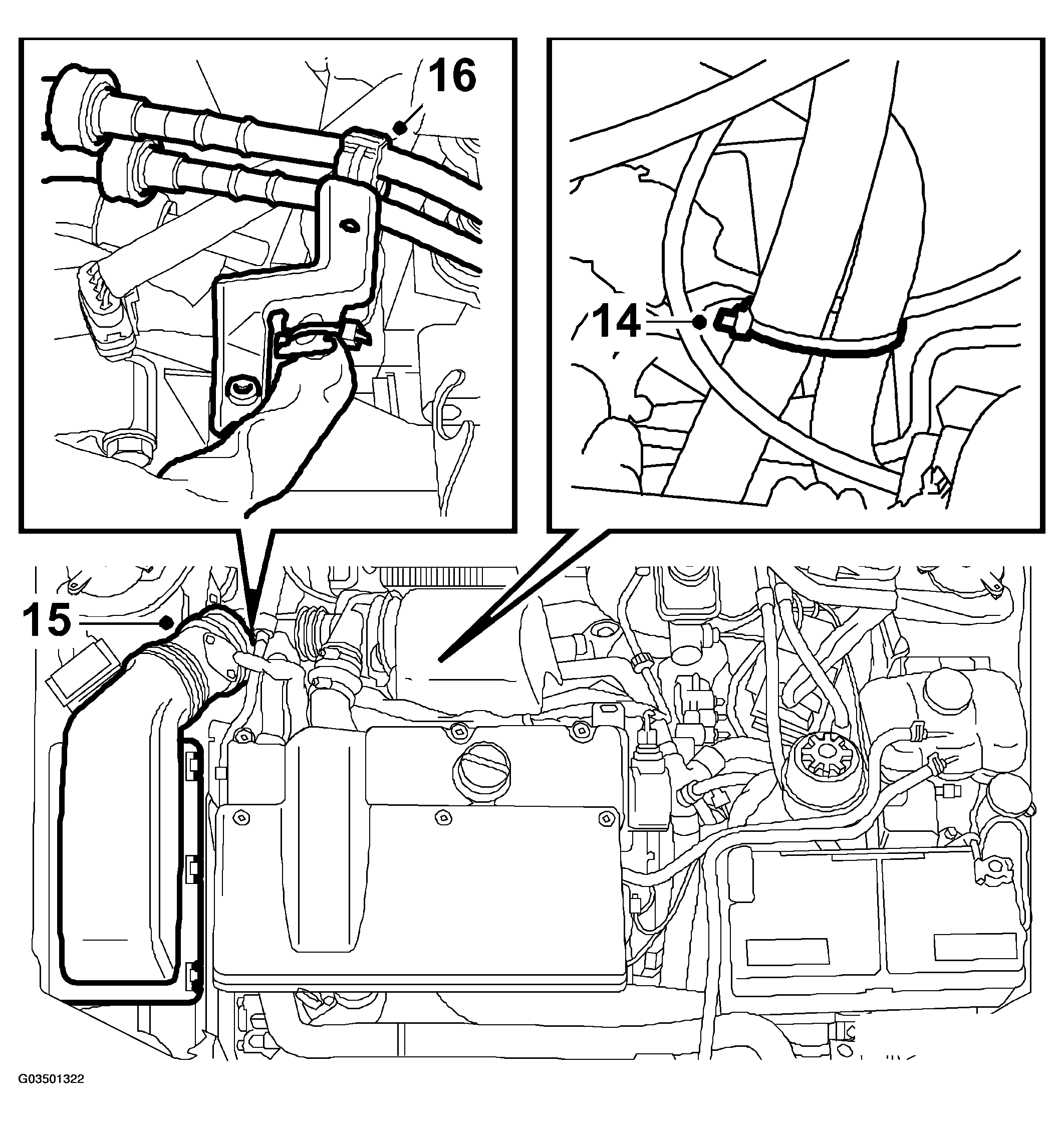

- Apply a new strap tie to hold the hoses of the supplementary heater.
- Replace the air hose with the mass air flow sensor between the air filter and the engine.
- Refit the fuel hoses.
- Connect the contact housing to the mass air flow sensor.
- Connect the battery's negative cable.
- Set the clock and program in the radio code if any.
