Component Location
›
Grounding point G25
›
Components Connected:
Components Connected:
GROUNDING POINT COMPONENTS CONNECTION SPECIFICATIONS (G25)
1
Battery
The redundancy ground from the front left wheel housing is also connected.

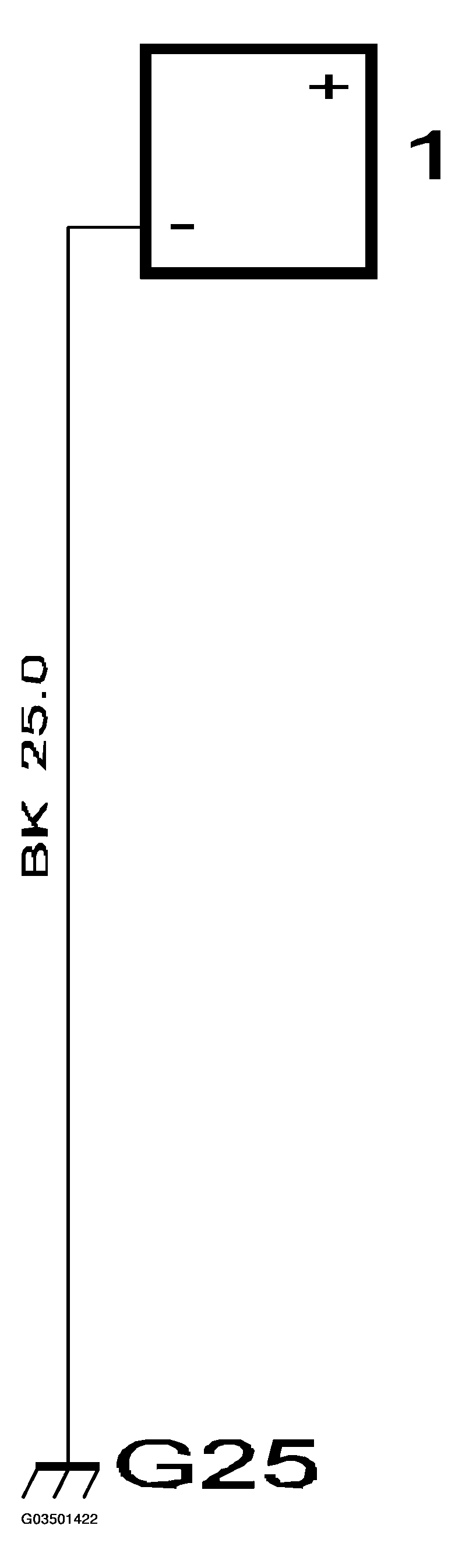

Fig 1: Electrical Grounding Connection Diagram (G25)
